CMP Sensor Connector End View
CMP Sensor Connector End View

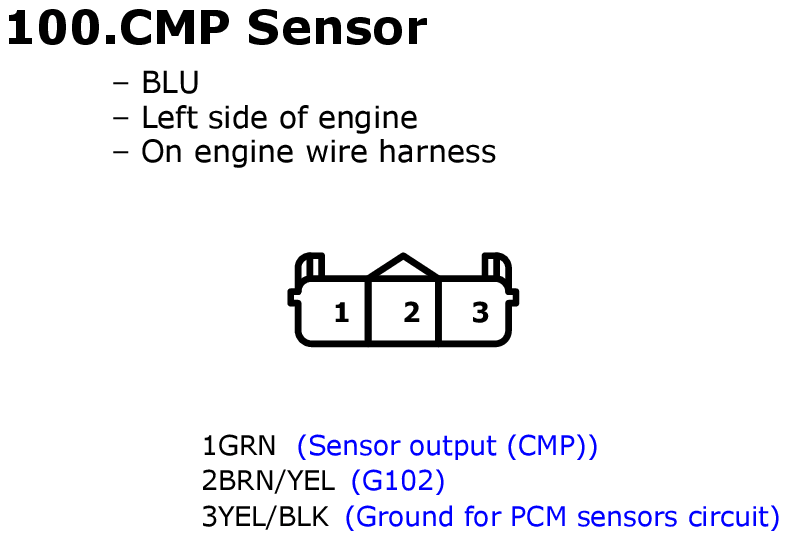

Fig 1: CMP Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 1: CMP Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
