CMP Sensor (Si) Connector End View

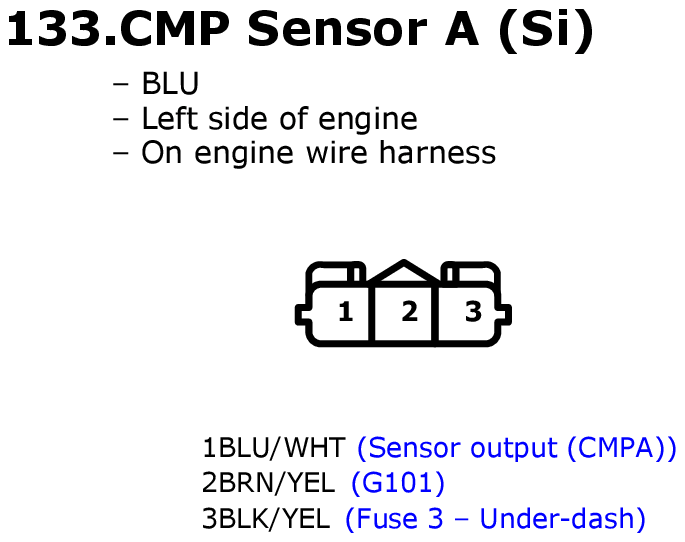

Fig 1: CMP Sensor (Si) Connector End View
GHHW1607Courtesy of AMERICAN HONDA MOTOR CO., INC.


Fig 1: CMP Sensor (Si) Connector End View
GHHW1608Courtesy of AMERICAN HONDA MOTOR CO., INC.


Fig 1: CMP Sensor (Si) Connector End View
GHHW1911Courtesy of AMERICAN HONDA MOTOR CO., INC.

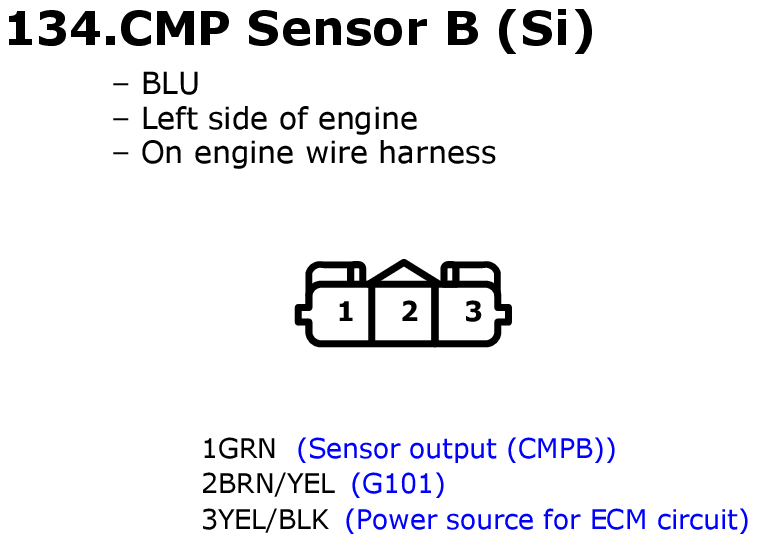

Fig 1: CMP Sensor (Si) Connector End View
GHHW1912Courtesy of AMERICAN HONDA MOTOR CO., INC.
