CKP Sensor Connector End View

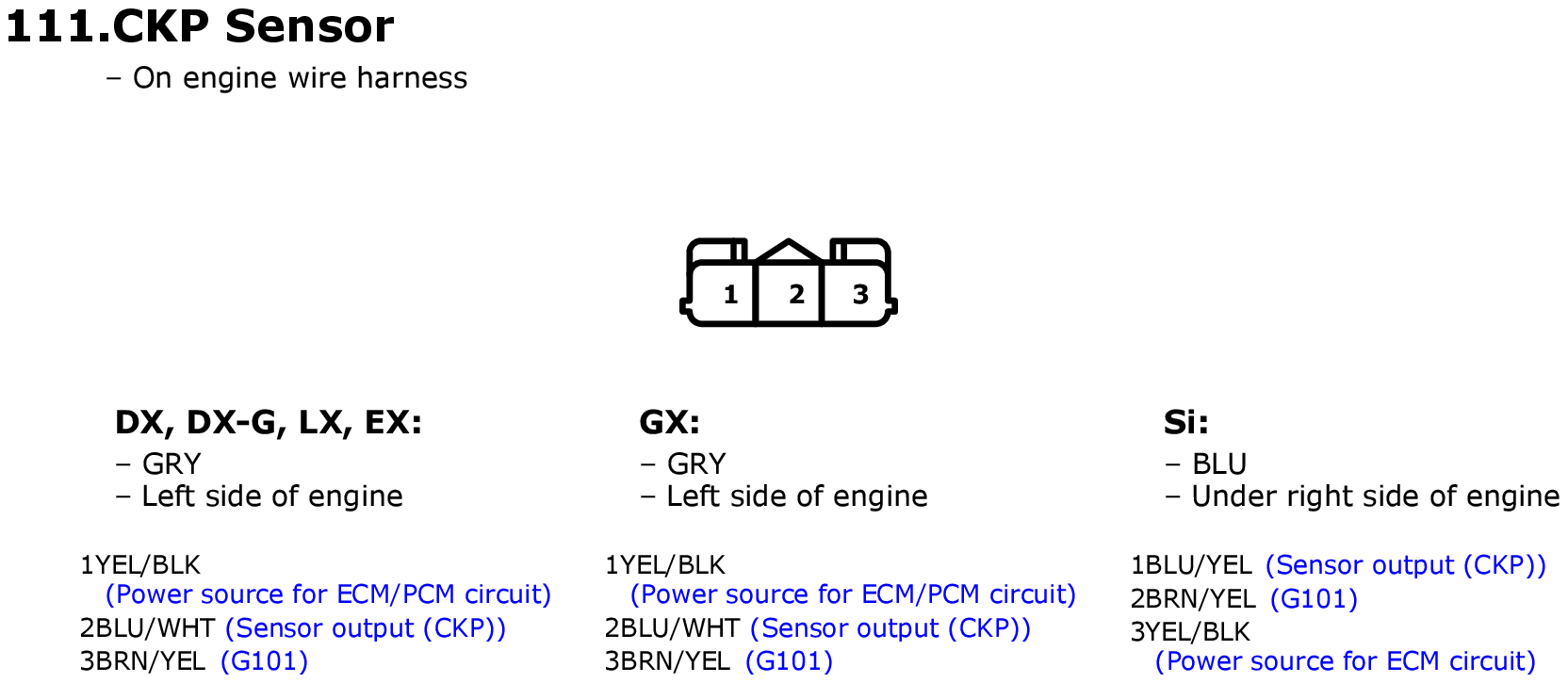

Fig 1: CKP Sensor Connector End View
GHHW1033Courtesy of AMERICAN HONDA MOTOR CO., INC.

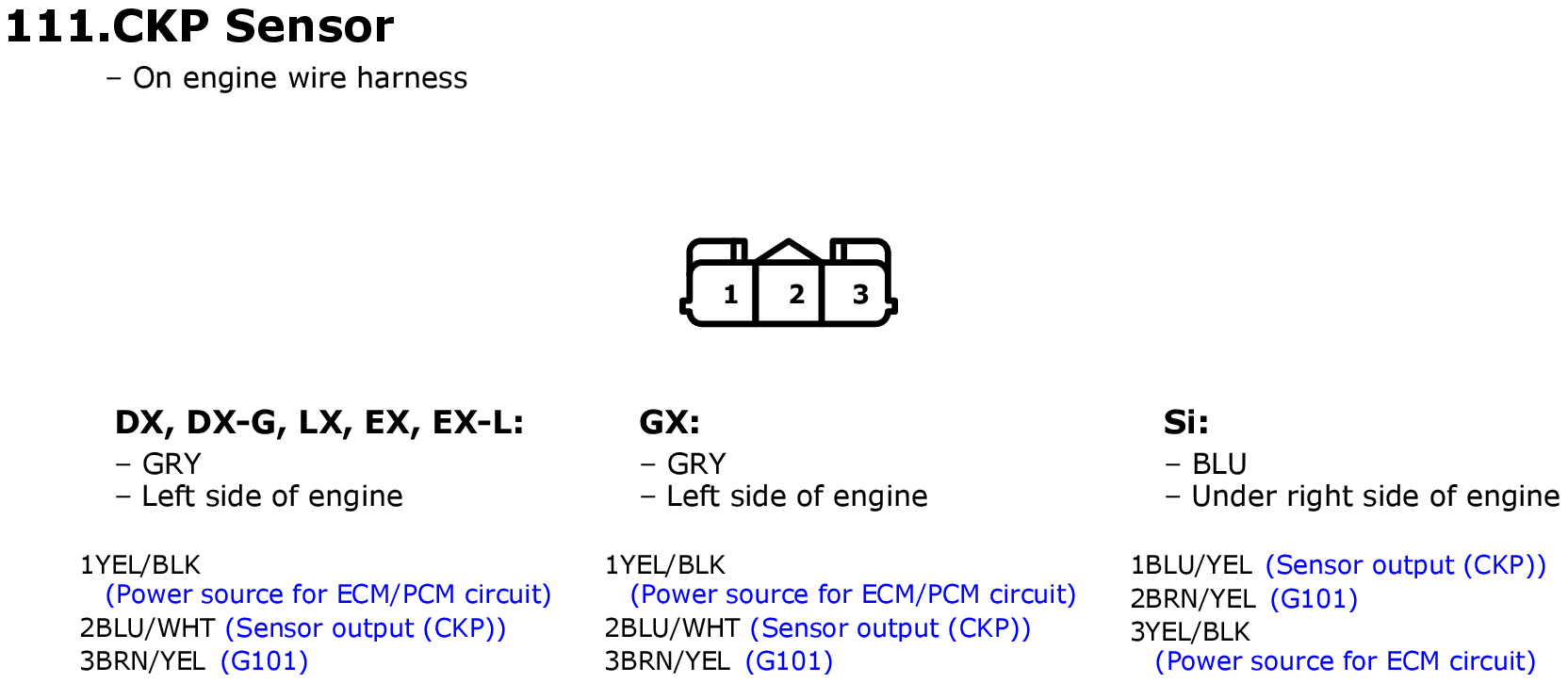

Fig 1: CKP Sensor Connector End View
GHHW1307Courtesy of AMERICAN HONDA MOTOR CO., INC.

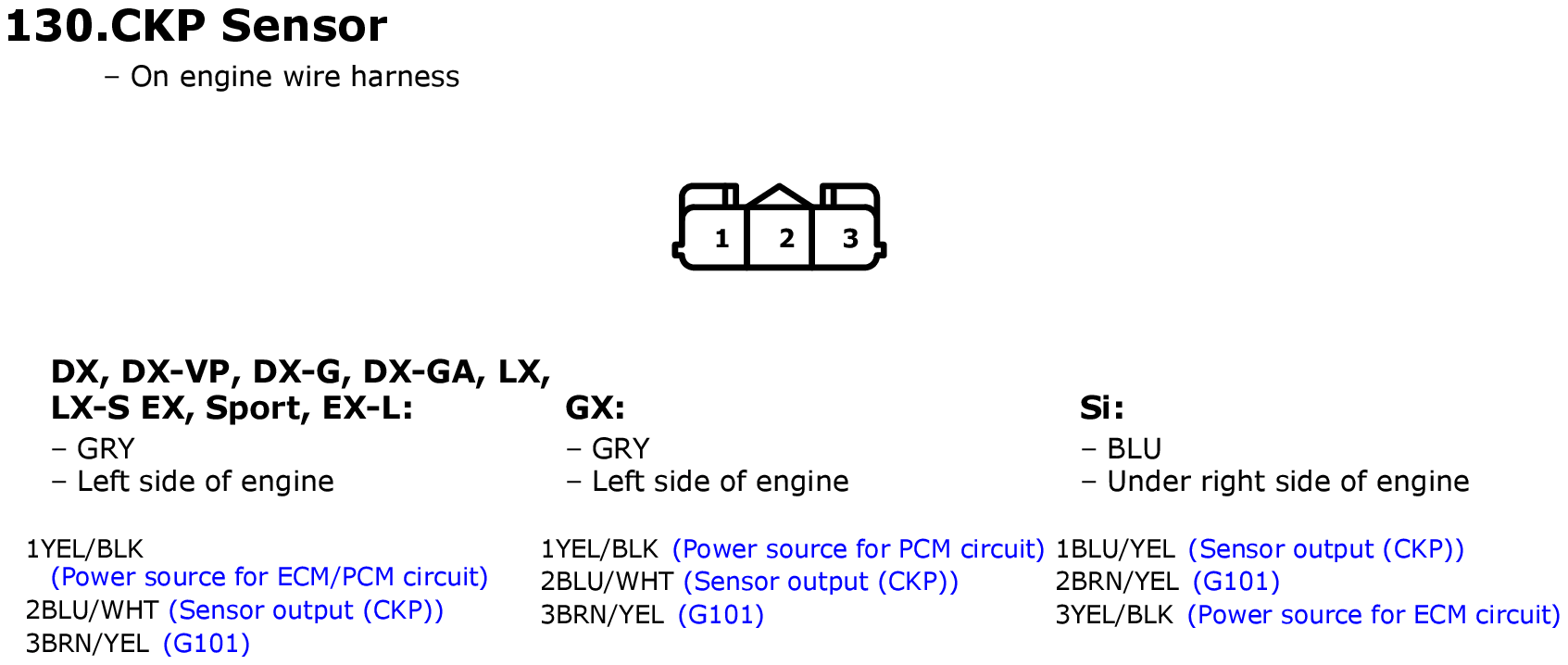

Fig 1: CKP Sensor Connector End View
GHHW1604Courtesy of AMERICAN HONDA MOTOR CO., INC.

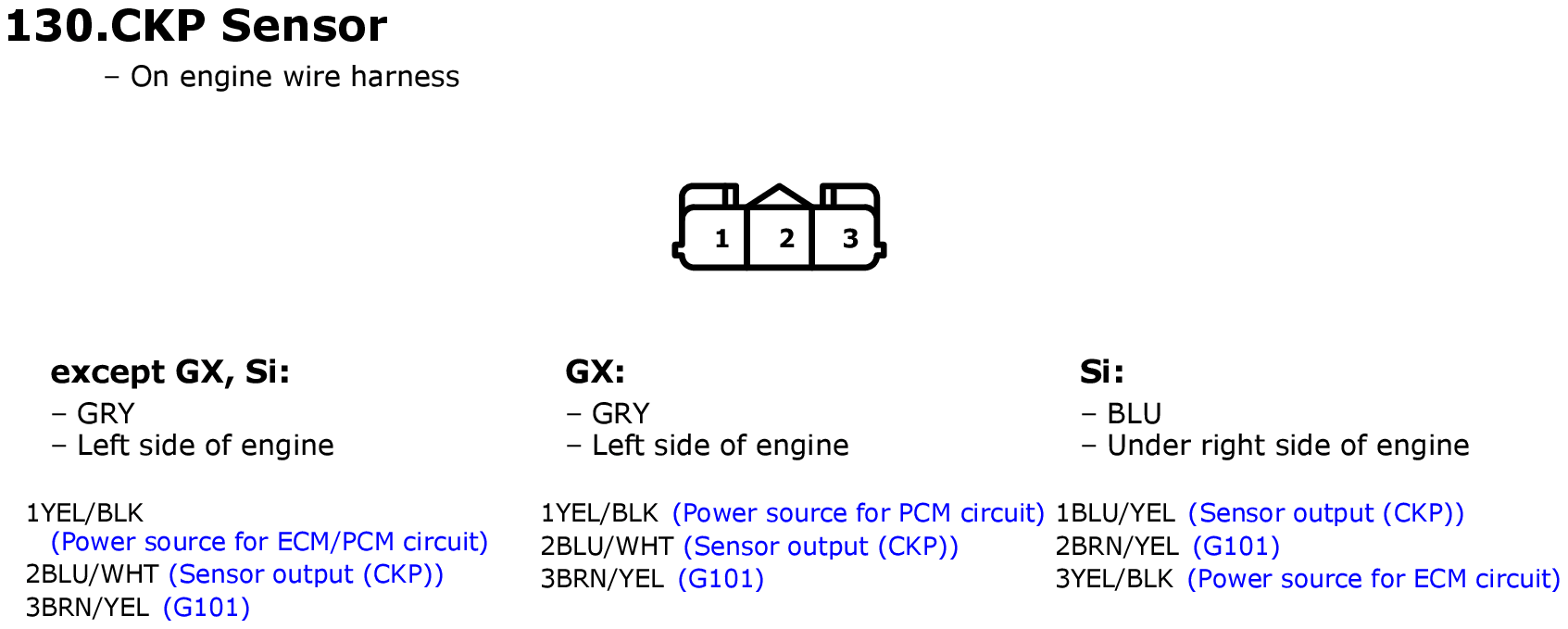

Fig 1: CKP Sensor Connector End View
GHHW1908Courtesy of AMERICAN HONDA MOTOR CO., INC.

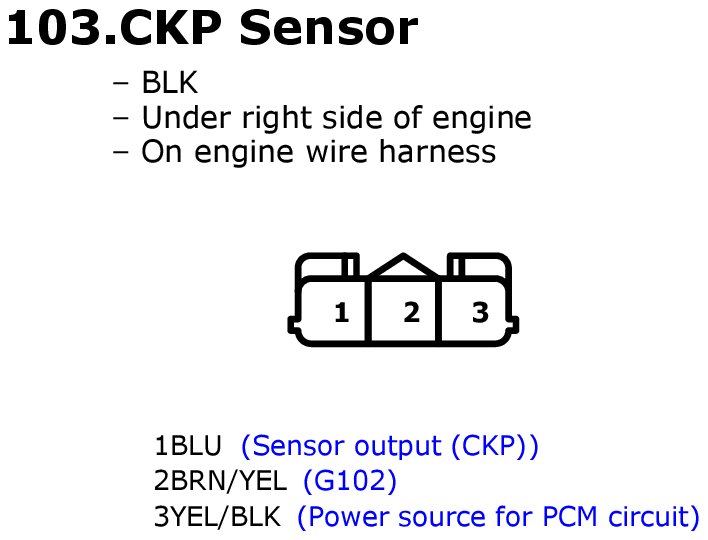

Fig 1: CKP Sensor Connector End View
GHHW2191Courtesy of AMERICAN HONDA MOTOR CO., INC.

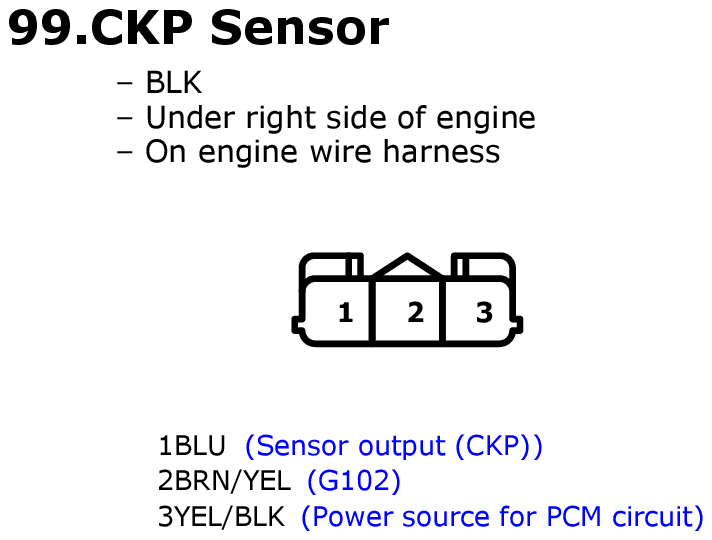

Fig 1: CKP Sensor Connector End View
GHHW2438Courtesy of AMERICAN HONDA MOTOR CO., INC.
