Brake Fluid Level Switch Connector End View
Brake Fluid Level Switch Connector End View

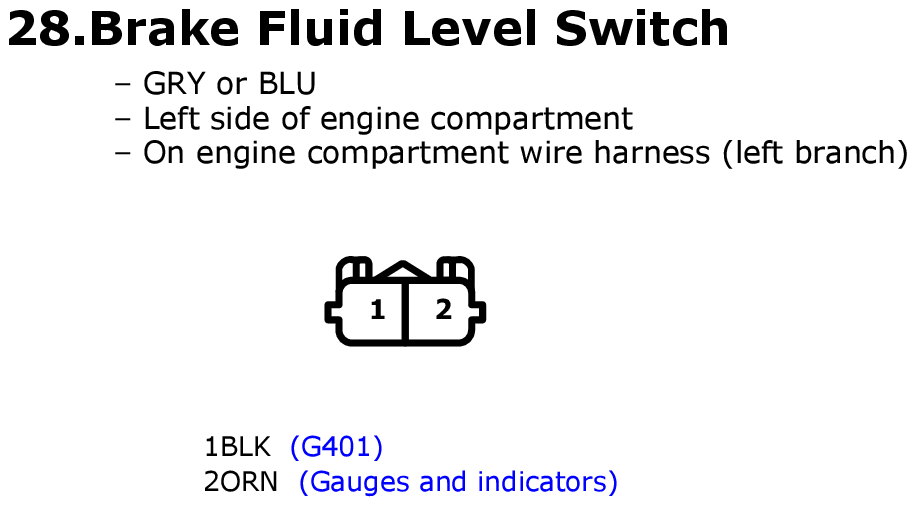

Fig 1: Brake Fluid Level Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

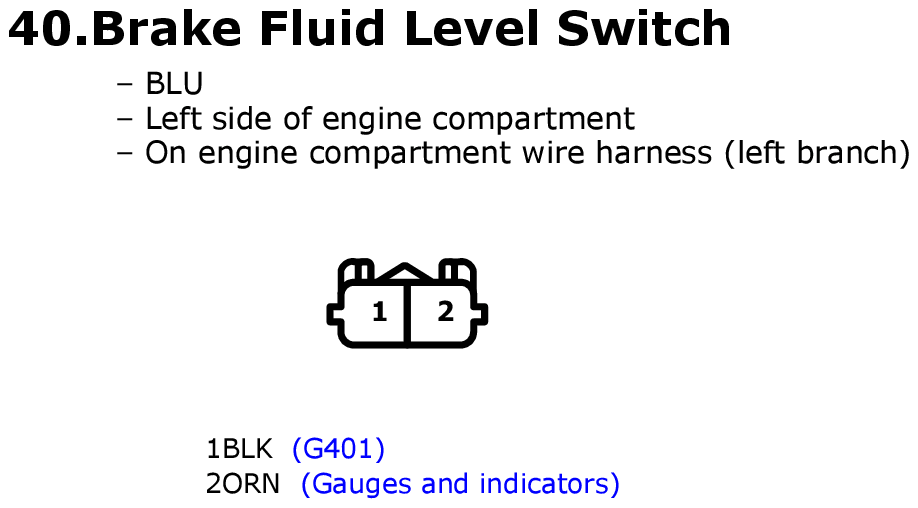

Fig 1: Brake Fluid Level Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

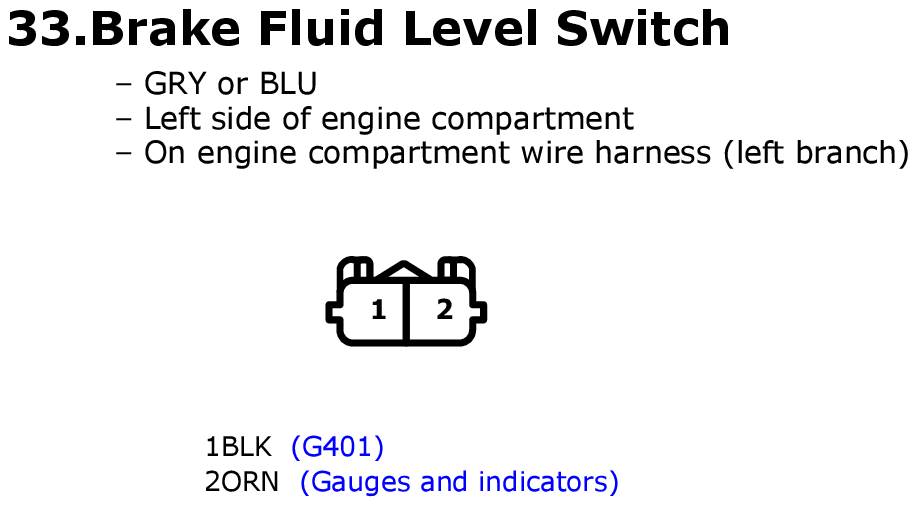

Fig 1: Brake Fluid Level Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 1: Brake Fluid Level Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
