Alternator Connector End View
Alternator Connector End View

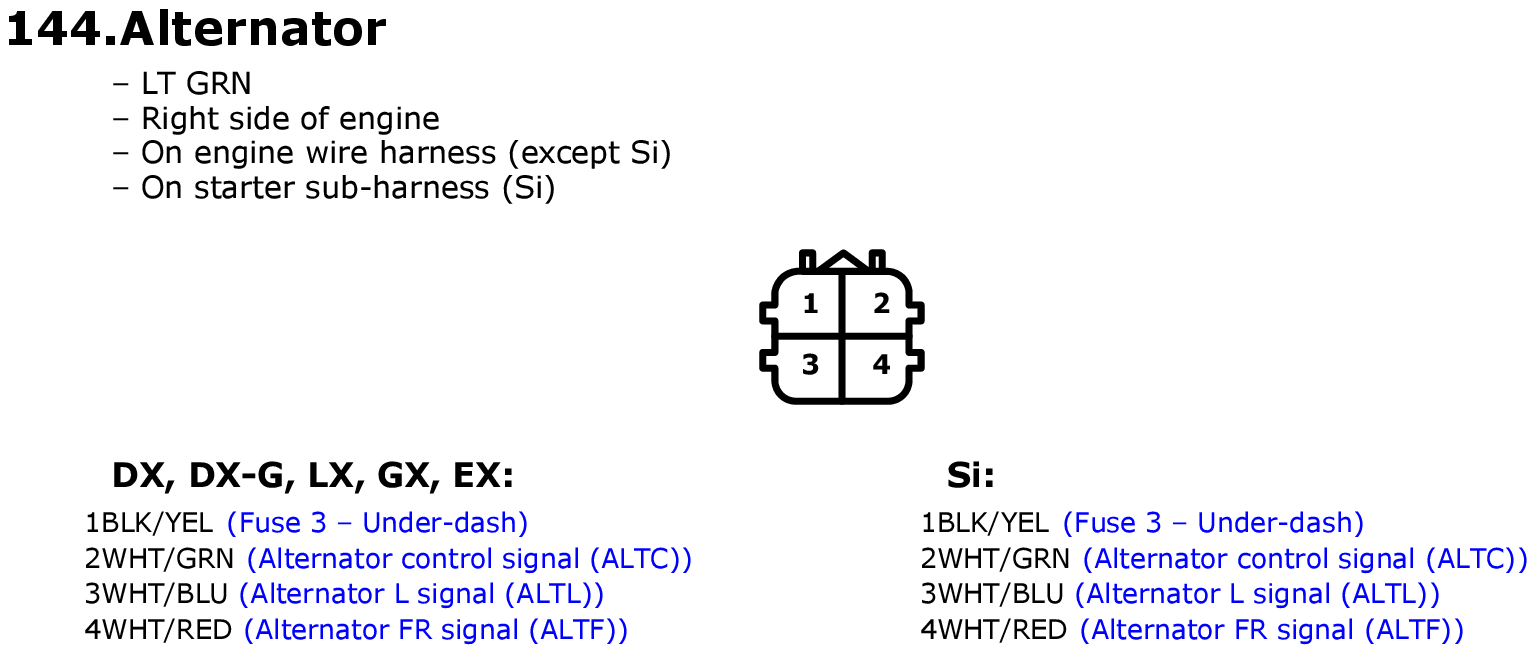

Fig 1: Alternator Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

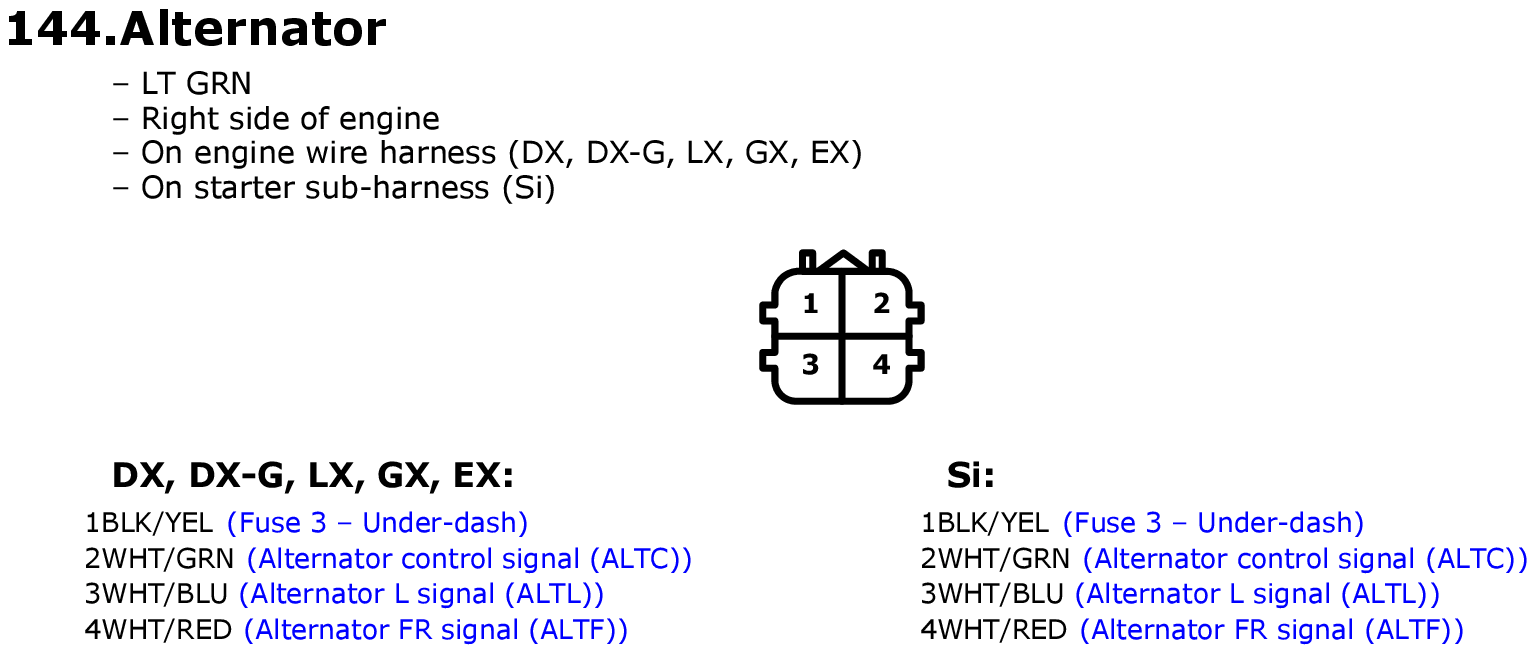

Fig 1: Alternator Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

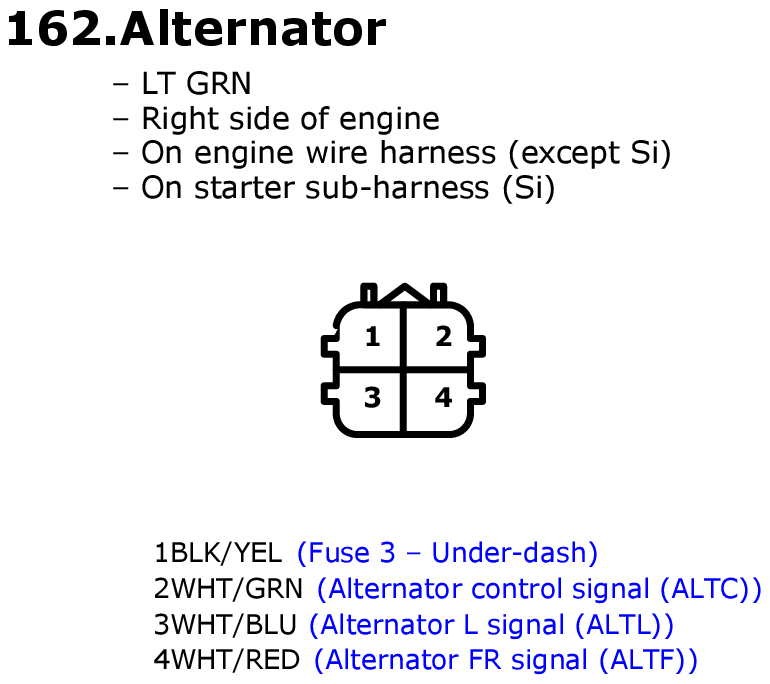

Fig 1: Alternator Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 1: Alternator Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
