ABS Modulator-Control Unit (except '07 Si) Connector End View

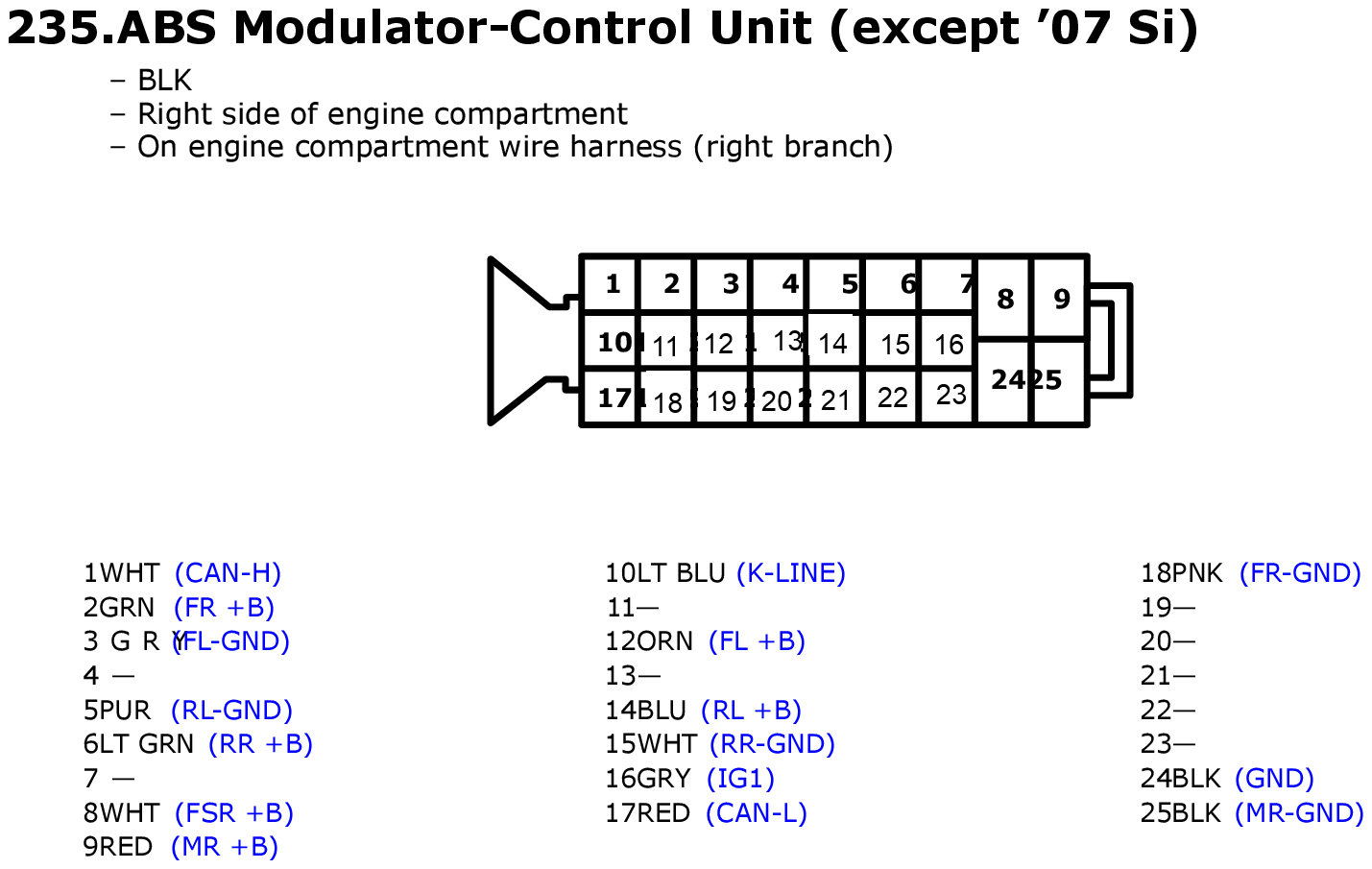

Fig 1: ABS Modulator-Control Unit (except '07 Si) Connector End View

GHHW1154

Courtesy of AMERICAN HONDA MOTOR CO., INC.
