A/C Compressor Driver Connector End View

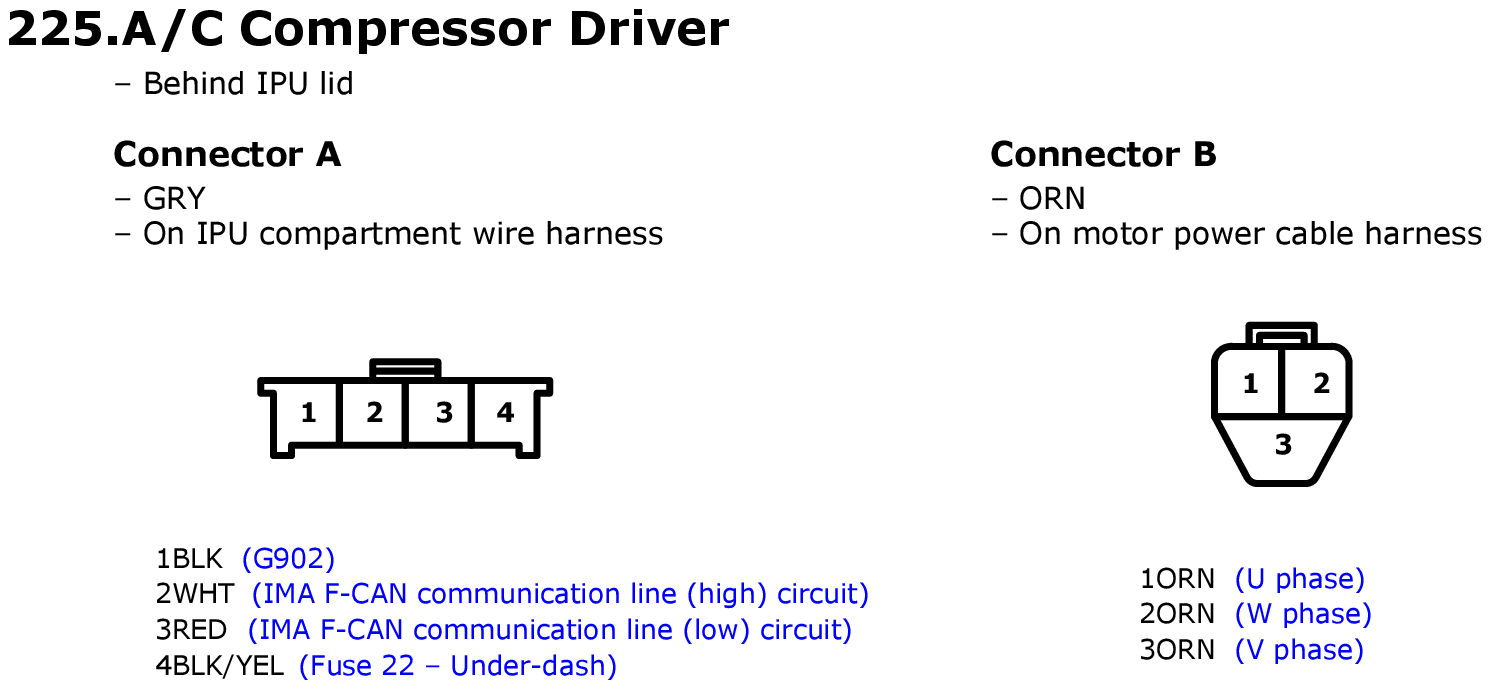

Fig 1: A/C Compressor Driver Connector End View
GHHW2313Courtesy of AMERICAN HONDA MOTOR CO., INC.


Fig 1: A/C Compressor Driver Connector End View
GHHW2574Courtesy of AMERICAN HONDA MOTOR CO., INC.
