A/C Compressor Connector End View
A/C Compressor Connector End View

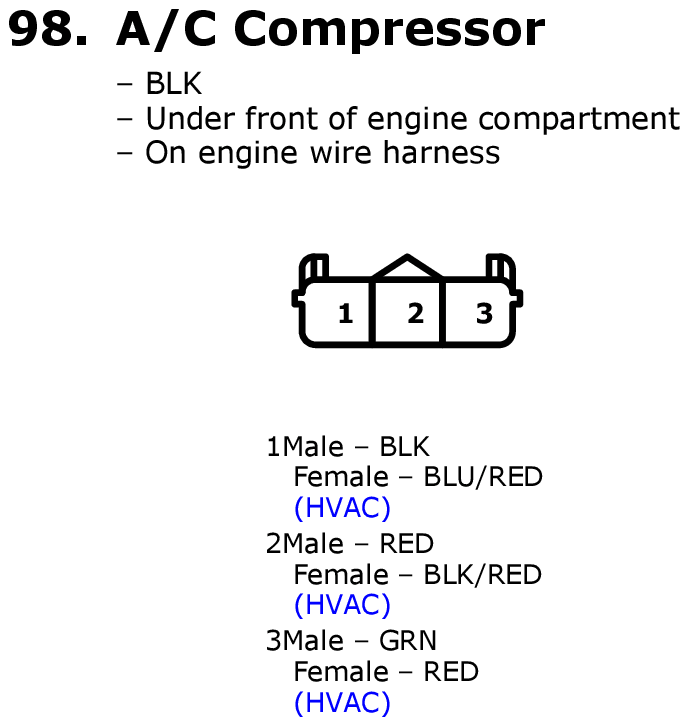

Fig 1: A/C Compressor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

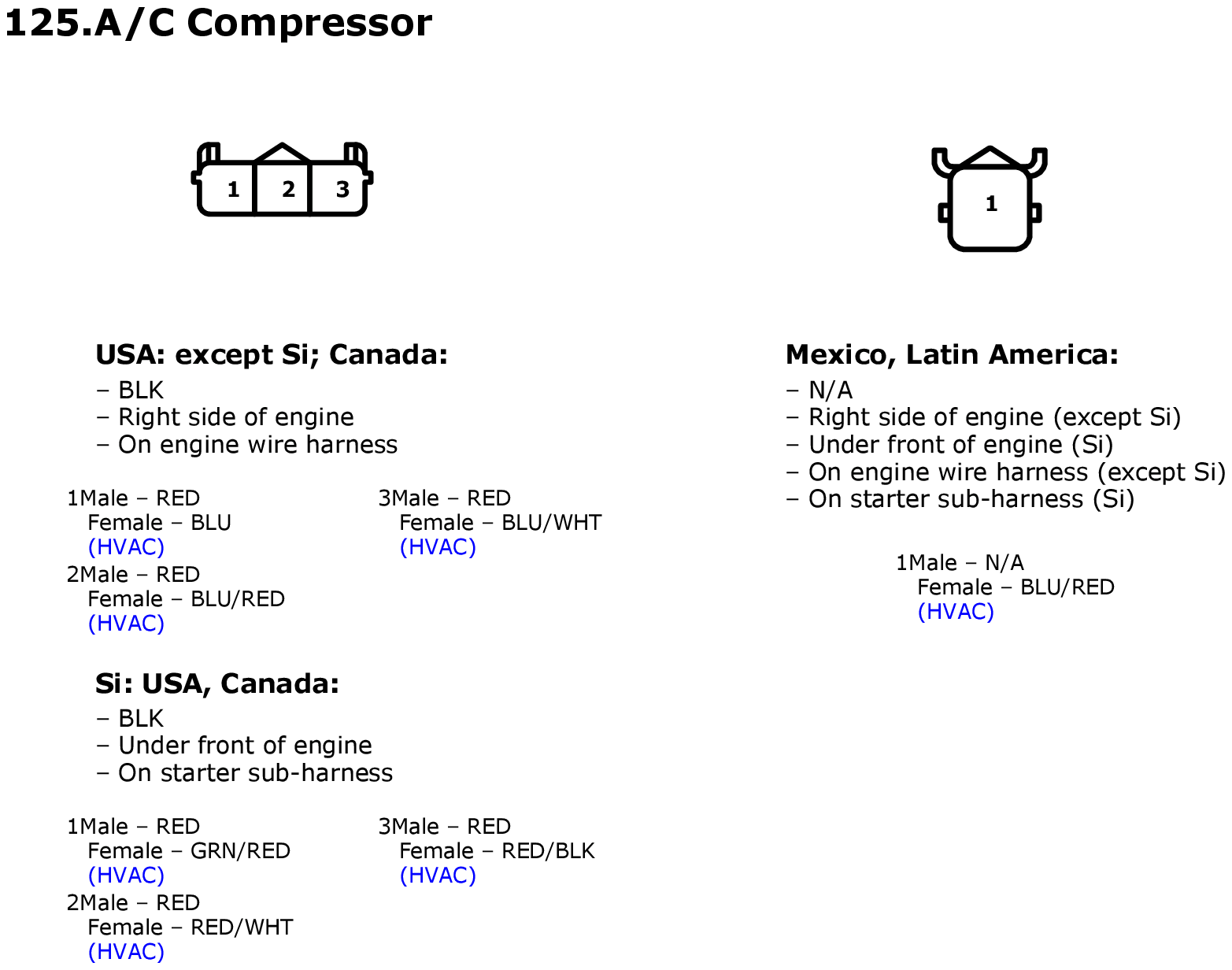

Fig 1: A/C Compressor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

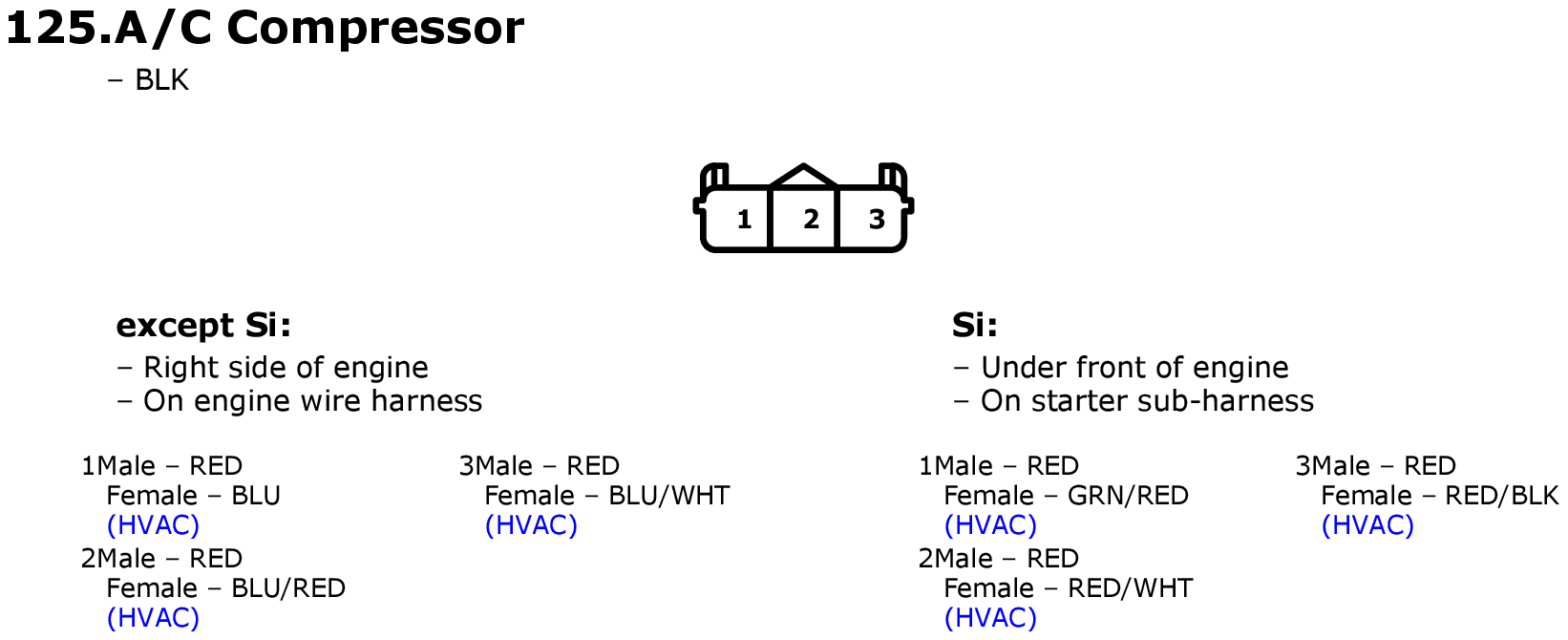

Fig 1: A/C Compressor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

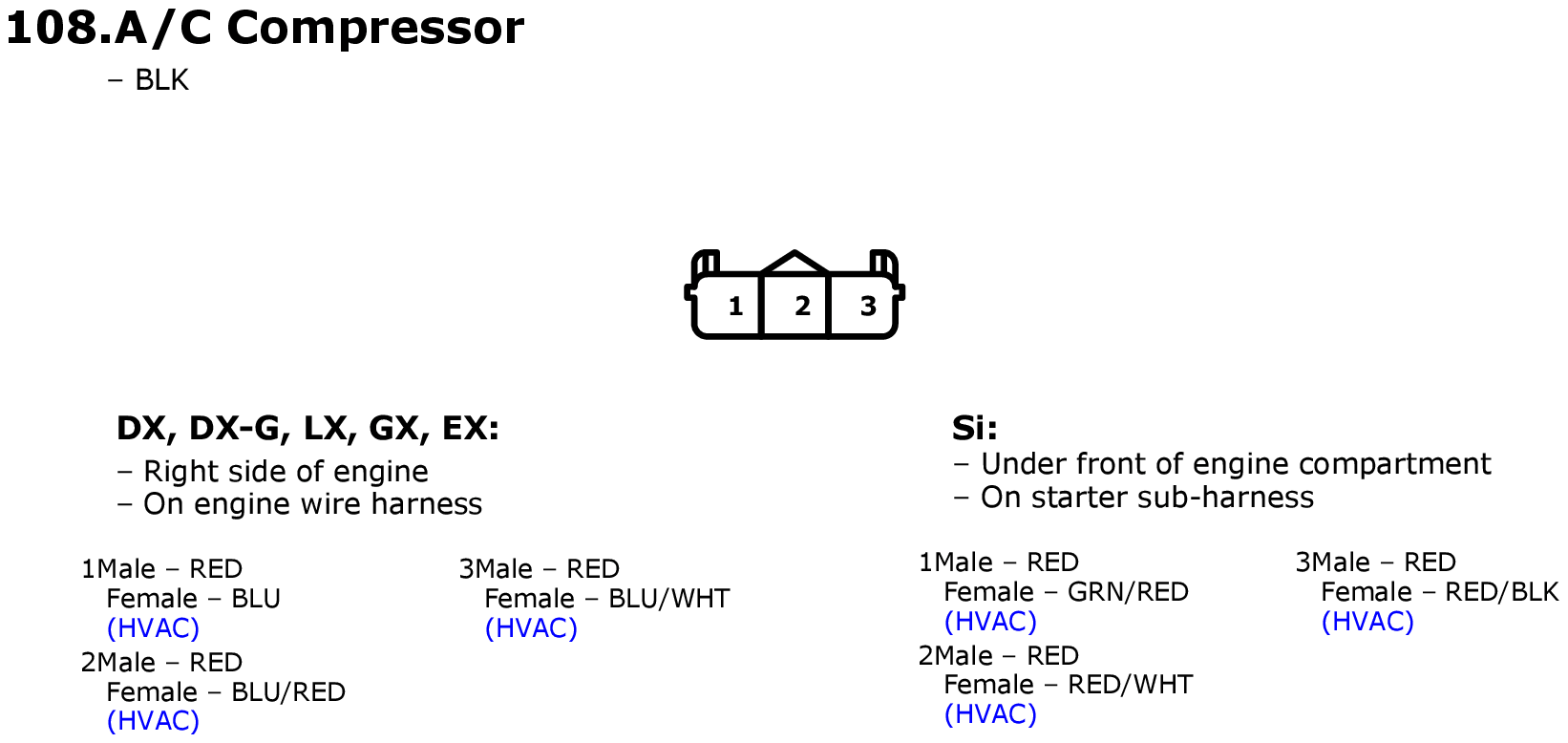

Fig 1: A/C Compressor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
