CKP Sensor Replacement

  1. Disconnect the CKP sensor 3P connector (A).

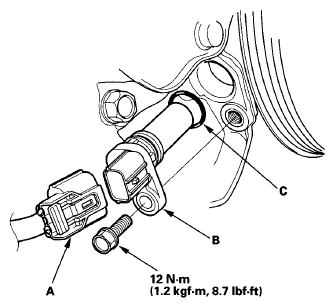

    Fig 1: Identifying CKP Sensor 3P Connector And CKP Sensor
    G06273277Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the CKP sensor (B).
  3. Install the parts in the reverse order of removal with a new O-ring (C).
  4. Do the CKP pattern clear/CKP pattern learn procedure with the HDS (see CKP PATTERN CLEAR/CKP PATTERN LEARN ).
