Intake Air Resonator Removal/Installation
- Make sure you have the anti-theft code for the audio system and the navigation system (if equipped).
- Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION
).

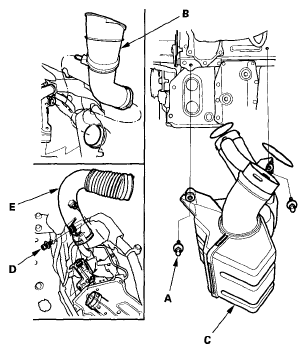

- Remove the bolt (A), and pipe (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the resonator (C).
- Remove the battery (see BATTERY REMOVAL AND INSTALLATION
).
- Remove the bolt (D), and duct (E).
- Install the parts in the reverse order of removal.
- Reinstall the battery, and do these items:
- Enter the anti-theft code for the audio system and the navigation system (if equipped).
- Set the clock (if needed).
