Air Cleaner Removal/Installation

  1. Disconnect the MAF sensor/IAT sensor connector (A).

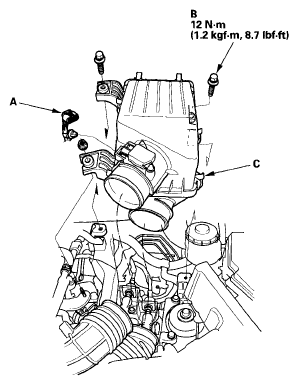

    Fig 1: Identifying MAF Sensor/IAT Sensor Connector And Air Cleaner
    G04666156Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the bolts (B), then remove the air cleaner (C).
  3. Install the parts in the reverse order of removal.
