Component Location Index

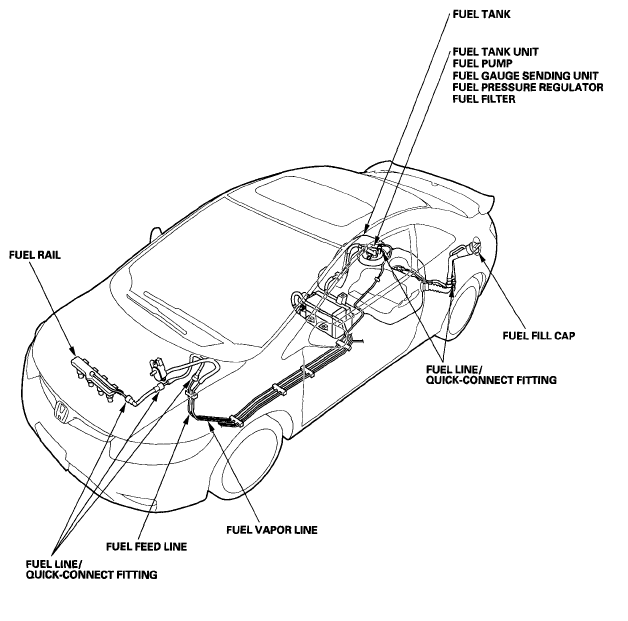

Fig 1: Identifying Fuel Supply System Component Location (1 Of 2)
G04666089Courtesy of AMERICAN HONDA MOTOR CO., INC.

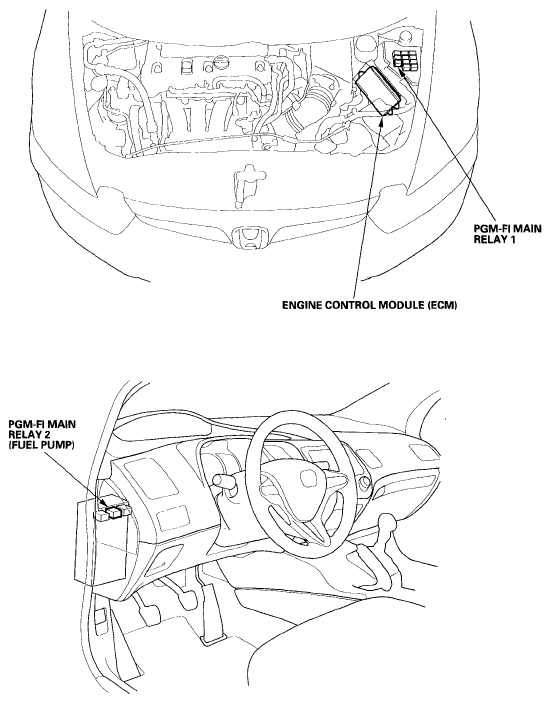

Fig 2: Identifying Fuel Supply System Component Location (2 Of 2)
G04666090Courtesy of AMERICAN HONDA MOTOR CO., INC.
