Passenger's Power Window Switch Test/Replacement

4-door: Remove the passenger's switch (A).
2-door: Remove the passenger's switch (see DOOR PANEL REMOVAL/INSTALLATION ).

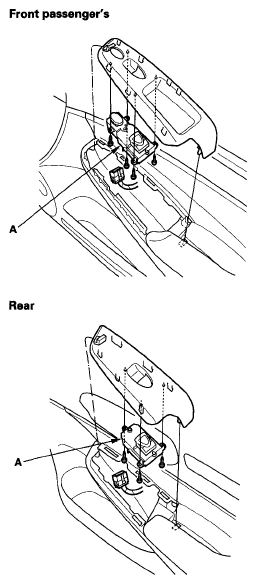

Fig 1: Removing/Installing Passenger's Switch
Courtesy of HONDA

NOTE: 4-door front passenger's door shown.

Fig 2: Identifying 4-Door Front Passenger Door Connector
Courtesy of HONDA
Check for continuity between the terminals in each switch position according to Fig 3 .

Fig 3: Checking Continuity Between Passenger's Power Window Switch Table
Courtesy of HONDA
Connect battery power to the No. 4 terminal and ground the No. 7 (or No. 8) terminal. The switch light should come on.
If the continuity or switch light tests is not as specified, remove the screws and replace the switch.
Install the switch in the reverse order of removal.
