Component Location Index

4-door

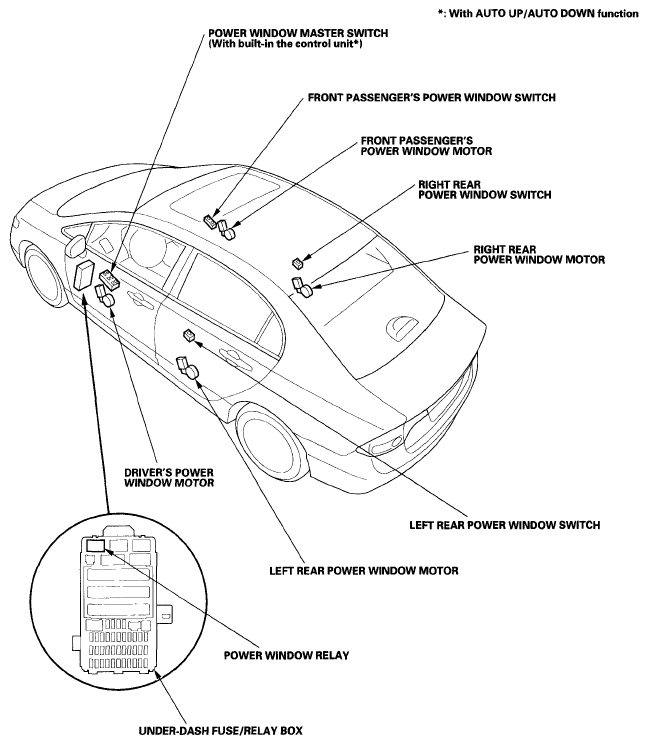

Fig 1: Locating Power Windows Components (4-Door)
G04668891Courtesy of HONDA

2-door

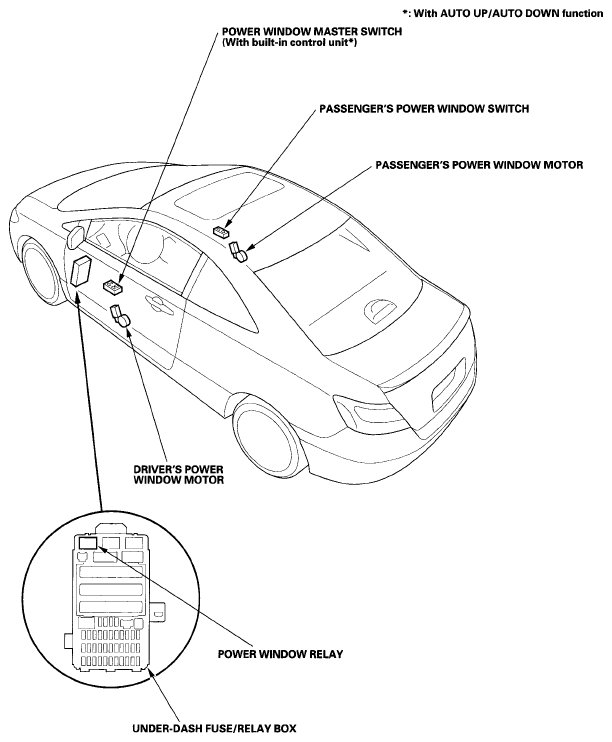

Fig 2: Locating Power Windows Components (2-Door)
G04668892Courtesy of HONDA
