Stabilizer Bar Replacement
- Raise the front of the vehicle, and support it with safety stands in the proper locations (see
LIFT AND SUPPORT POINTS
).
- Disconnect the stabilizer links from the stabilizer bar on the right and left sides (see STABILIZER LINK REMOVAL/INSTALLATION
).
- Remove the front suspension subframe (A) from the body (see
FRONT SUBFRAME REPLACEMENT
).
Courtesy of AMERICAN HONDA MOTOR CO., INC.

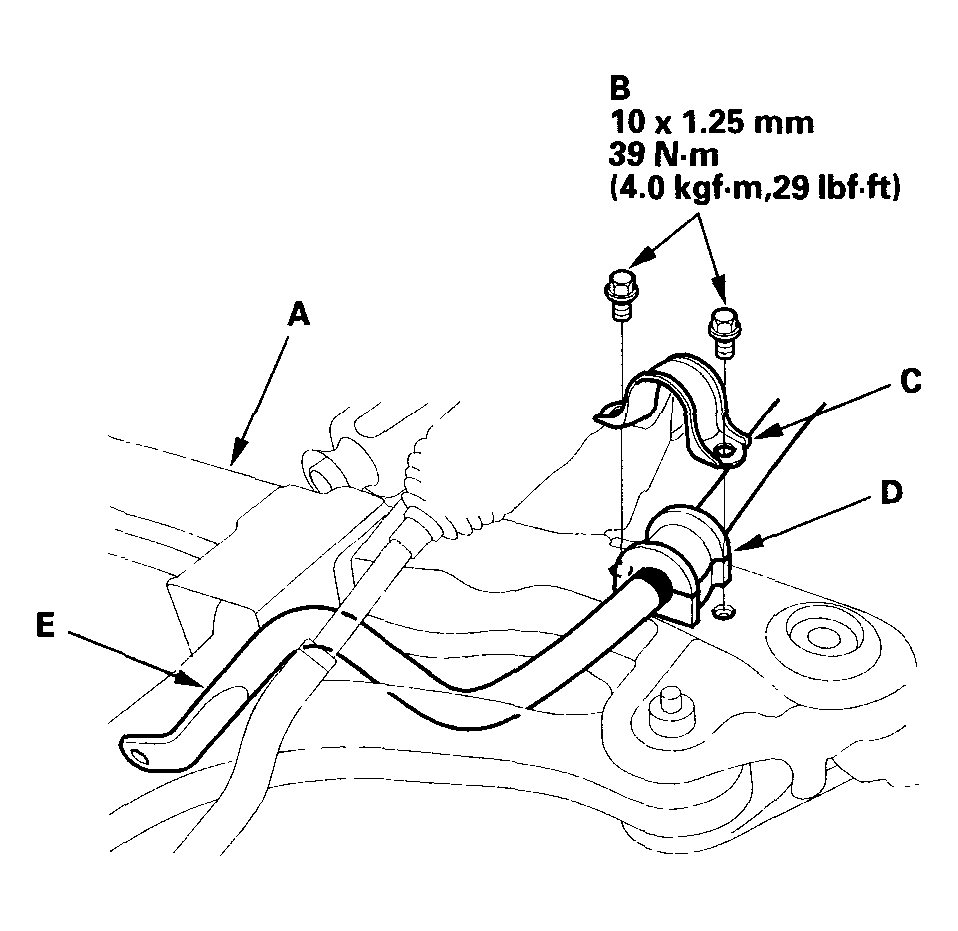

- Remove the flange bolts (B) and bushing holders (C), then remove the bushings (D) and the stabilizer bar (E).
- Install the stabilizer bar in the reverse order of removal, and note these items:
- Note the right and left direction of the stabilizer bar.

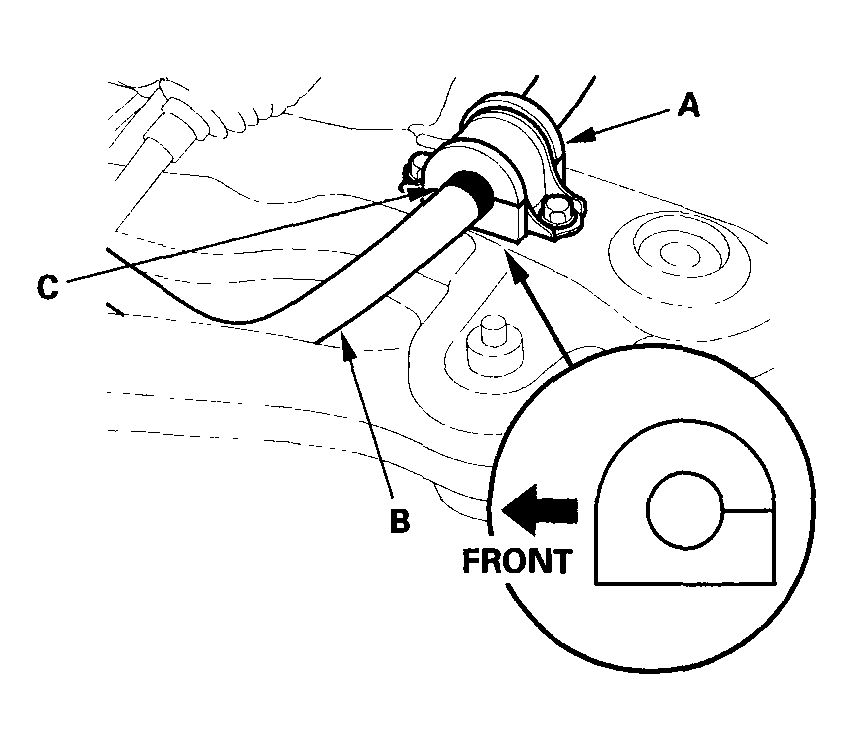

- Do not set the bushing (A) on the bent or curved part of the stabilizer bar (B).
- Align the ends of the paint marks (C) on the stabilizer bar with each end of the bushings.
- Note the fore/aft direction of the bushing holders.
- Refer to STABILIZER LINK REPLACEMENT to connect the stabilizer bar to the links (see STABILIZER LINK REMOVAL/INSTALLATION
).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
