Damper/Spring Replacement: Disassembly/Inspection

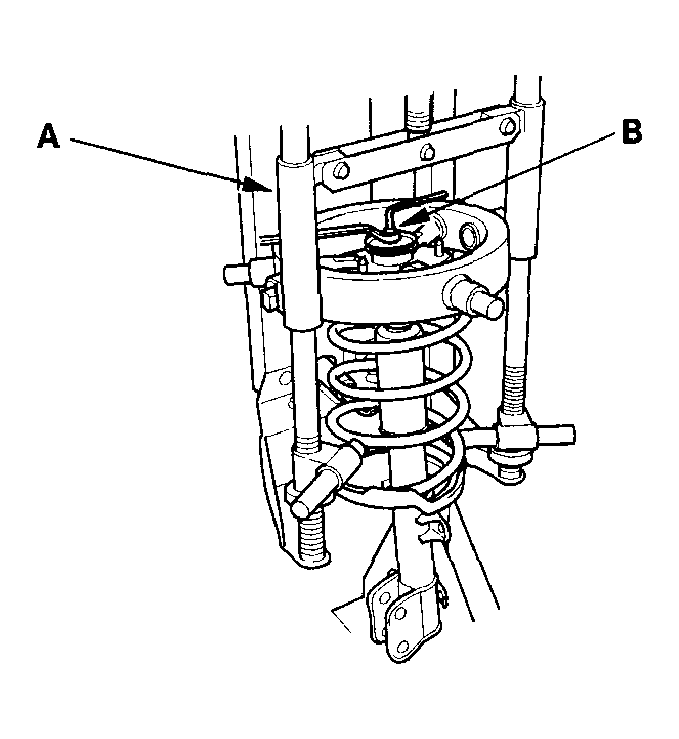

- Compress the damper spring with commercially available strut spring compressor (A) according to the manufacturer's instructions, then remove the self-locking nut (B). Do not compress the spring more than necessary to remove the nut.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Release the pressure from the strut spring compressor, then disassemble the damper as shown in the Exploded View.
- Reassemble all parts, except for the spring.

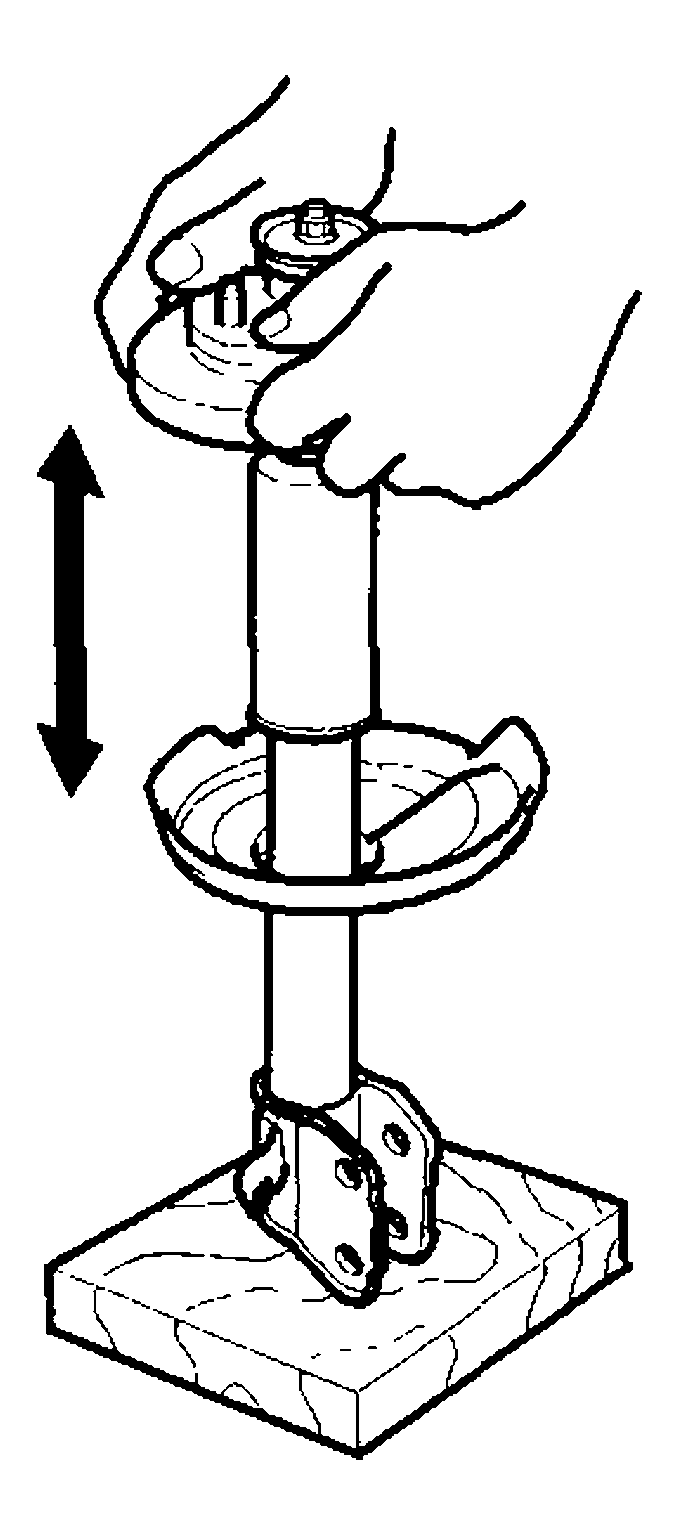

- Compress the damper assembly by hand, and check for smooth operation through a full stroke, both compression and extension. The damper should extend in a smooth, continuous motion when the compression is released. If it does not (no compression or no extension), the gas is leaking, and the damper should be replaced.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Check for oil leaks, abnormal noises, or binding during these tests.
