Immobilizer System
>>
Circuit Diagram
Circuit Diagram

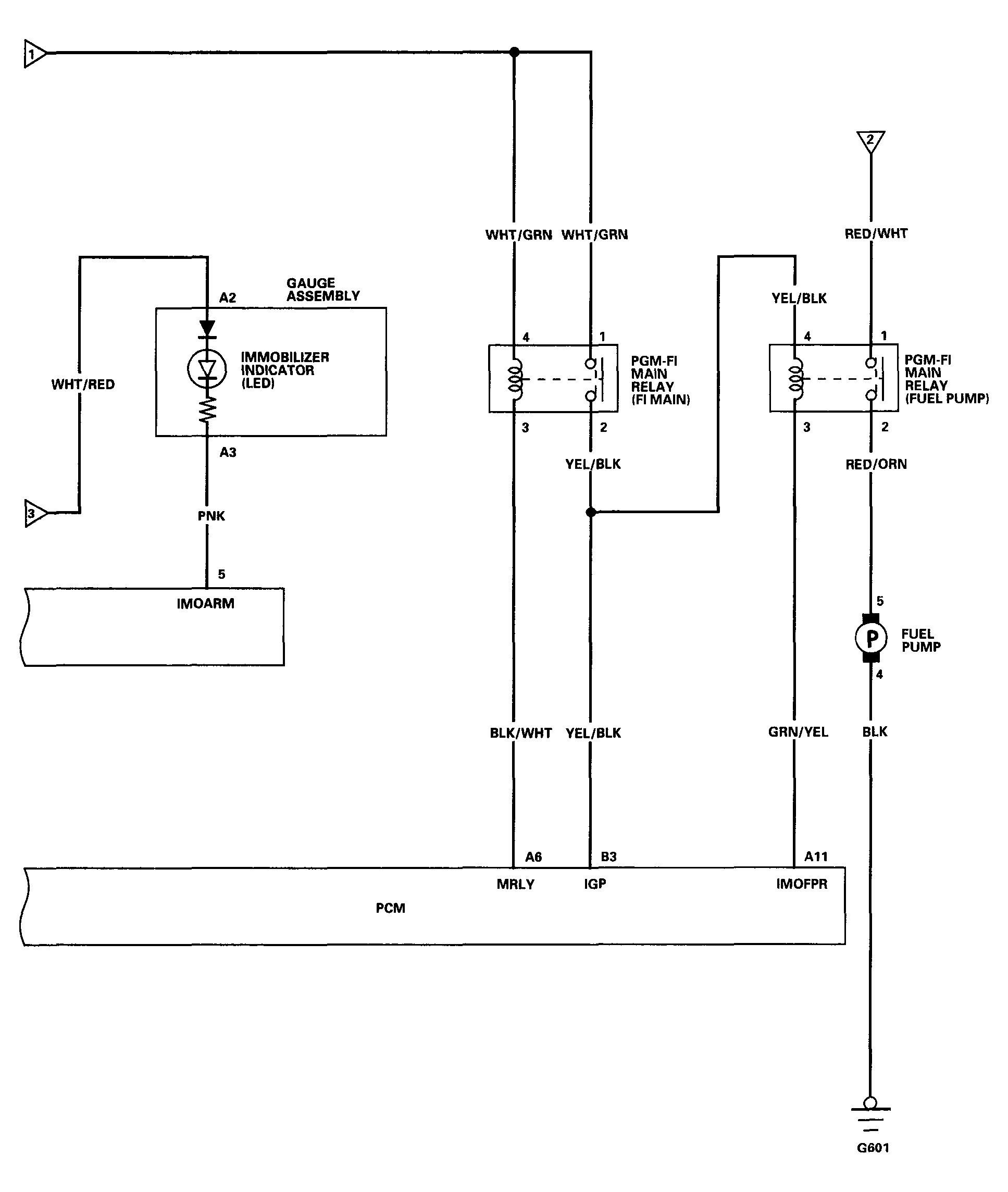

Fig 1: Immobilizer System Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

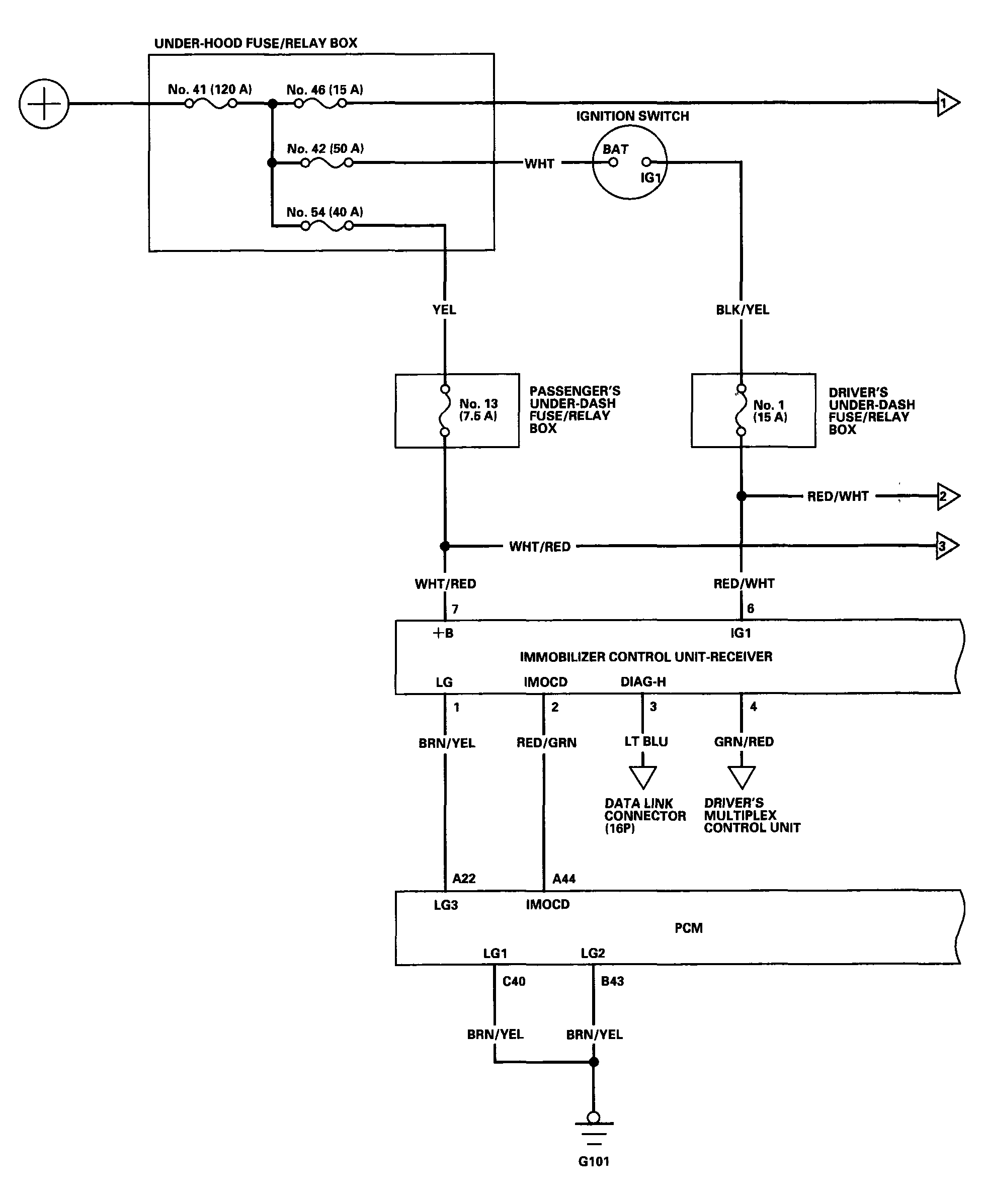

Fig 2: Immobilizer System Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
