Radio Remote Switch Test/Replacement

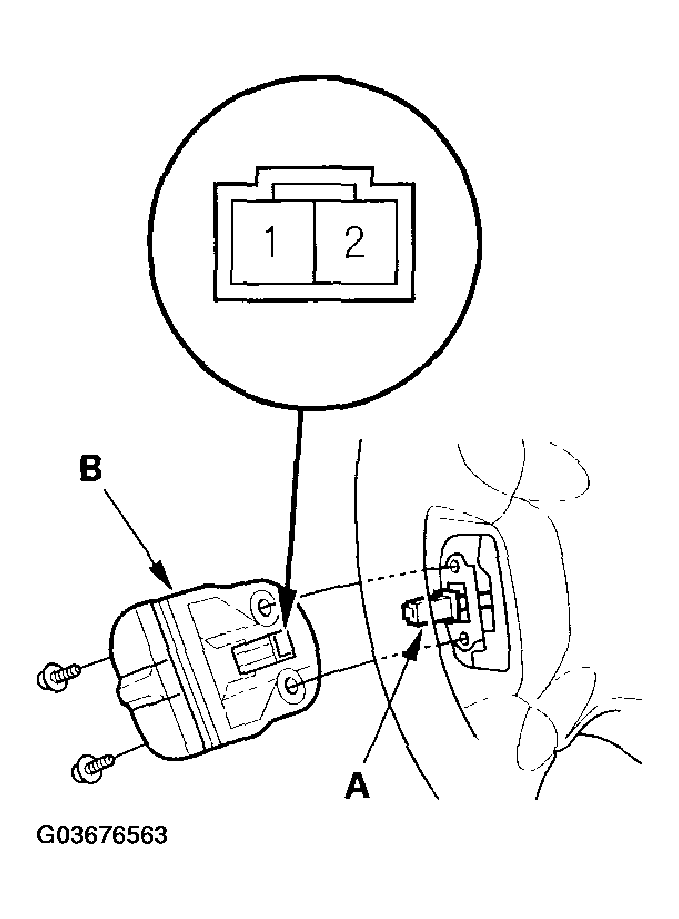

- Remove the 2P connector (A) from the radio remote switch (B).
- Remove the two mounting screws and the switch.
- Measure resistance between the No. 1 and No. 2 terminals in each switch position according to the table.RADIO REMOTE SWITCH RESISTANCE
Position Resistance OFF About 10 kohm MODE About 3.2 kohm CH About 1 kohm
(VOL.UP)About 317 ohm
(VOL.DOWN)About 47 ohm - If the resistance is not as specified, replace the radio remote switch.
