PCM Inputs and Outputs

WARNING: This page is about a different variant/trim than selected.

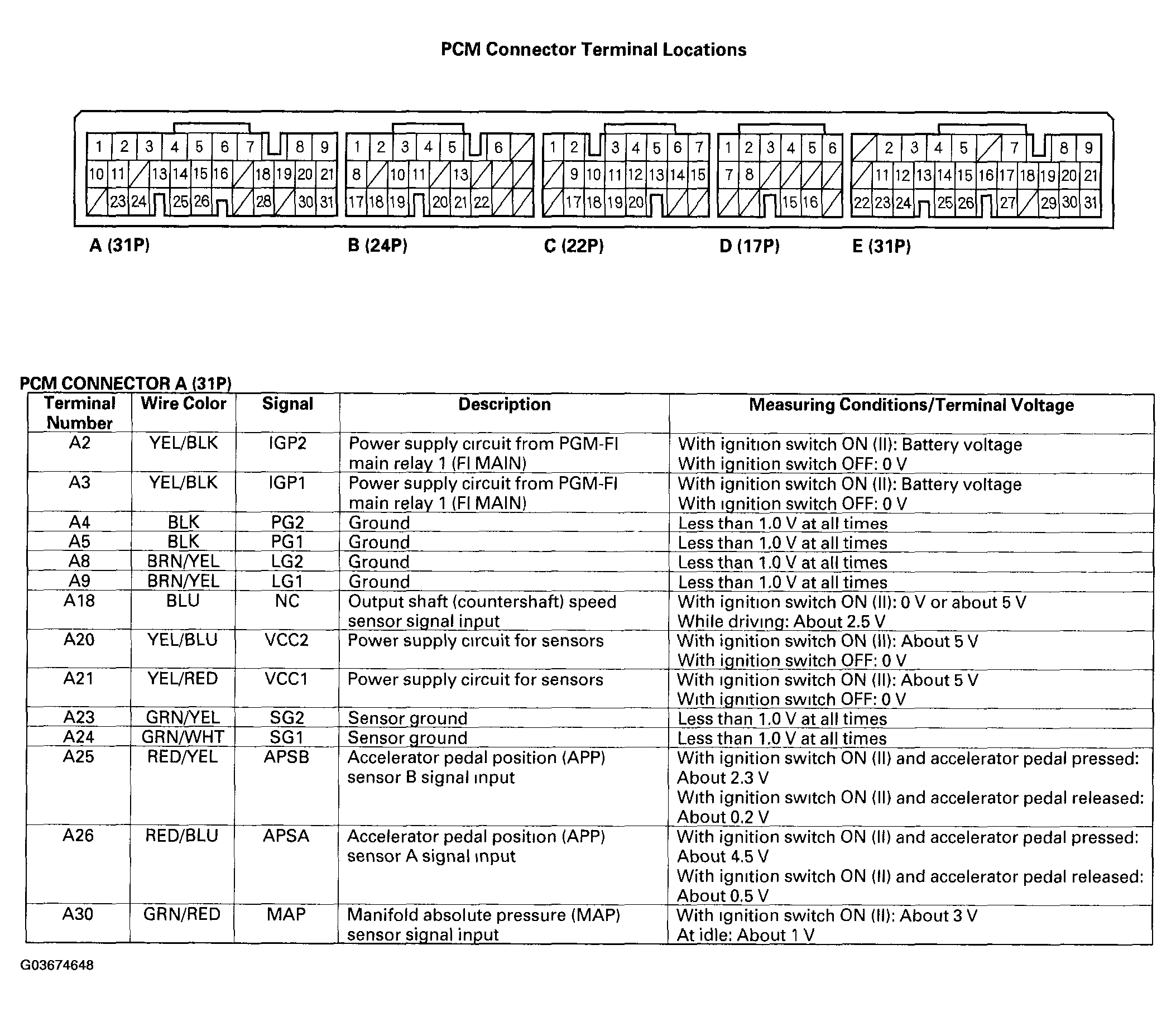

Fig 1: View Of PCM Connector Terminals And PCM Connector A (31P) Terminals Voltage Specifications
G03674648Courtesy of AMERICAN HONDA MOTOR CO., INC.

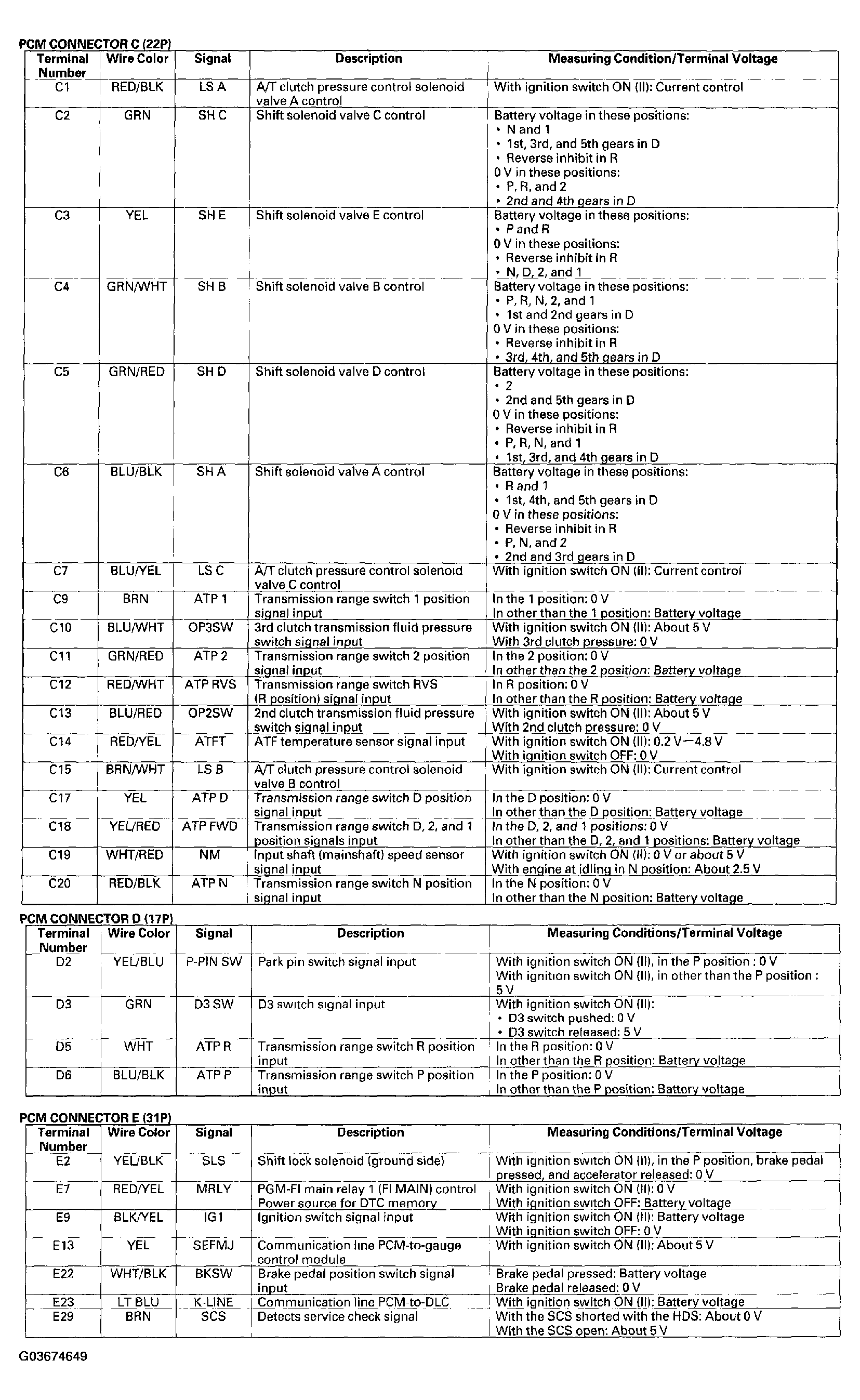

Fig 2: PCM Connector C (22P) Terminals Voltage Specifications
G03674649Courtesy of AMERICAN HONDA MOTOR CO., INC.
