Electronic Controls Location

WARNING: This page is about a different variant/trim than selected.

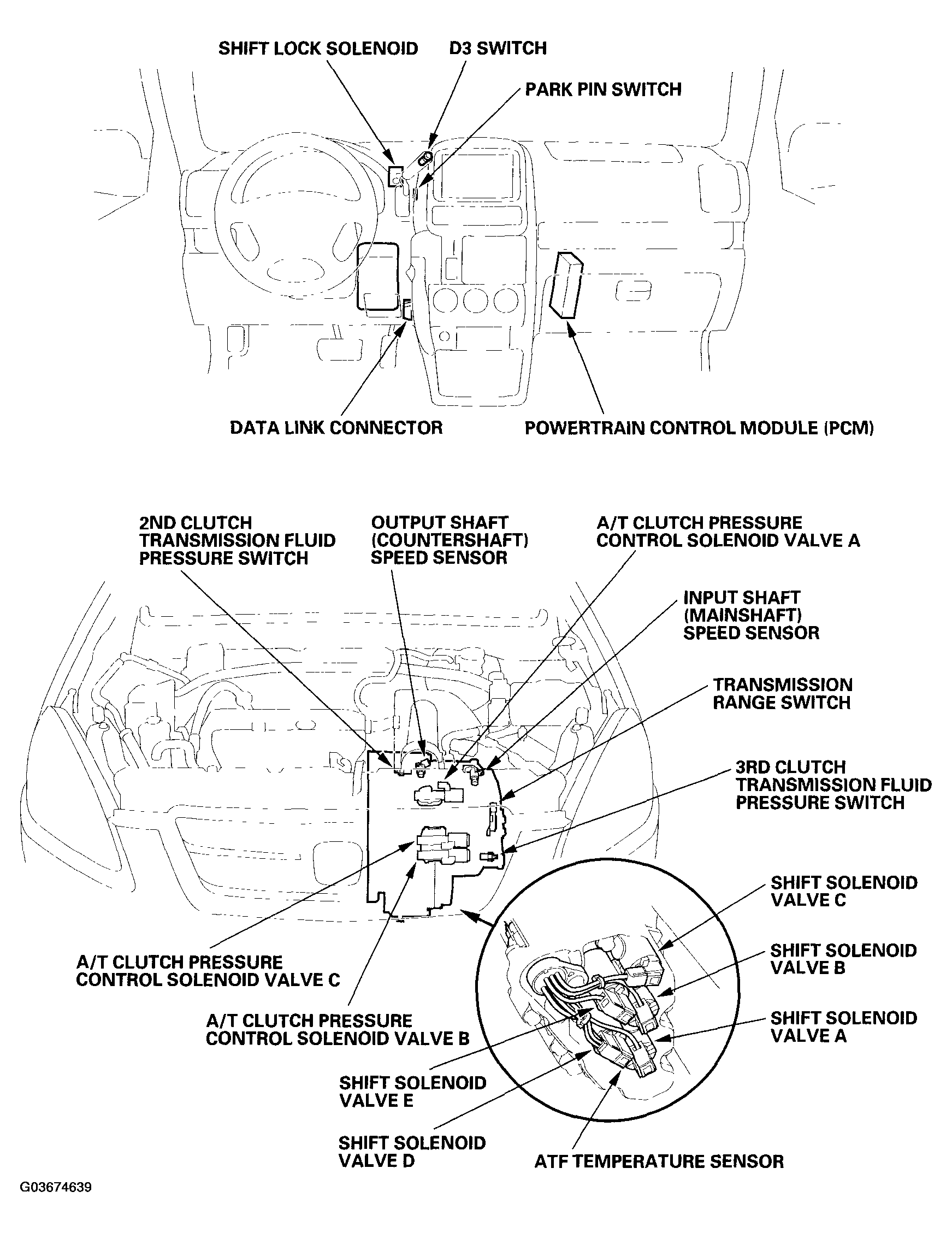

Fig 1: Locating Automatic Transmission Electronic Control System Components Position
G03674639Courtesy of AMERICAN HONDA MOTOR CO., INC.
