Circuit Diagram

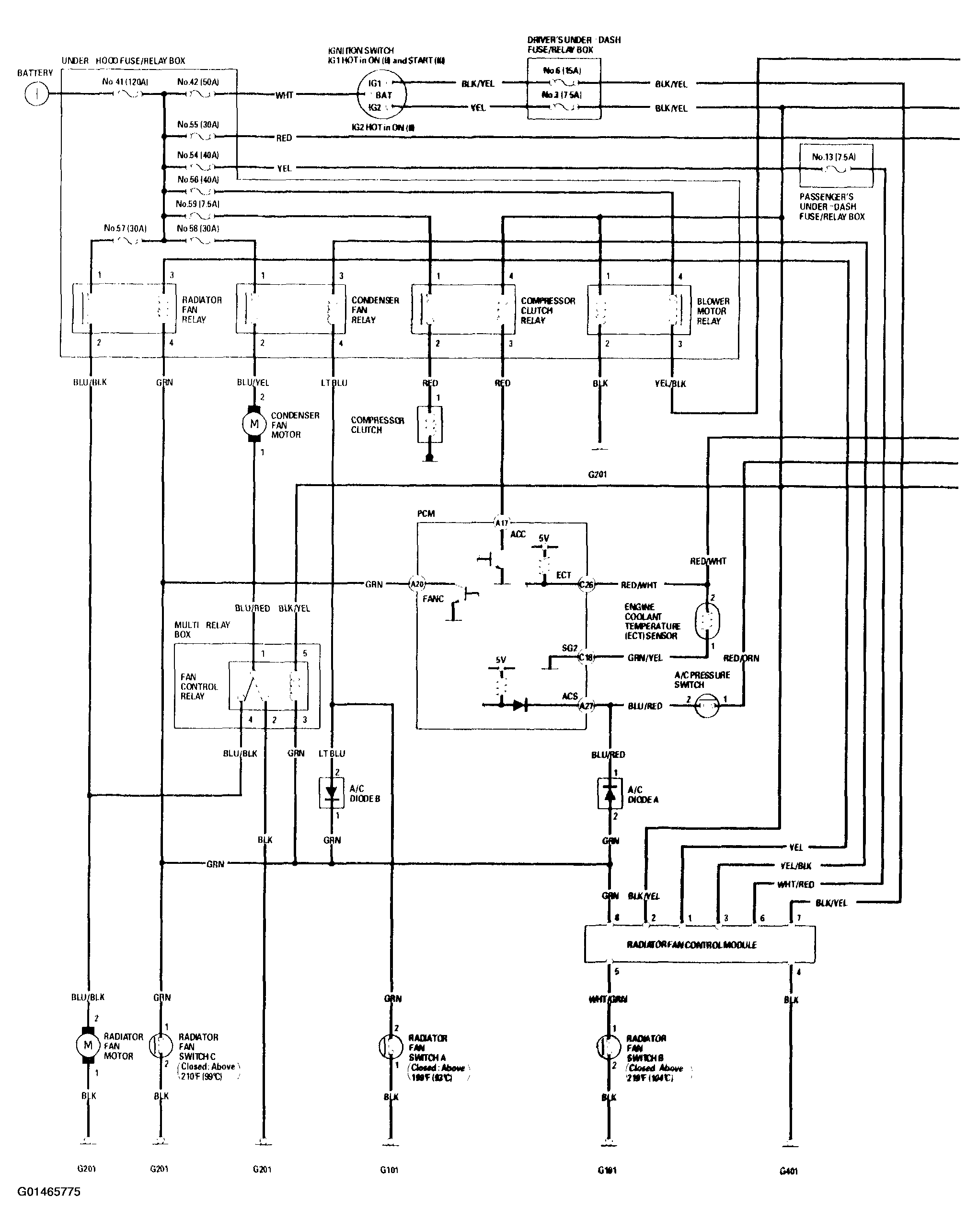

Fig 1: Climate Control System Circuit Diagram (1 Of 2)
G01465775Courtesy of AMERICAN HONDA MOTOR CO., INC.

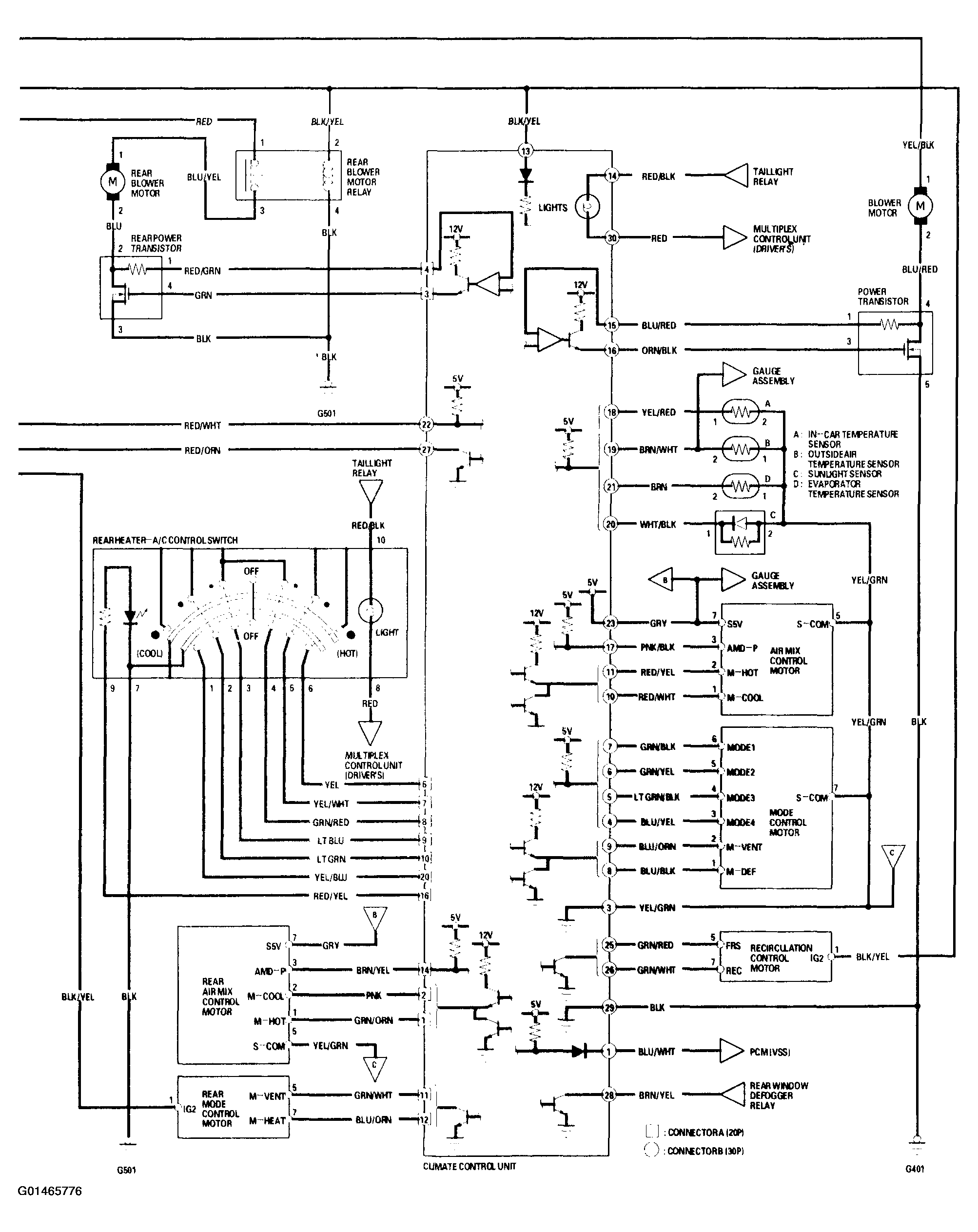

Fig 2: Climate Control System Circuit Diagram (2 Of 2)
G01465776Courtesy of AMERICAN HONDA MOTOR CO., INC.
