Park Pin Switch Replacement

  1. Remove the center console panel and center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  2. Remove the screws (A), then remove the shift lever knob (B).

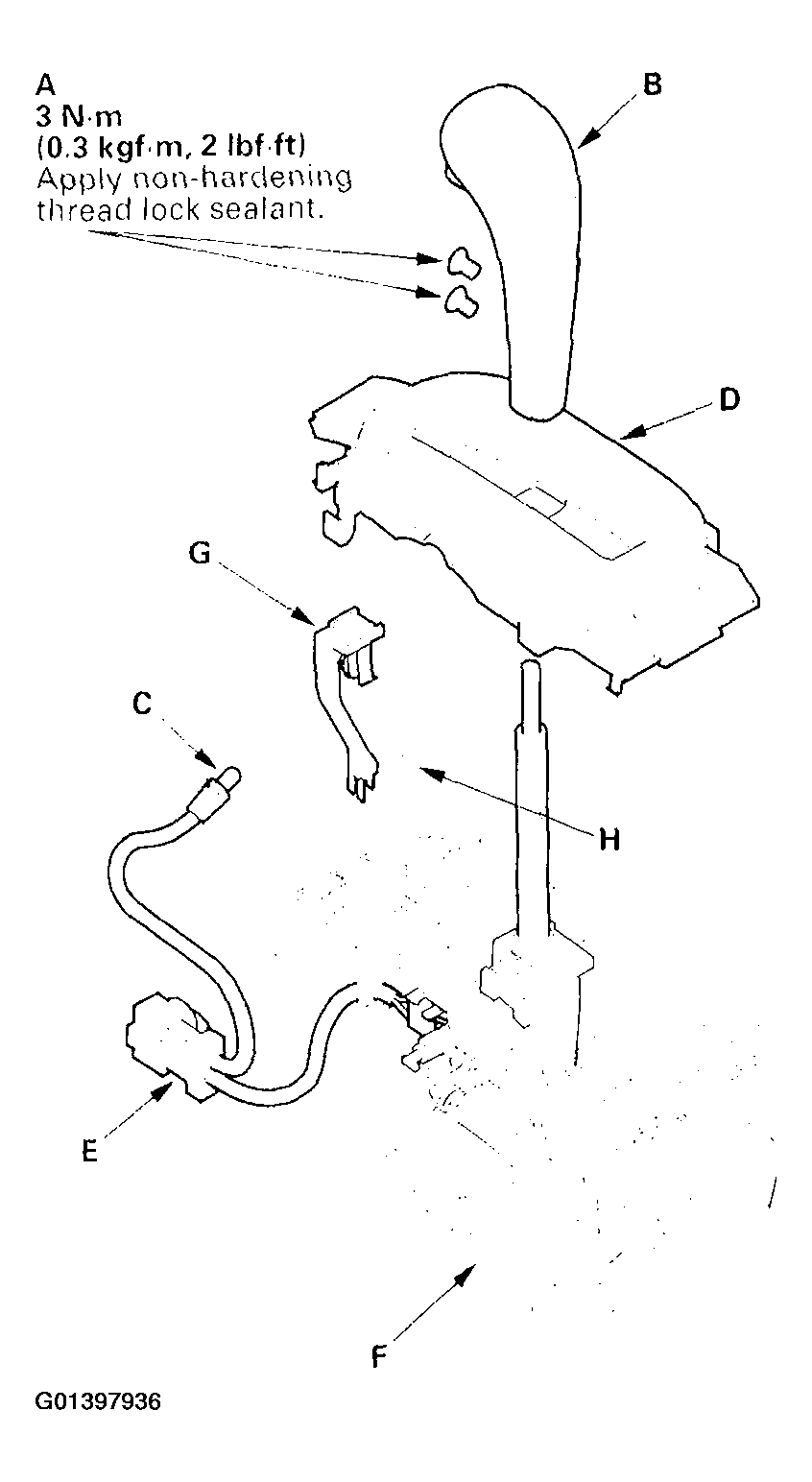

    Fig 1: Removing Screws & Removing Shift Lever Knob
    G01397936Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the A/T gear position indicator panel light (C) from the A/T gear position indicator panel.
  4. Remove the A/T gear position indicator panel and panel bracket as an assembly (D).
  5. Disconnect the park pin switch connector (4P) (E), and remove it from the shift lever bracket base (F).
  6. Remove the shift lock release (G) and spring (H).
  7. Open the lock tabs (A) on the shift lever bracket base, then remove the park pin switch (B).

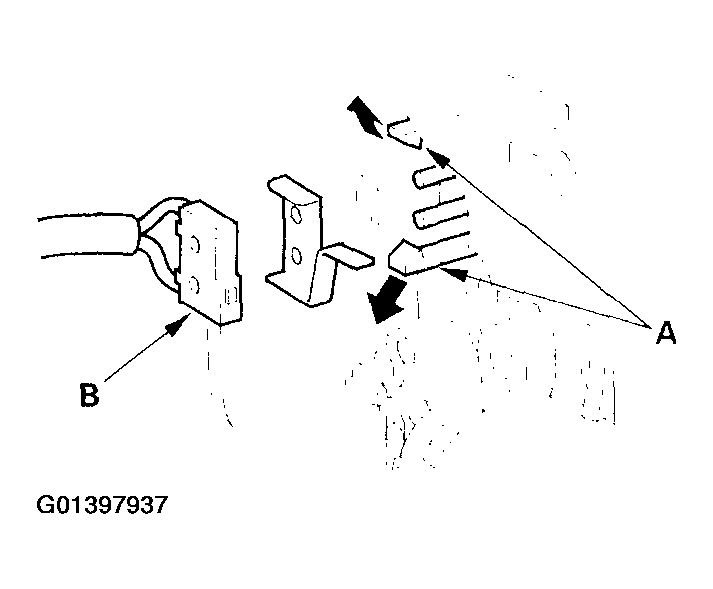

    Fig 2: Opening Lock Tabs On Shift Lever Bracket Base
    G01397937Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Install the new park pin switch.
  9. Install the removed parts in the reverse order of removal.
