Component Location Index
Component Location Index

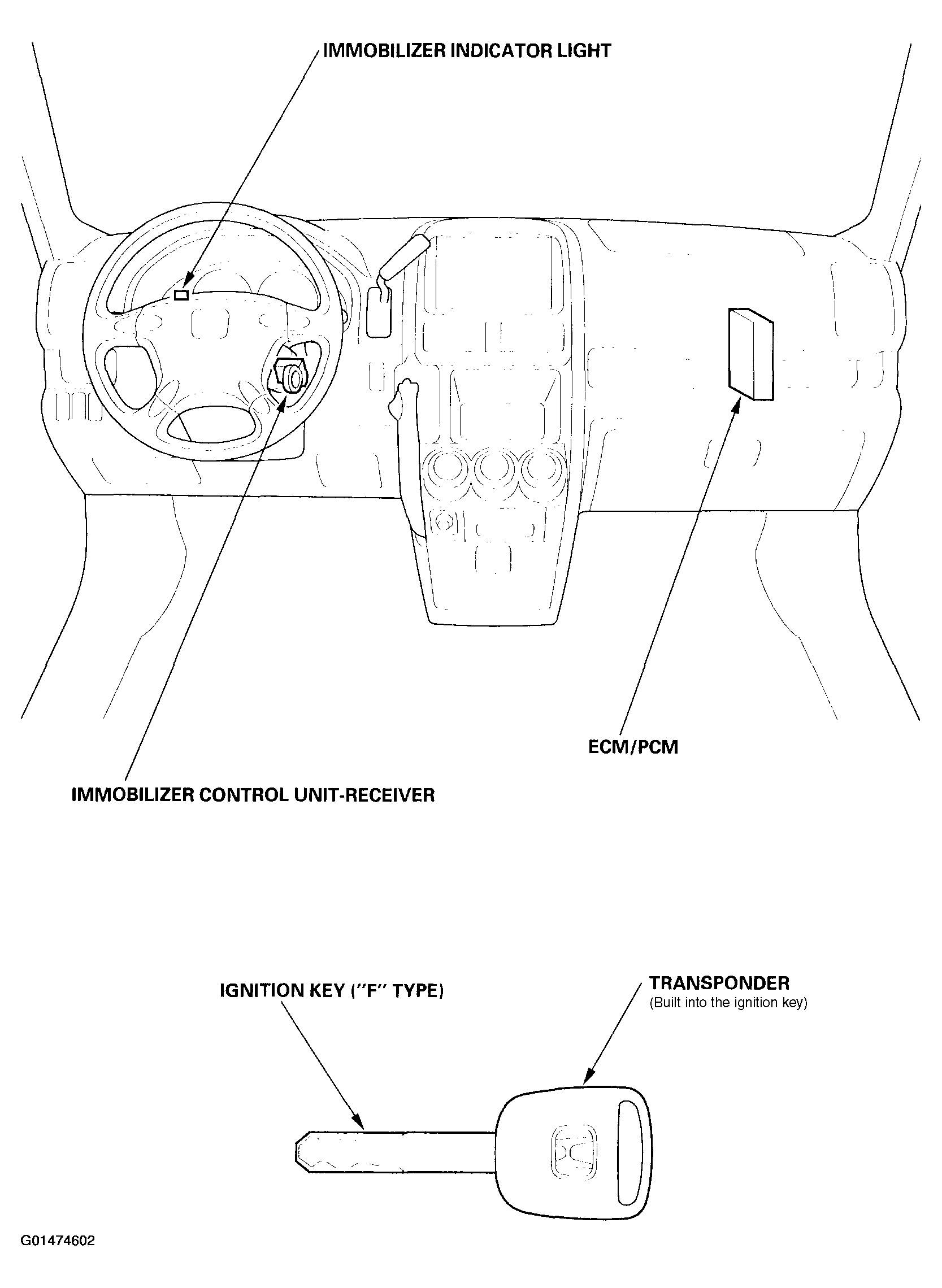

Fig 1: Immobilizer System Component Locations
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
