Steering Column Removal & Installation: Removal

  1. Record the radio station presets, and disconnect the battery.
  2. Remove the driver's airbag, steering wheel, and cable reel. For 2004 models, see AIR BAG RESTRAINT SYSTEMS . For 2003 models, see AIR BAG RESTRAINT SYSTEMS .
  3. Set the column shaft (A) in the neutral position by pulling up the steering column to uppermost position, then lower it 8 mm (0.31"). Tighten the tilt lever (B).

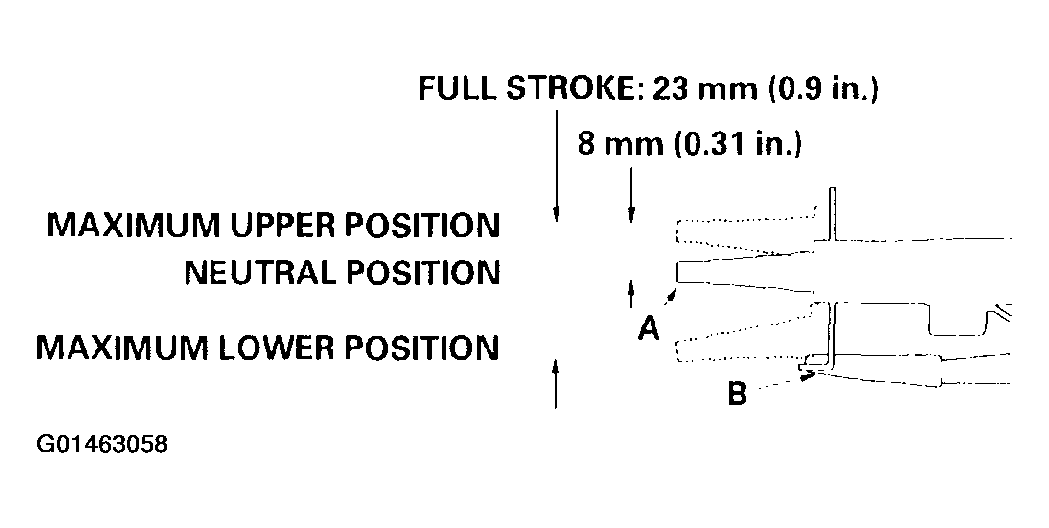

    Fig 1: Setting The Column Shaft In The Neutral Position
    G01463058Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the column covers (A).

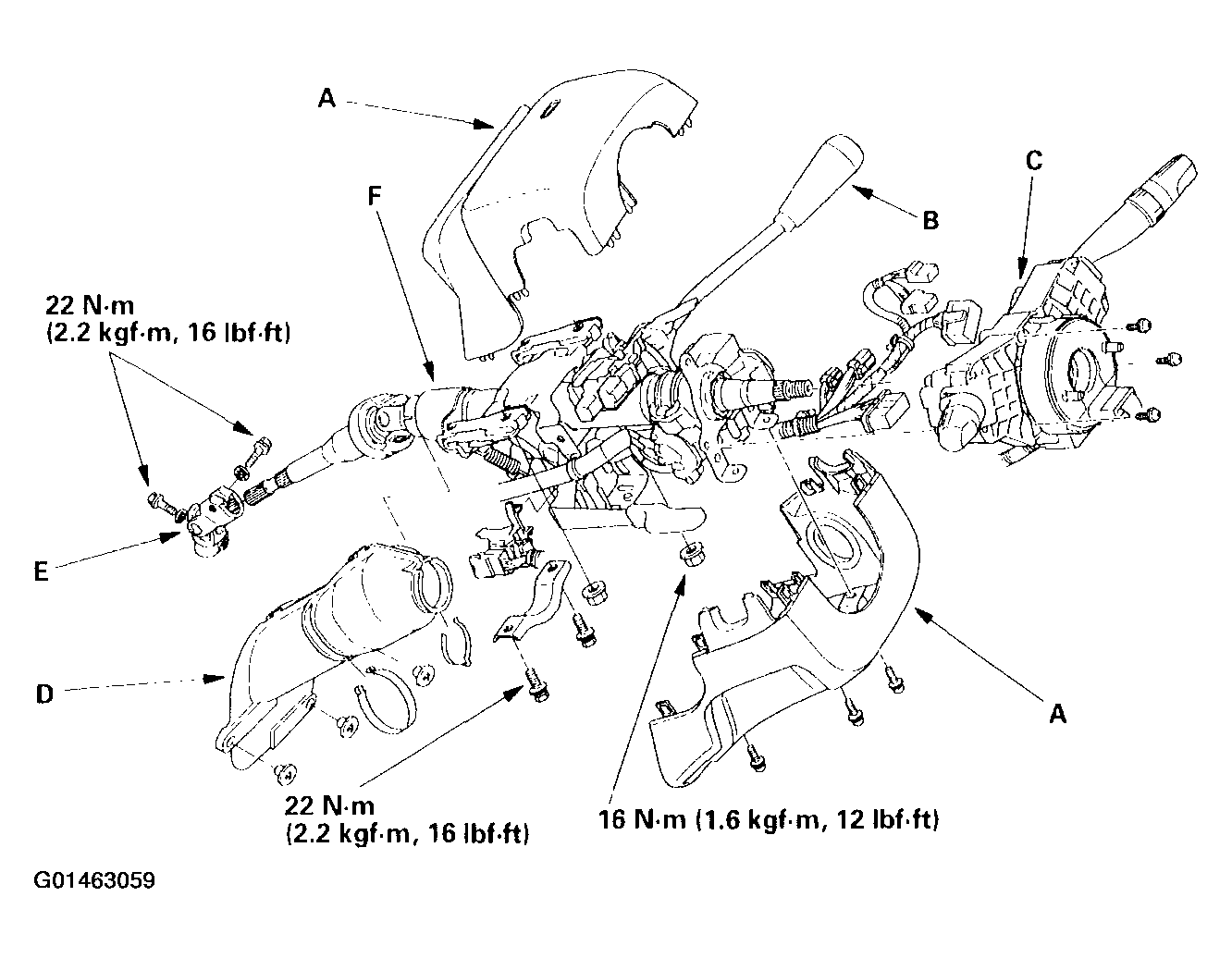

    Fig 2: Removing The Column Covers
    G01463059Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Move the shift lever (B) to the N position, and remove the shift cable from the column, and set it aside.
  6. Remove the combination switch assembly (C) from the steering column shaft by removing the three mounting screws, and disconnecting the connectors.
  7. Disconnect the ignition switch connectors and disconnect the harness clips.
  8. Disconnect the immobilizer receiver unit, the park pin switch, and the shift lock solenoid.
  9. Remove the steering joint cover (D).
  10. Disconnect the steering joint (E), and remove it from the column shaft.
  11. Remove the steering column (F) by removing the attaching nuts and bolts.
