Under- Hood Emission Control Label

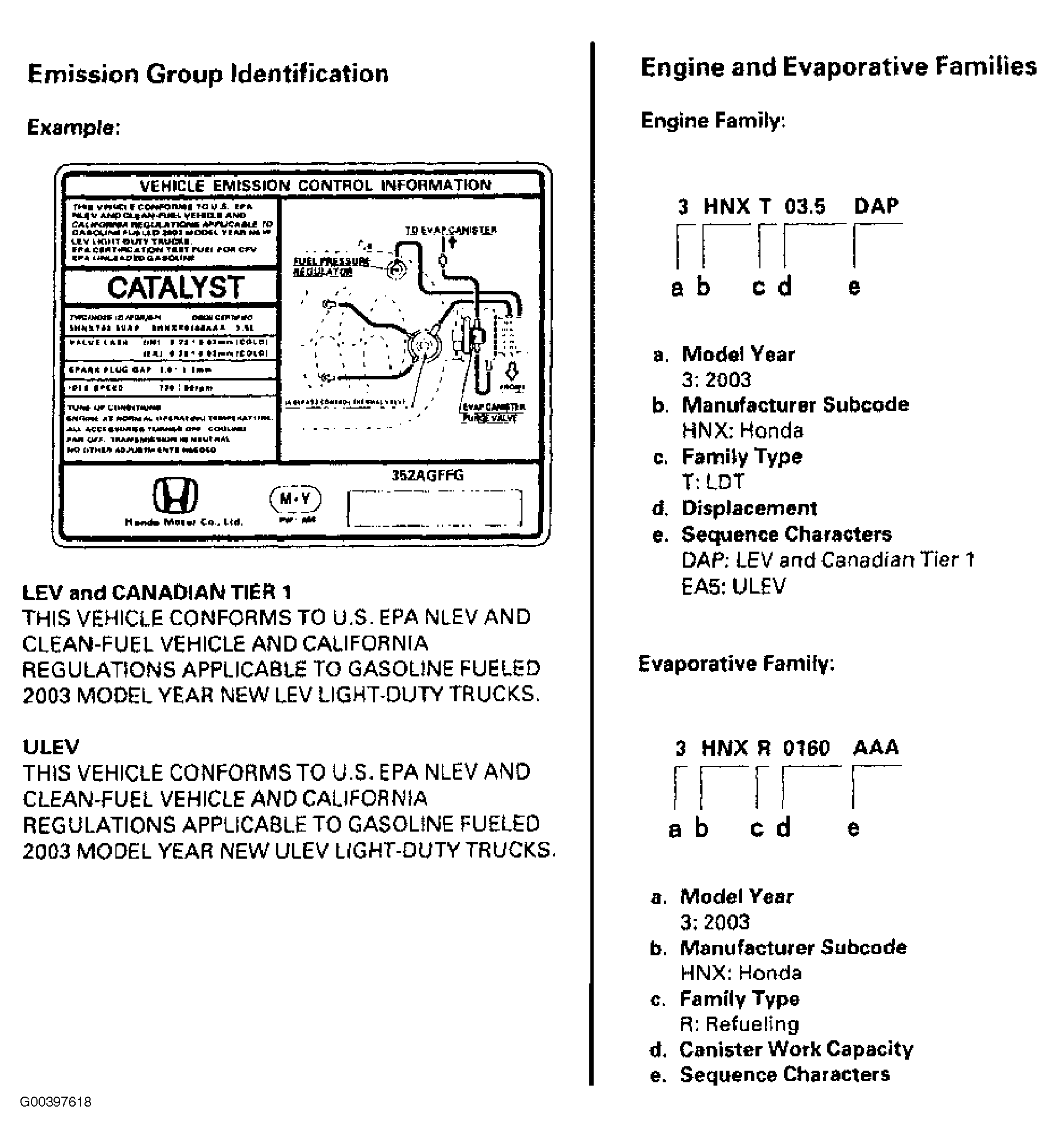

Fig 1: Under-Hood Emission Control Label (2003 Model)
G00397618Courtesy of AMERICAN HONDA MOTOR CO., INC.

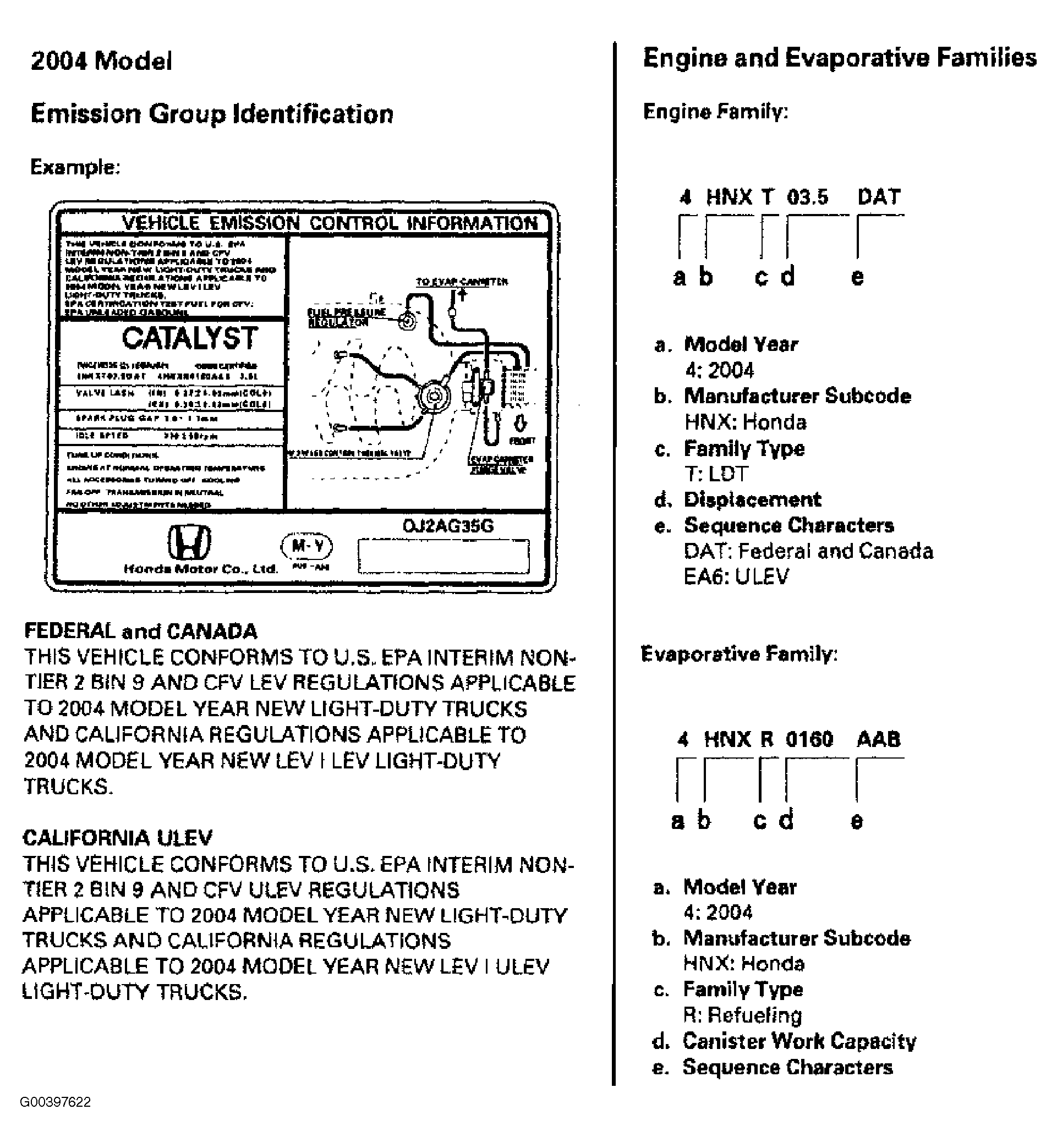

Fig 2: Under-Hood Emission Control Label (2004 Model)
G00397622Courtesy of AMERICAN HONDA MOTOR CO., INC.
