Home
>>
Honda
>>
2003
>>
CR-V EX, Standard
>>
Repair and Diagnosis
>>
Steering
>>
Steering Column
>>
Power Steering System
>>
Fluid Leakage Inspection
Fluid Leakage Inspection

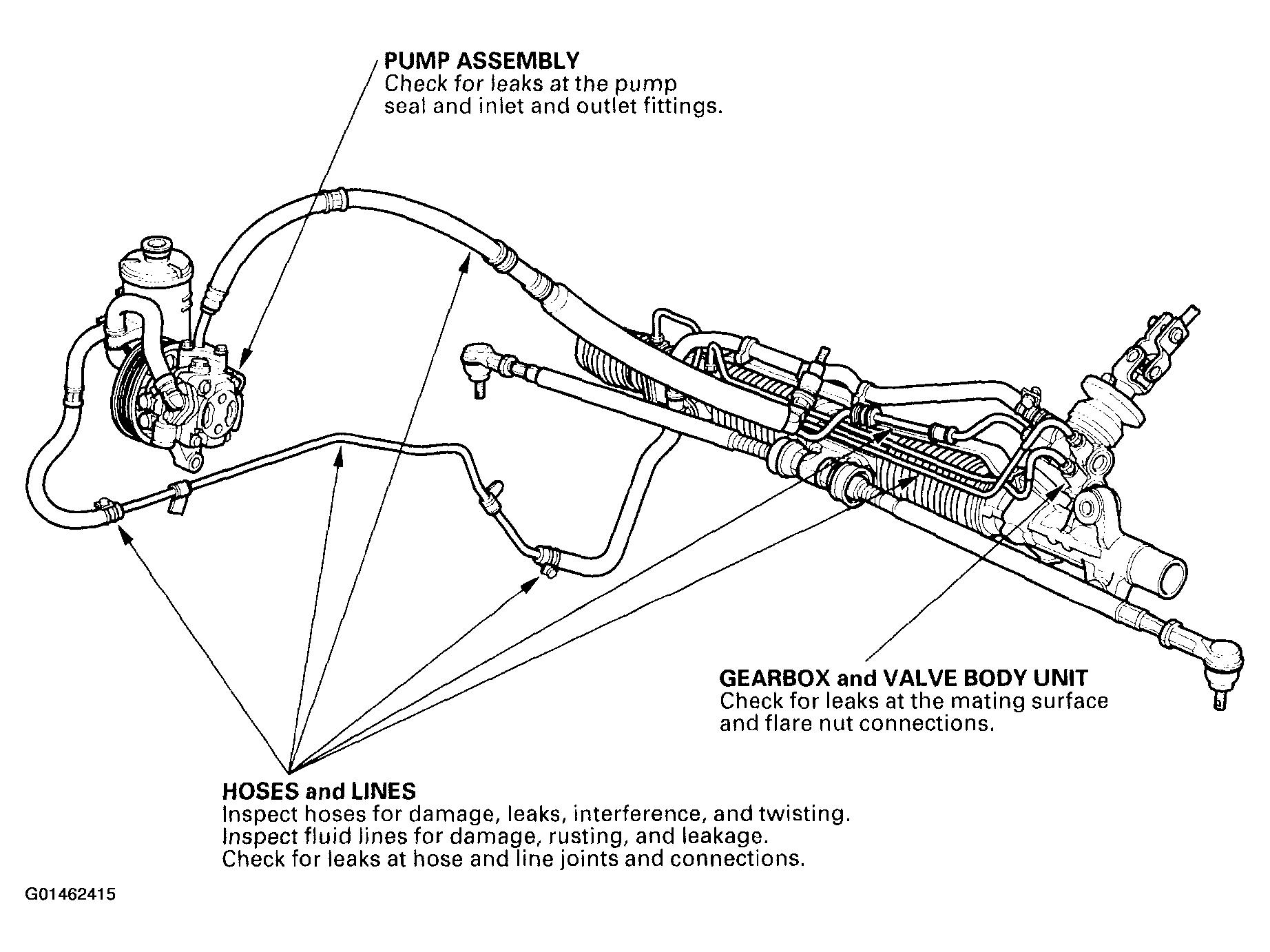

Fig 1: Identifying Fluid Leakage Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
