Heater Control Panel Disassembly and Reassembly

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

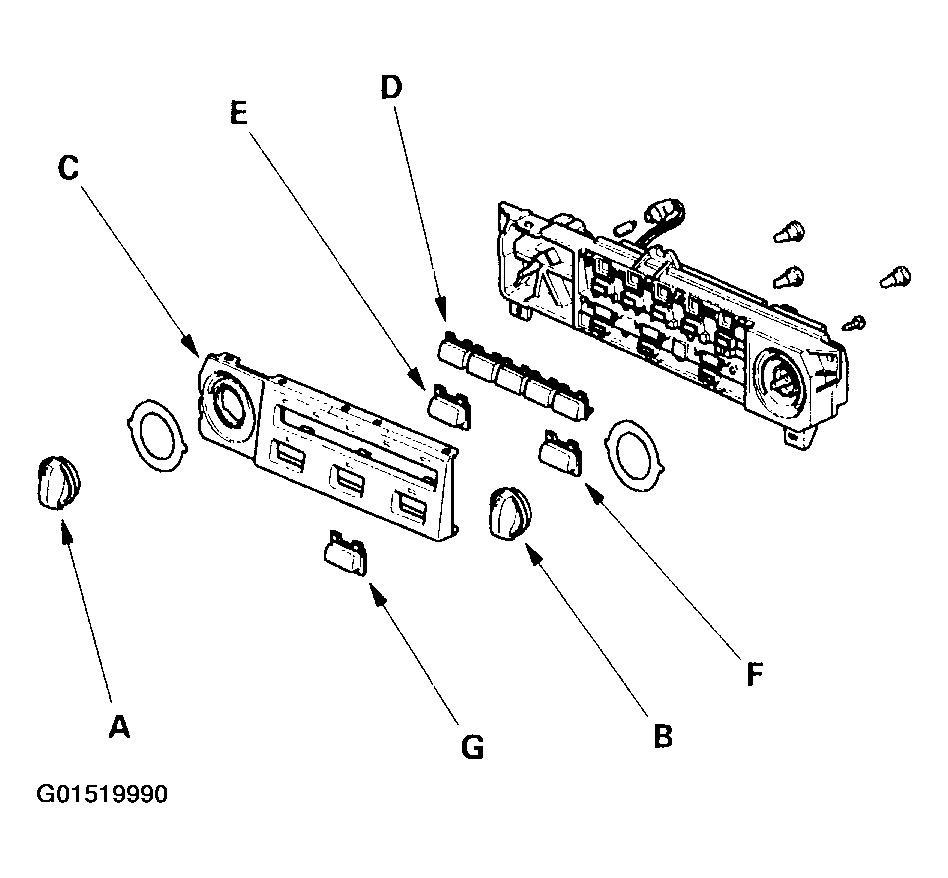

  1. Remove the fan switch (A) and temperature control dial (B), then remove the front panel (C). Remove the mode control switch (D), recirculation control switch (E), rear defogger switch (F) and A/C switch (G) buttons.
    Fig 1: Removing Fans Switch
    G01519990Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Reassemble the control panel in the reverse order of removal.
