Fuel System & Emission Systems (4-CYL)
>>
System Descriptions
>>
Vacuum Distribution
Vacuum Distribution

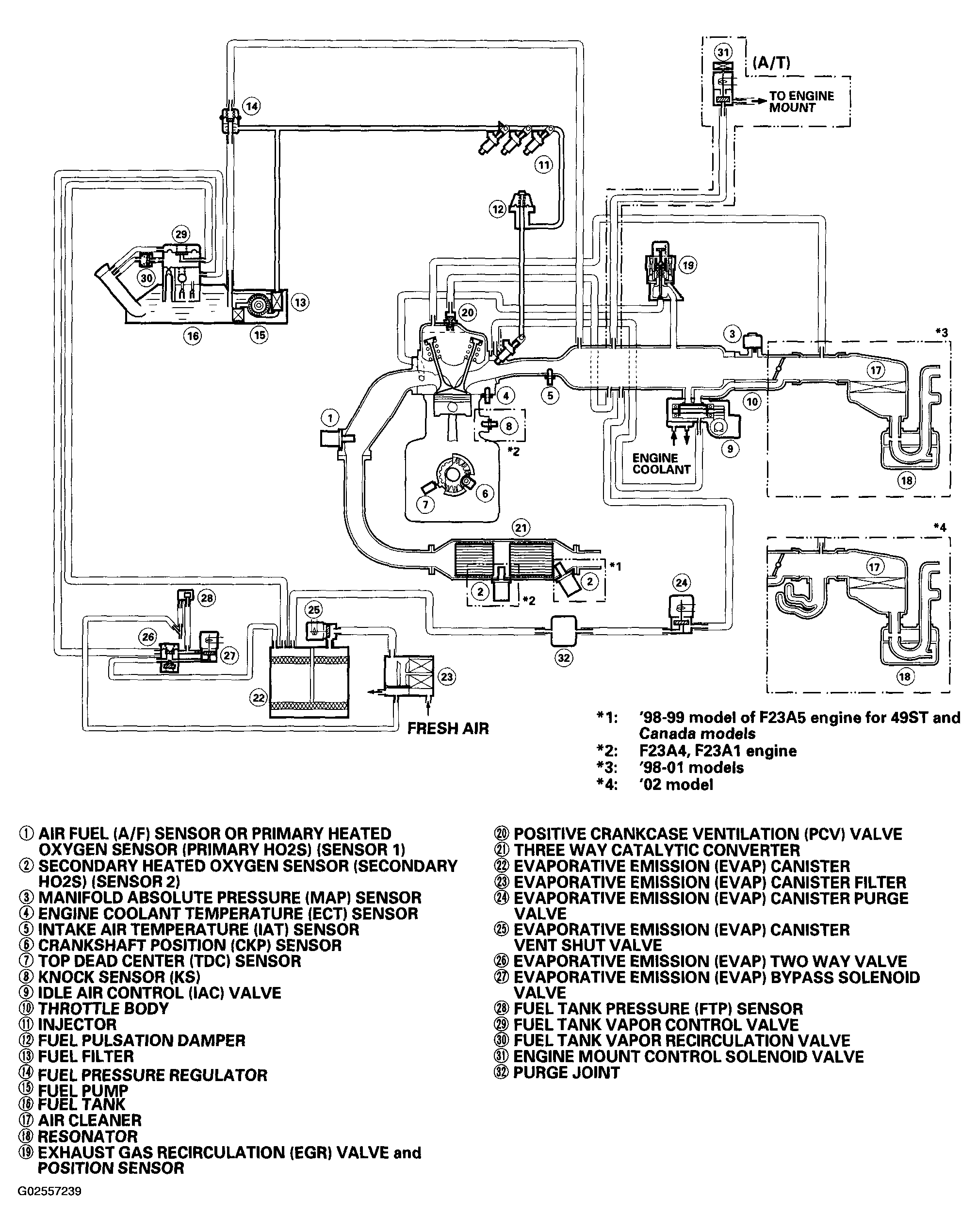

Fig 1: Identifying Vacuum Distribution
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
