Special Tools Required

KTC trim tool set SOJATP2014*

*Available through the American Honda Tool and Equipment Program; call 888-424-6857

1. Remove the radio panel as shown below.
2. Install the panel in the reverse order of removal, and note these items:
   • Replace any damaged clips.
   • Push the clips into place securely.

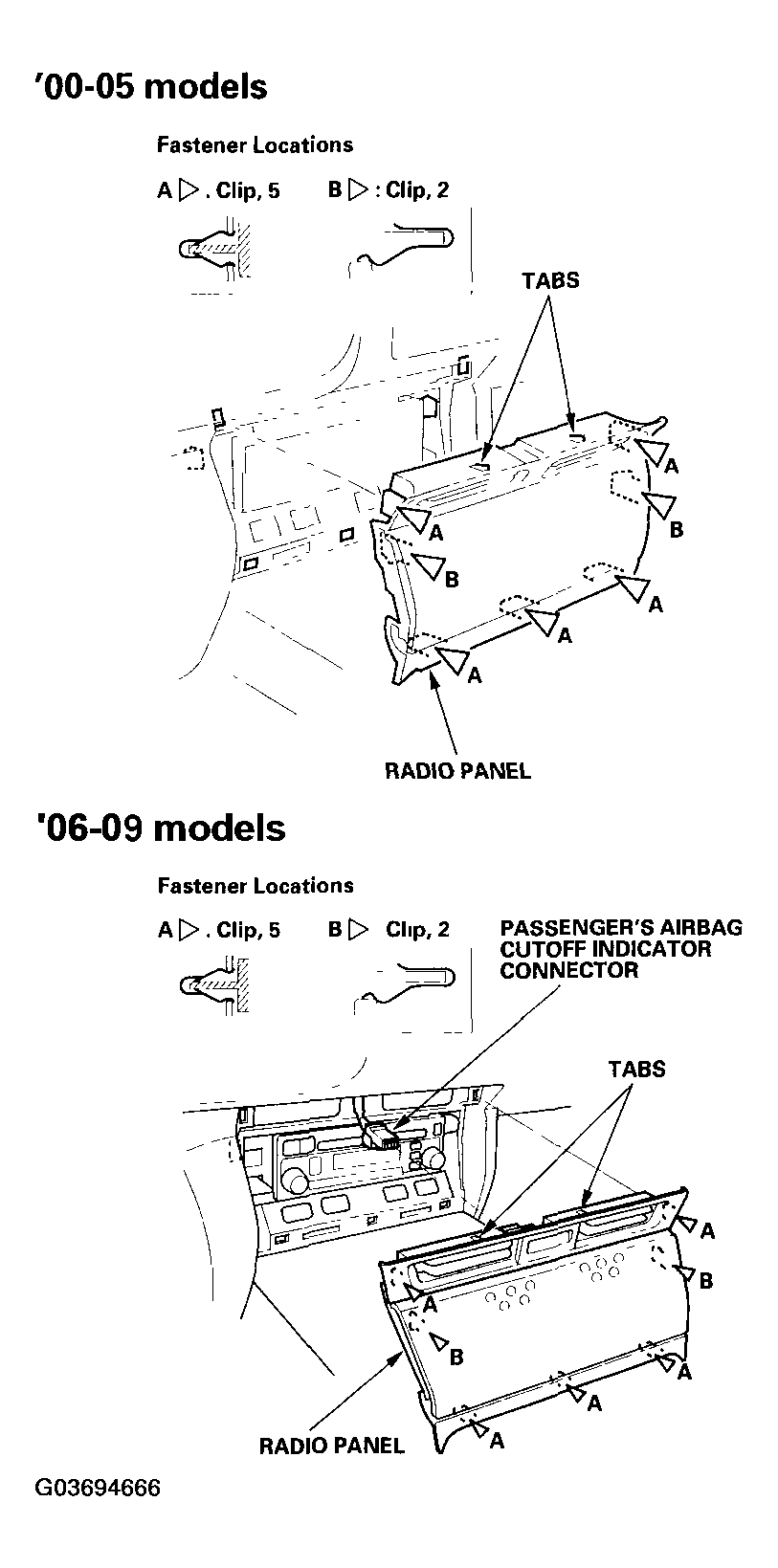

     Fig 1: Identifying Radio Panel

     Courtesy of AMERICAN HONDA MOTOR CO., INC.
