Special Tools Required

KTC trim tool set SOJATP2014*

*Available through the American Honda Tool and Equipment Program; call 888-424-6857

NOTE:

Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
Take care not to scratch the dashboard and related parts.

Remove the instrument panel as shown below.
Install the panel in the reverse order of removal, and note these items:
- Replace any damaged clips.
- Make sure the connectors are plugged in properly.
- Push the clips into place securely.

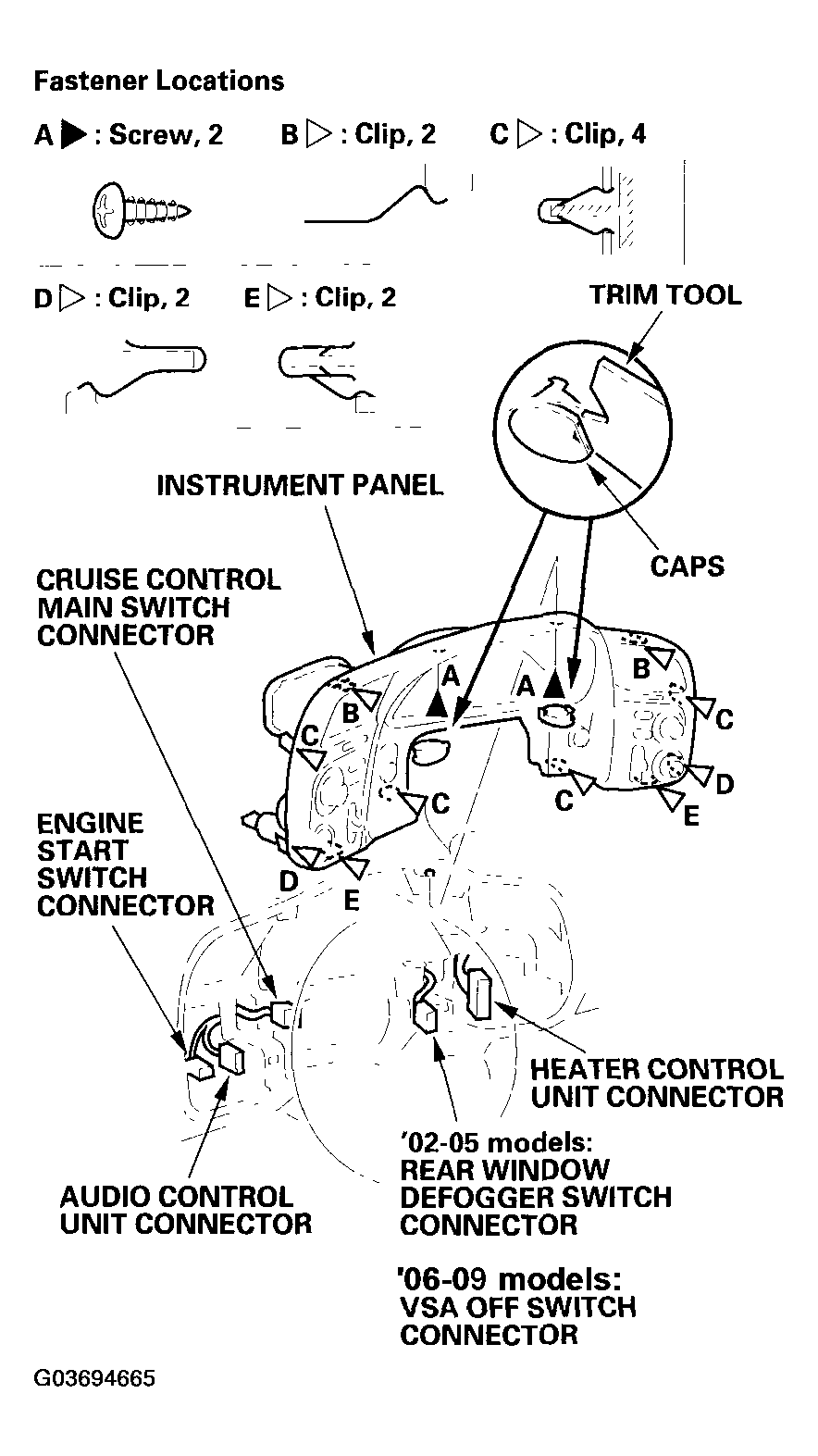

  Fig 1: Identifying Instrument Panel
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
