Damper/Spring Assembly: Notes
WARNING: This page is about a different car, the 2004 Honda Odyssey and 2003 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

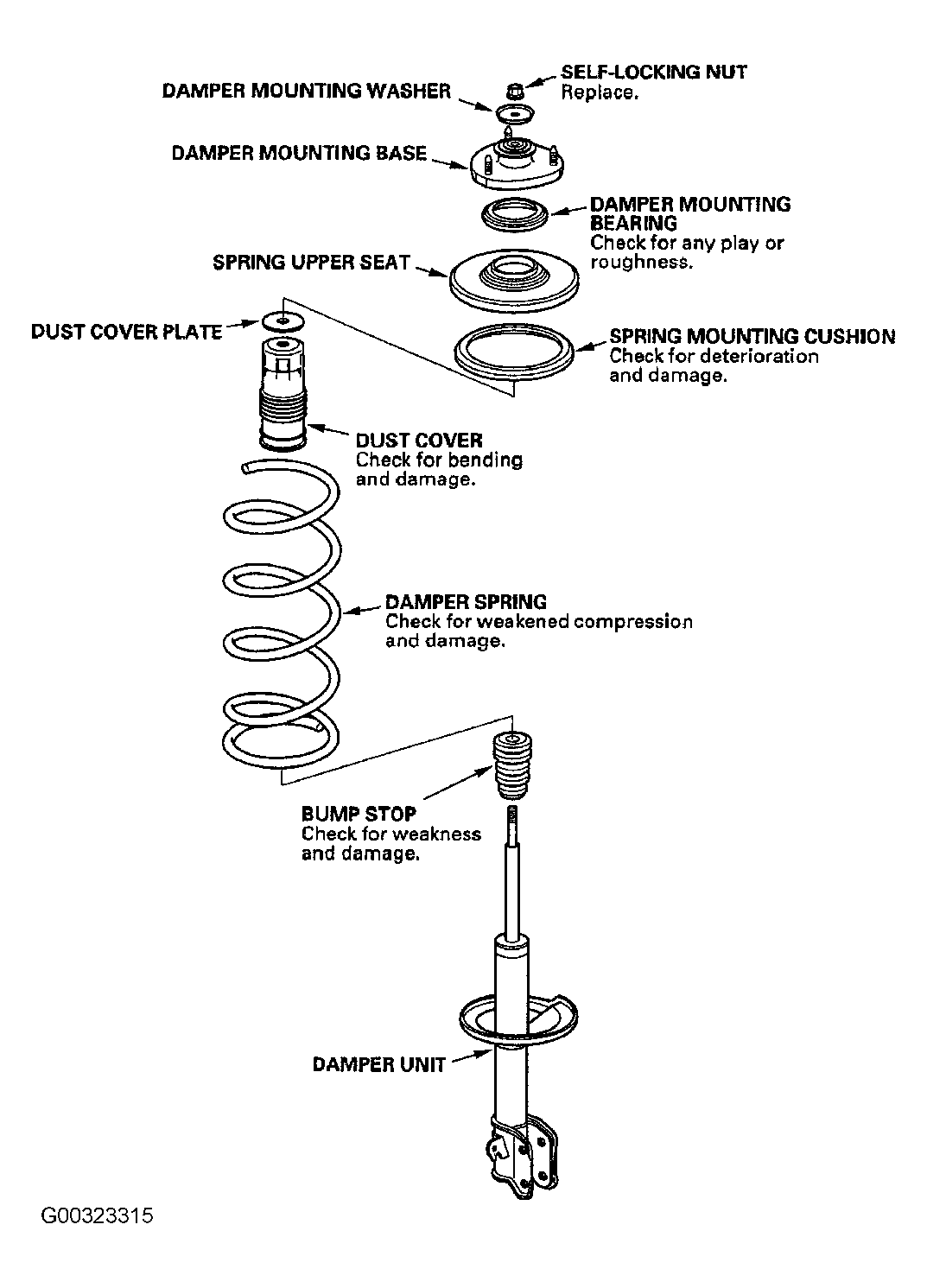

For exploded view of damper/spring assembly, see Figure.
