Power Relay Test: Notes

Use this chart to identify the type of relay, then do the test listed for it.

NOTE: For the turn signal/hazard relay input test (see TURN SIGNAL/HAZARD RELAY INPUT TEST ).

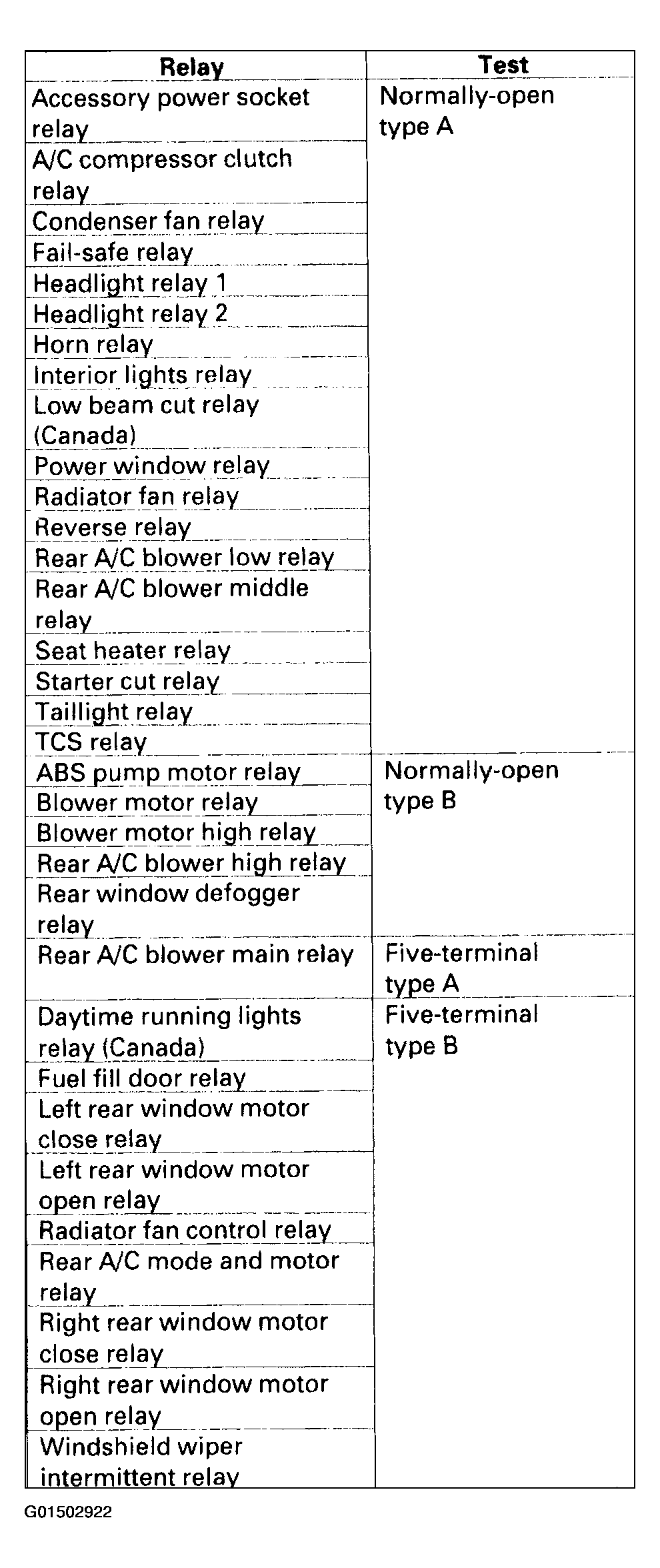

Fig 1: Power Relay Test Identification Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.
