Fuse to Components Index

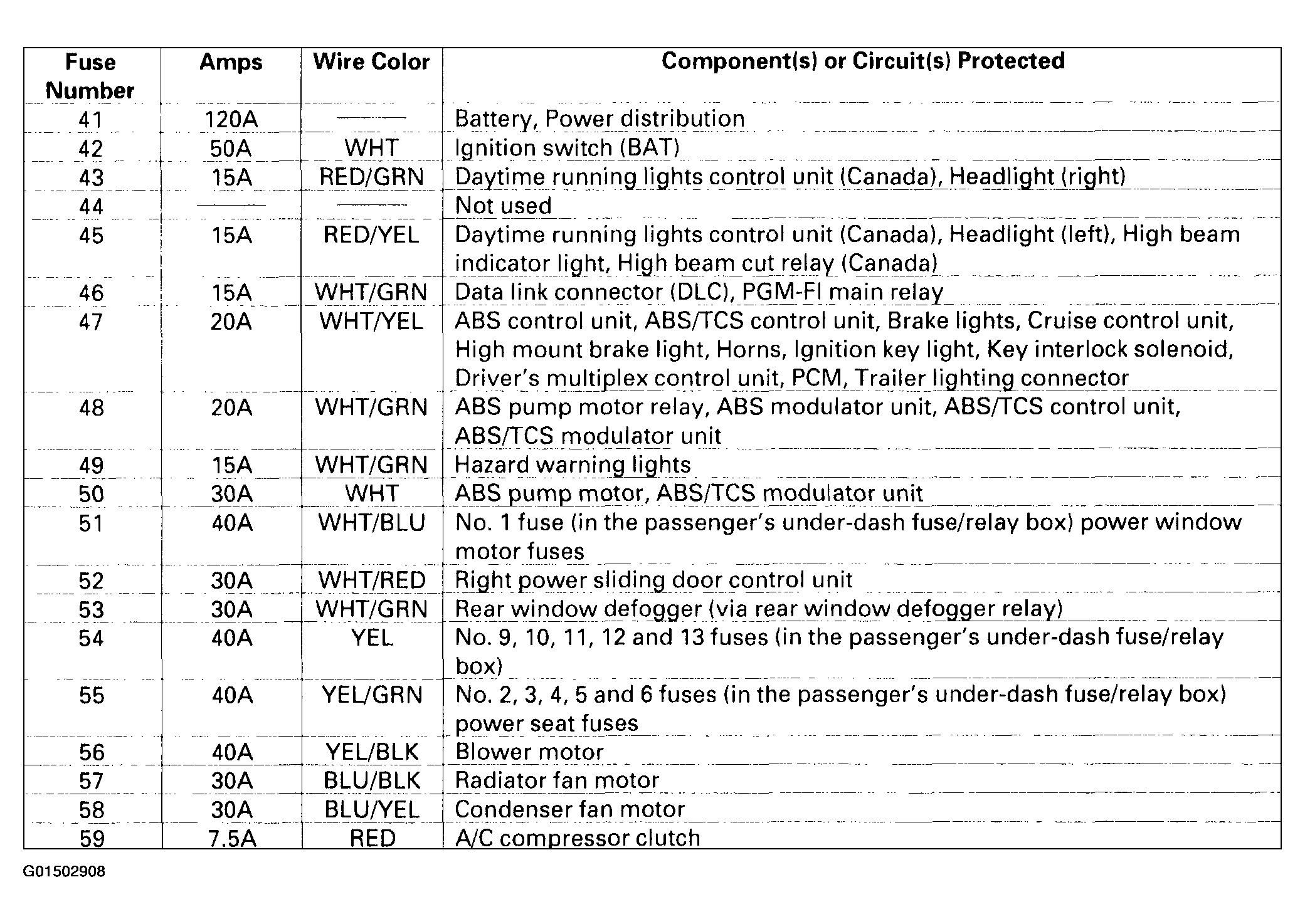

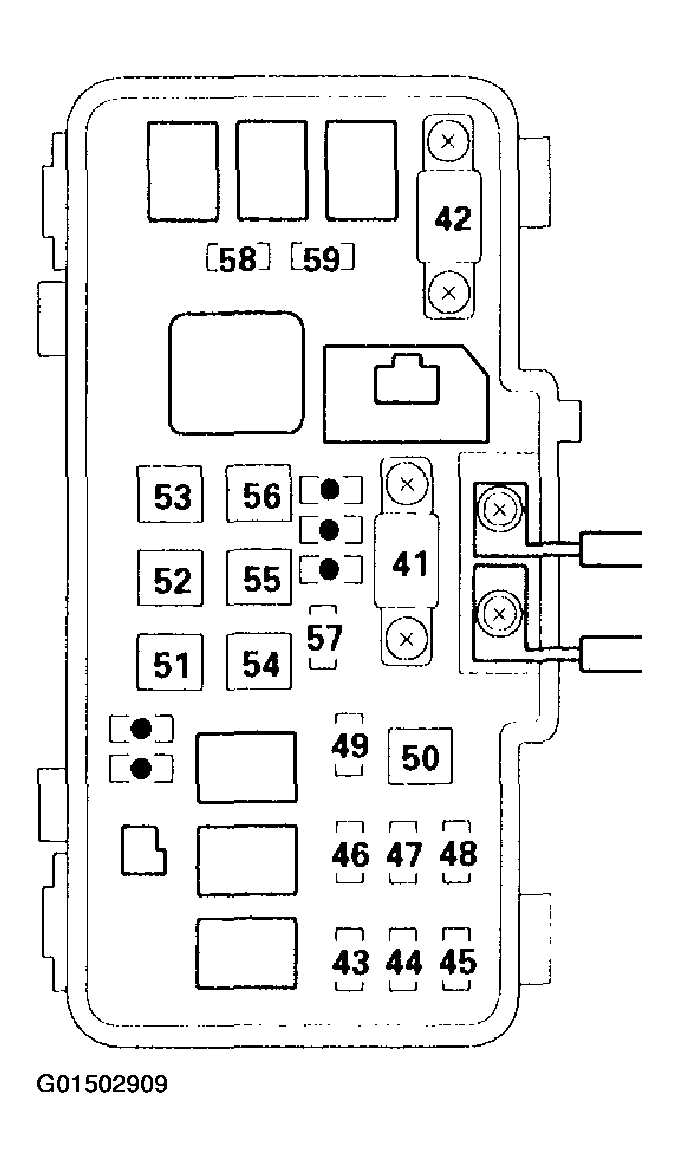

Fig 1: Under-Hood Fuse/Relay Box Identification Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Locating Under-Hood Fuse/Relay Box

Courtesy of AMERICAN HONDA MOTOR CO., INC.

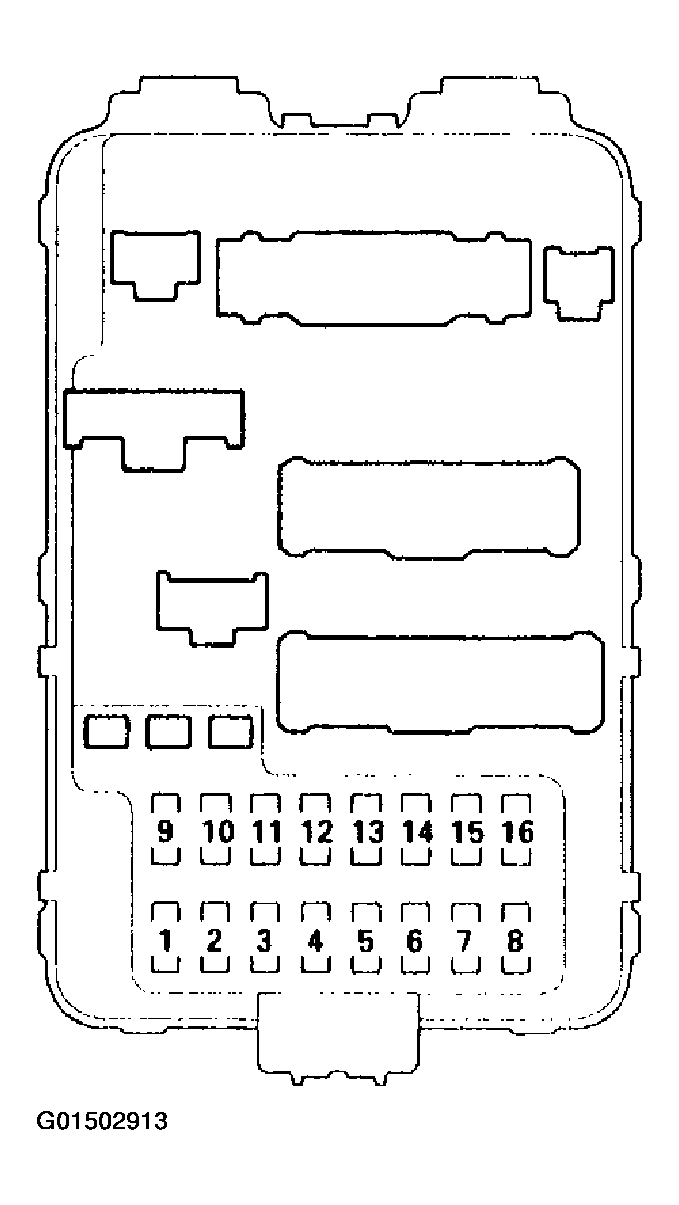

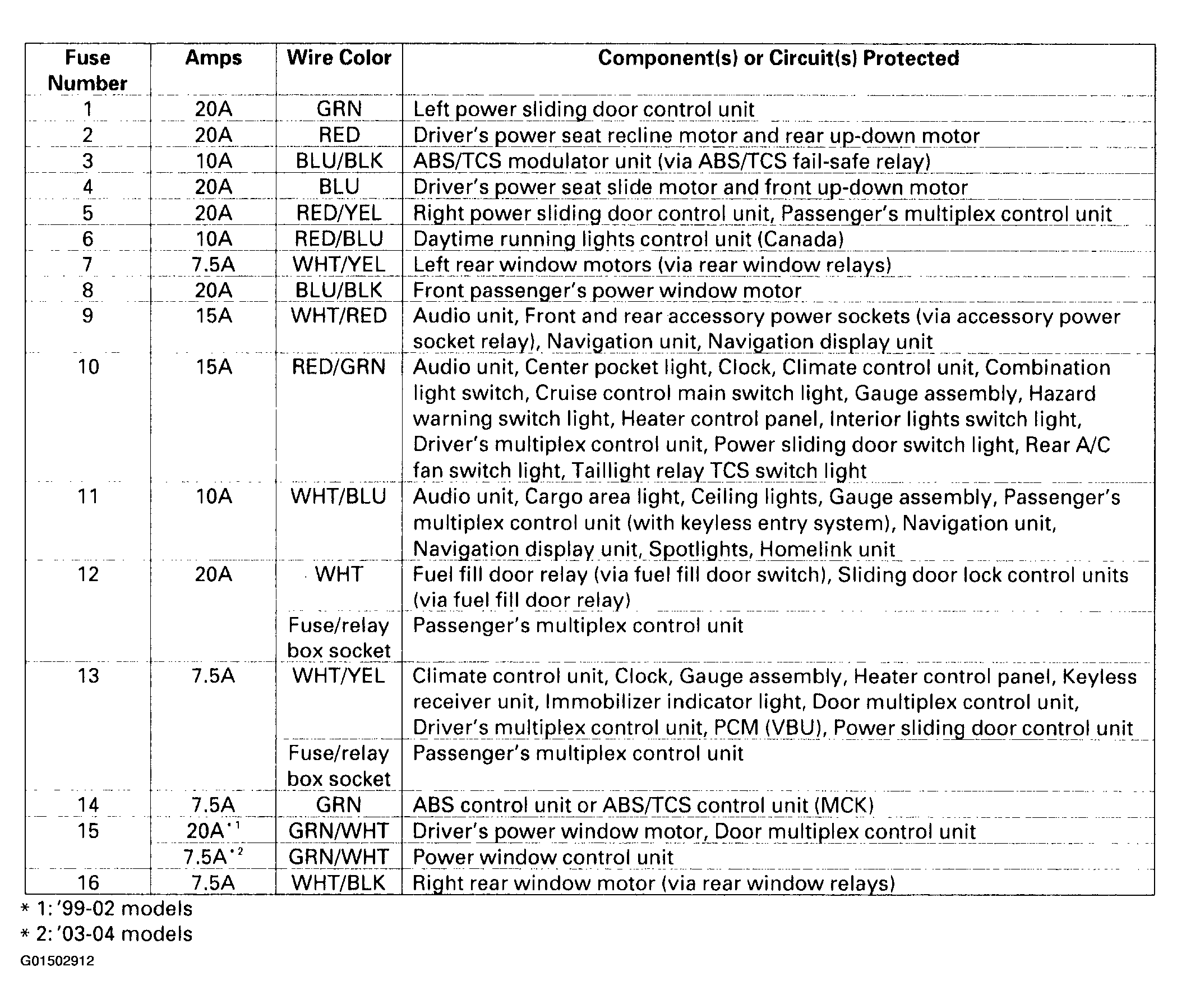

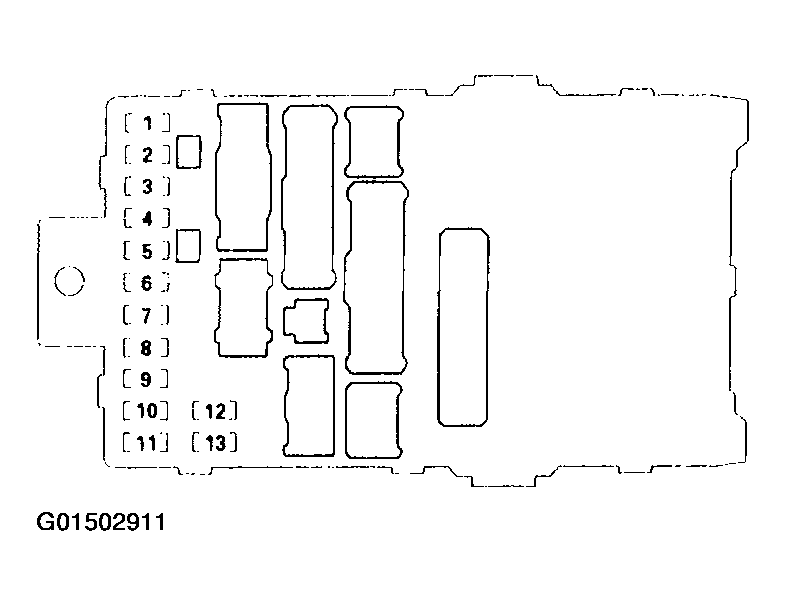

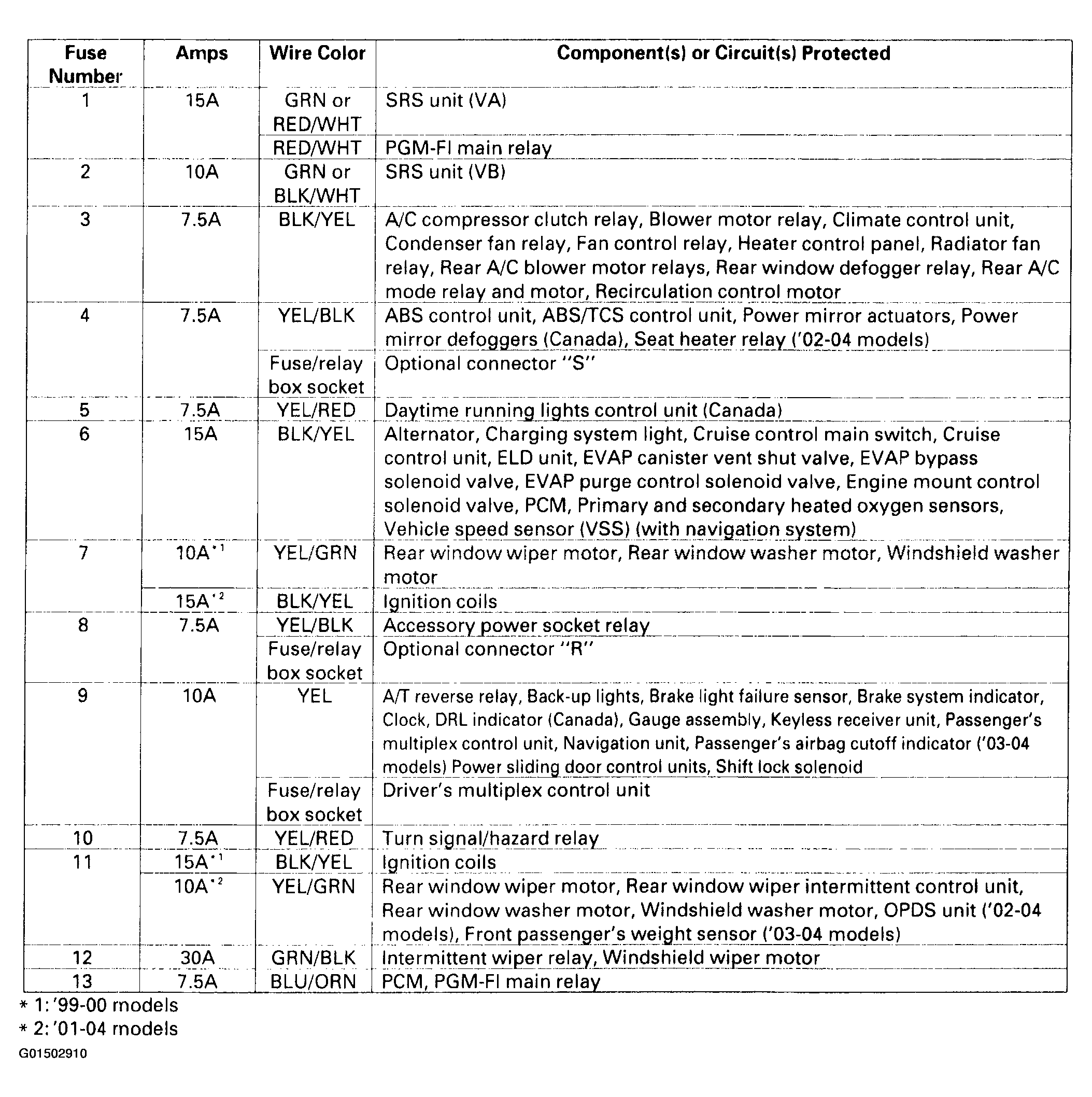

Fig 3: Driver's Under-Dash Fuse/Relay Box Identification Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Locating Driver's Under-Dash Fuse/Relay Box

Courtesy of AMERICAN HONDA MOTOR CO., INC.

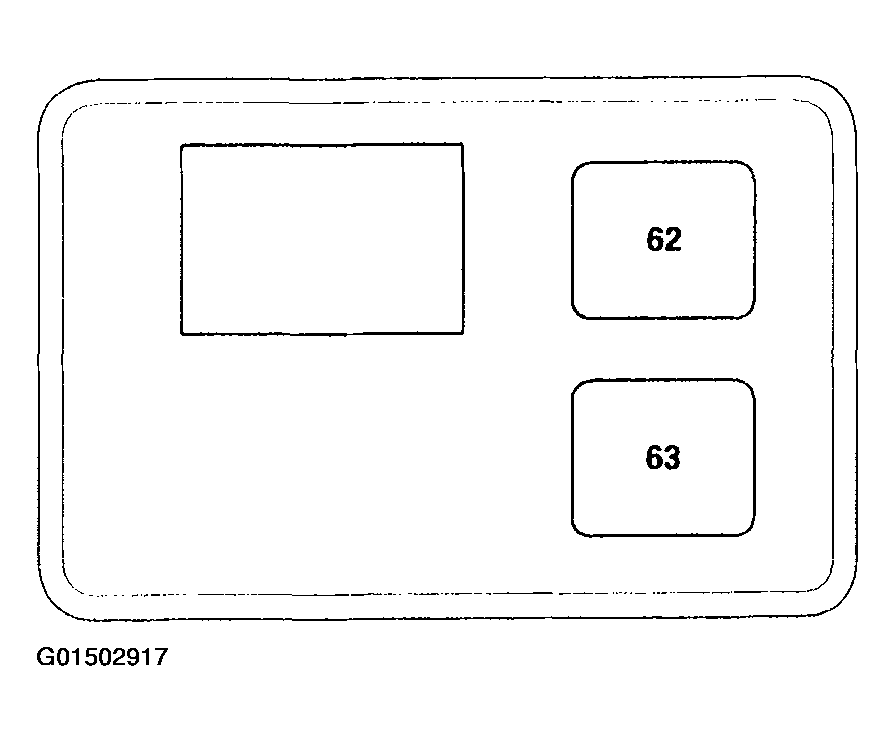

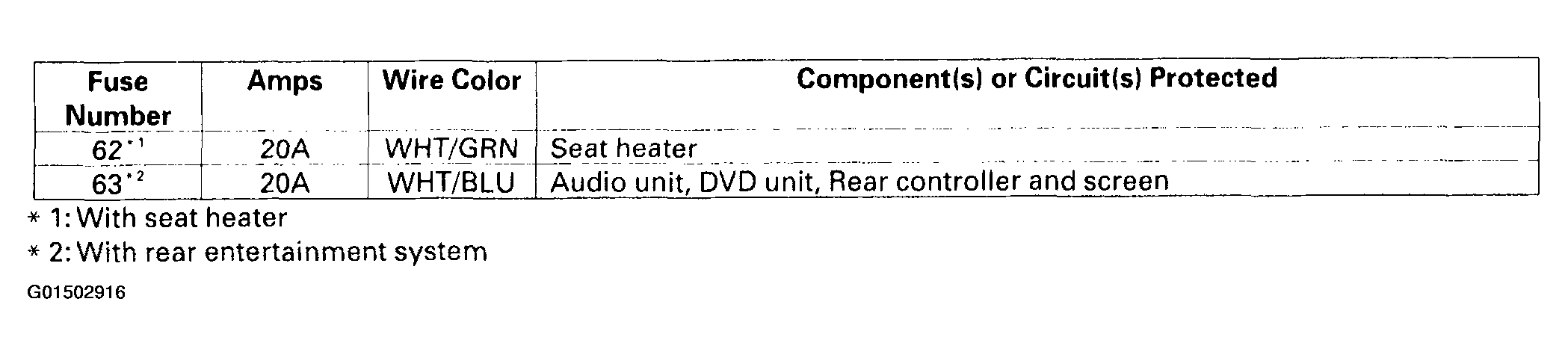

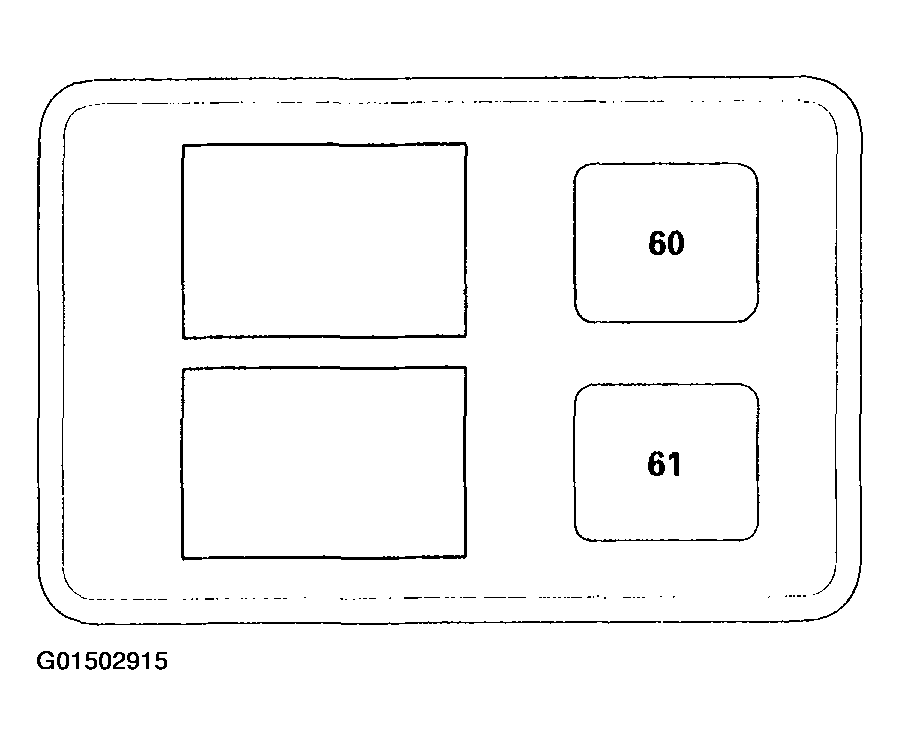

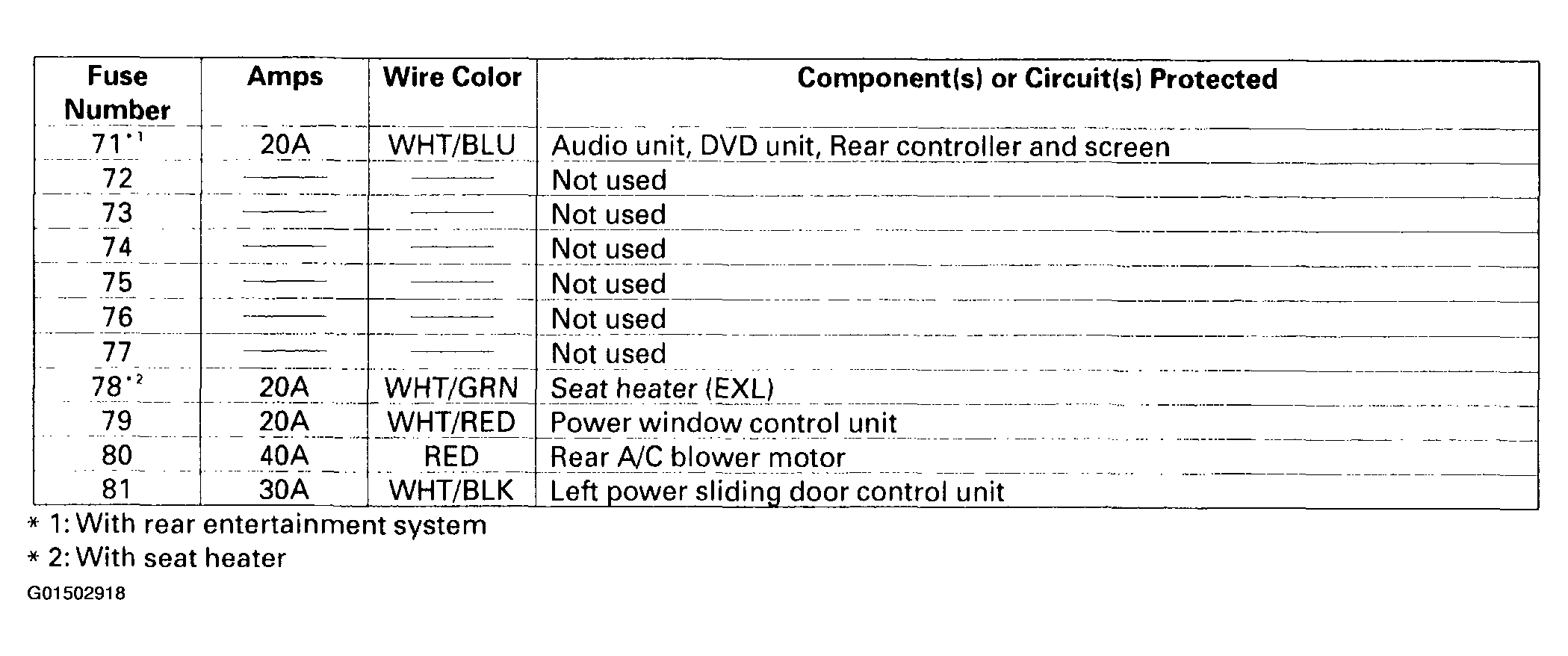

Fig 5: Passenger's Under-Dash Fuse/Relay Box Identification Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 6: Locating Passenger's Under-Dash Fuse/Relay Box

Courtesy of AMERICAN HONDA MOTOR CO., INC.

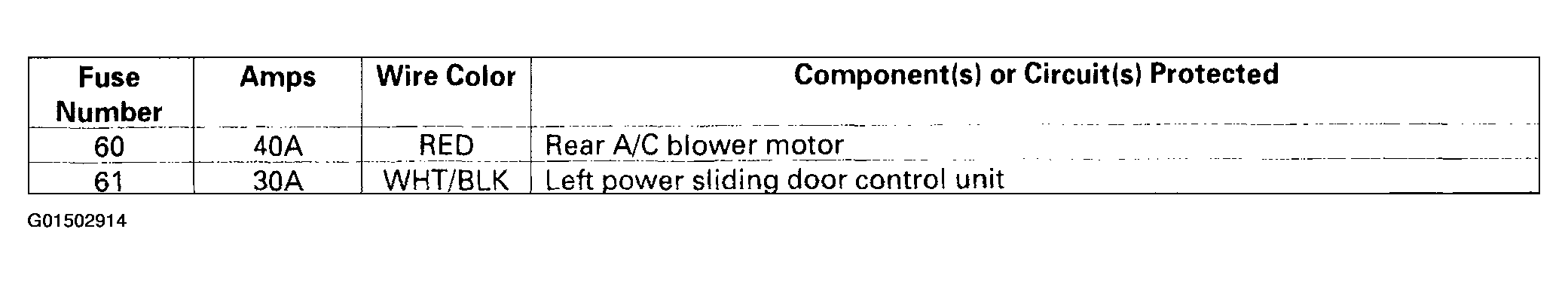

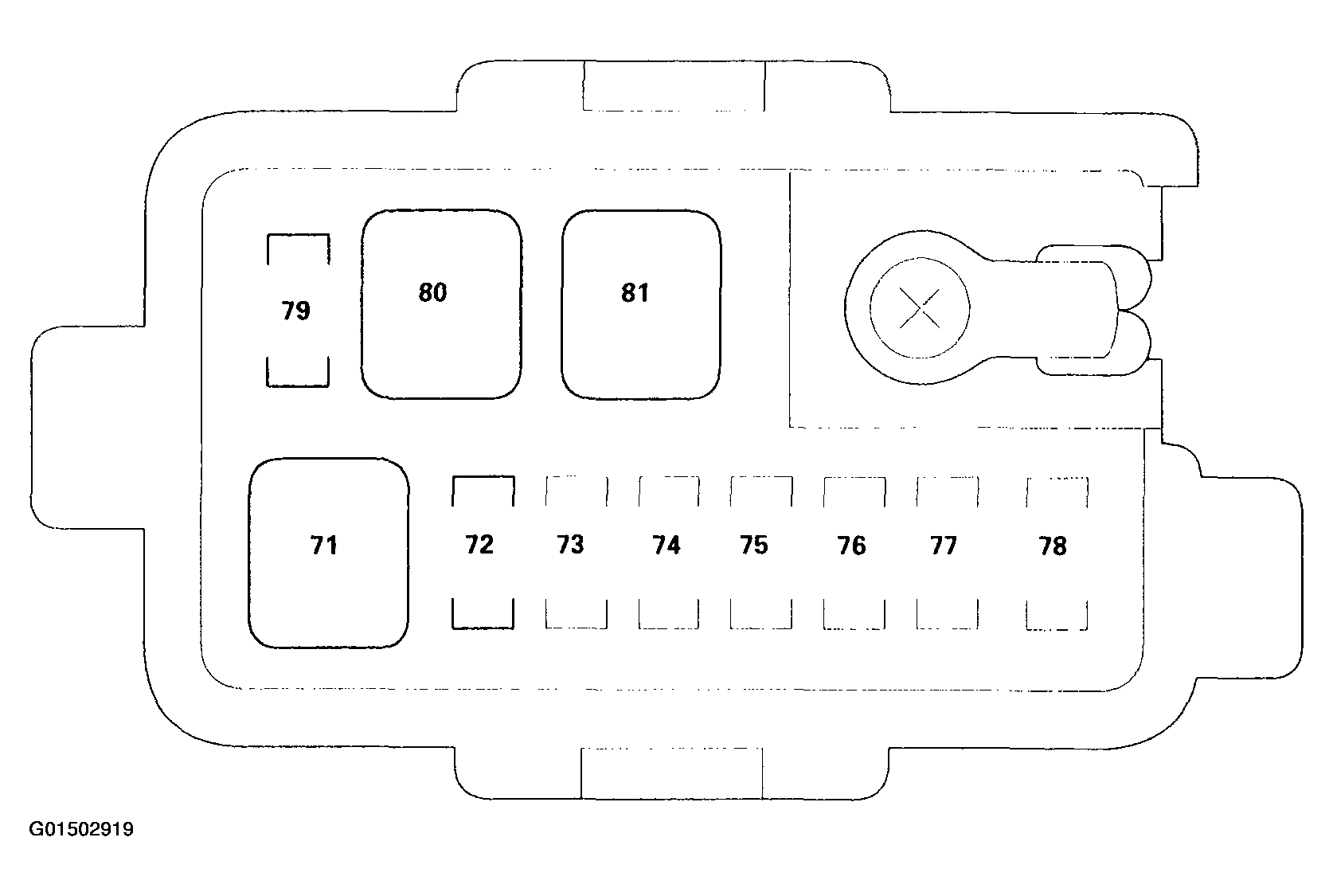

Fig 7: Multi-Fuse/Relay Box A Identification Chart (1999-2002 Models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 8: Locating Multi-Fuse/Relay Box A

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 9: Multi-Fuse/Relay Box B Identification Chart (2002 Model)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 10: Locating Multi-Fuse/Relay Box

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 11: Under-Hood Sub Fuse Identification Chart (2003-04 Models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 12: Locating Under-Hood Sub Fuse

Courtesy of AMERICAN HONDA MOTOR CO., INC.
