Power Door Locks/Factory Keyless/Factory Security
>>
Component Location Index
Component Location Index

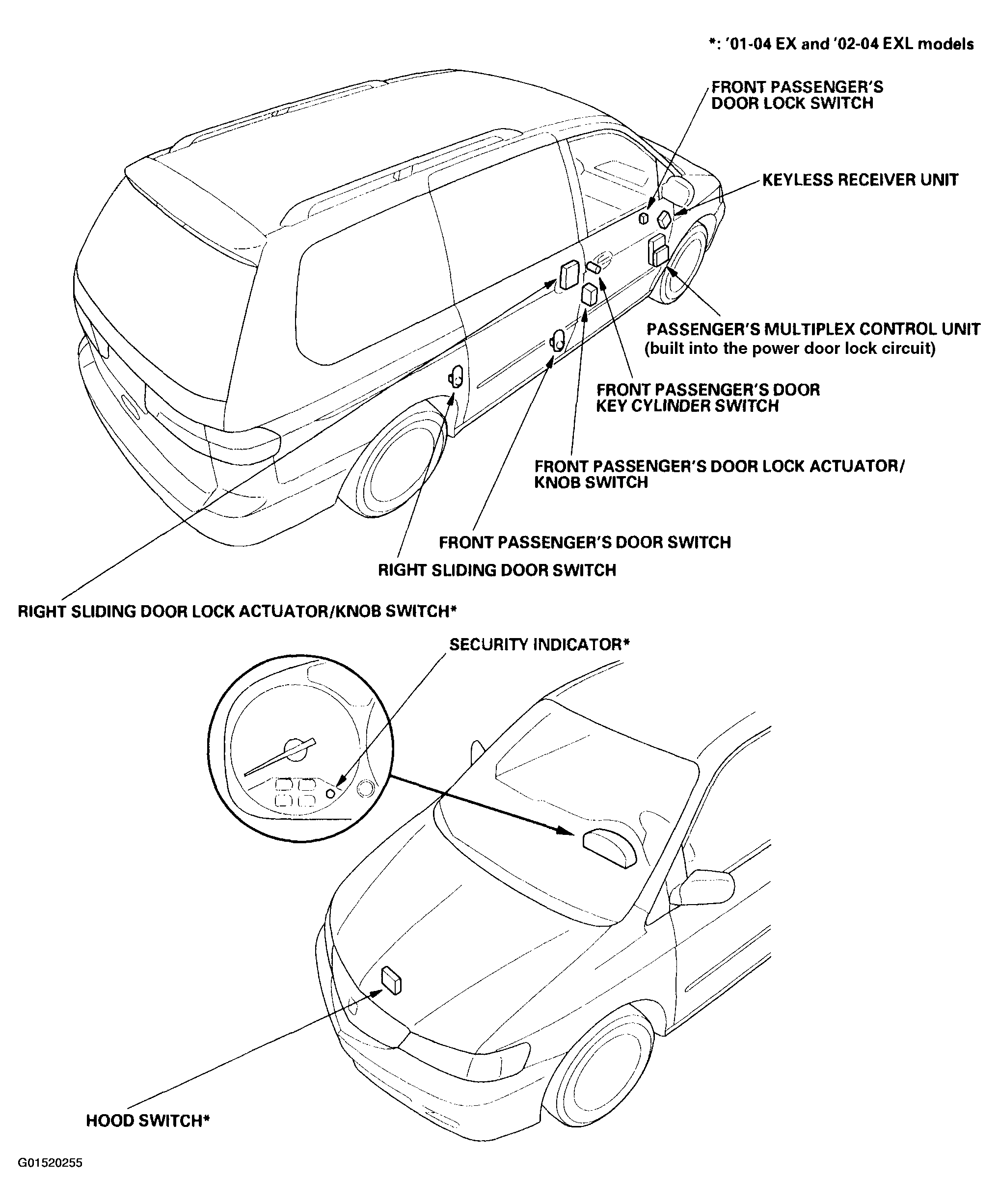

Fig 1: Identifying Power Door Locks/Factory Keyless/Factory Security Components (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

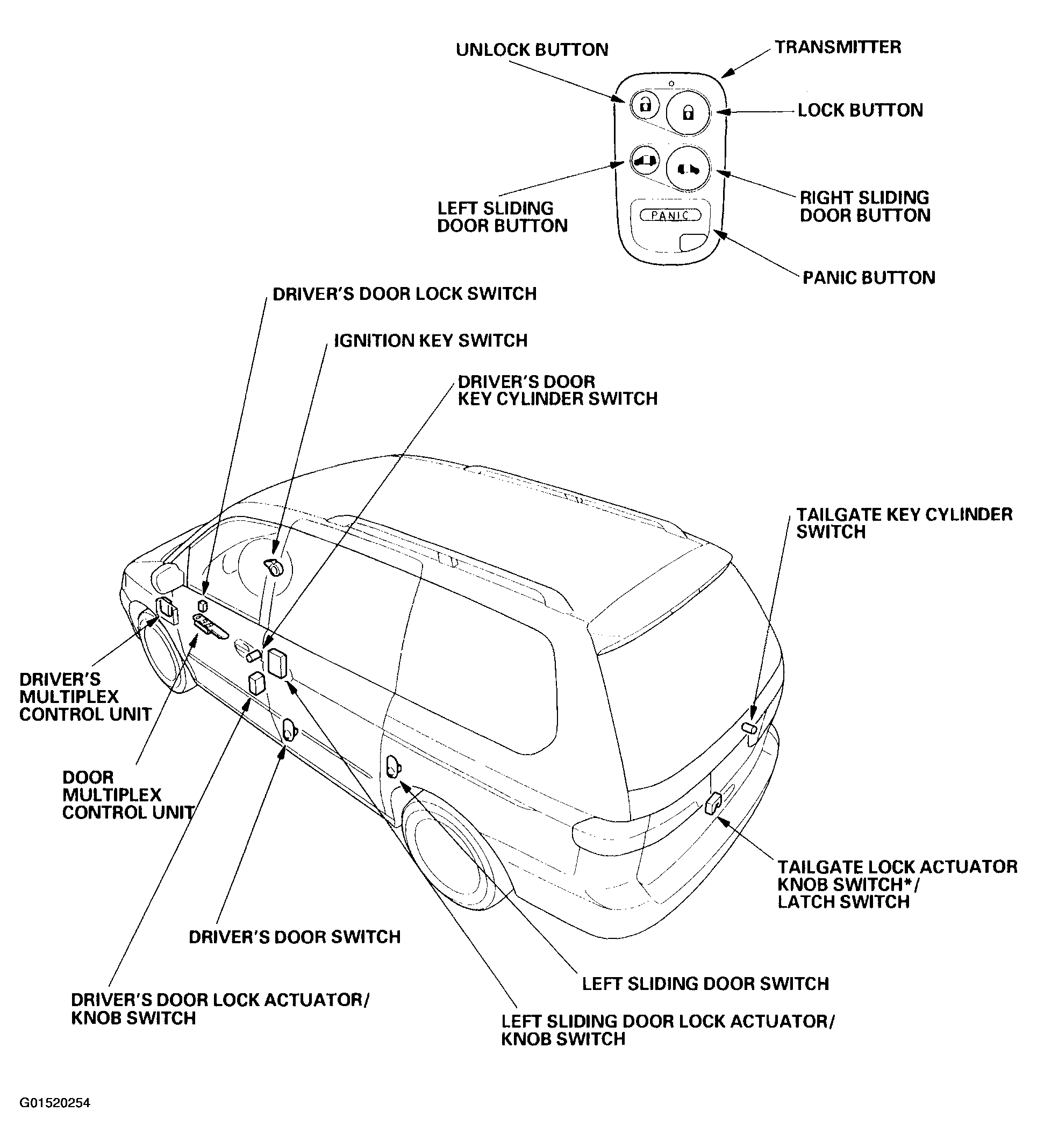

Fig 2: Identifying Power Door Locks/Factory Keyless/Factory Security Components (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
