Differential Carrier, Final Driven Gear Replacement

  1. Remove the bolts (left-hand threads) in a crisscross pattern in several steps, then remove the final driven gear (A) from the differential carrier (B).
  2. Install the final driven gear with the chamfer on the inside diameter facing the carrier. Align the marks on the driven gear and the carrier. Tighten the bolts in a crisscross pattern in several steps.

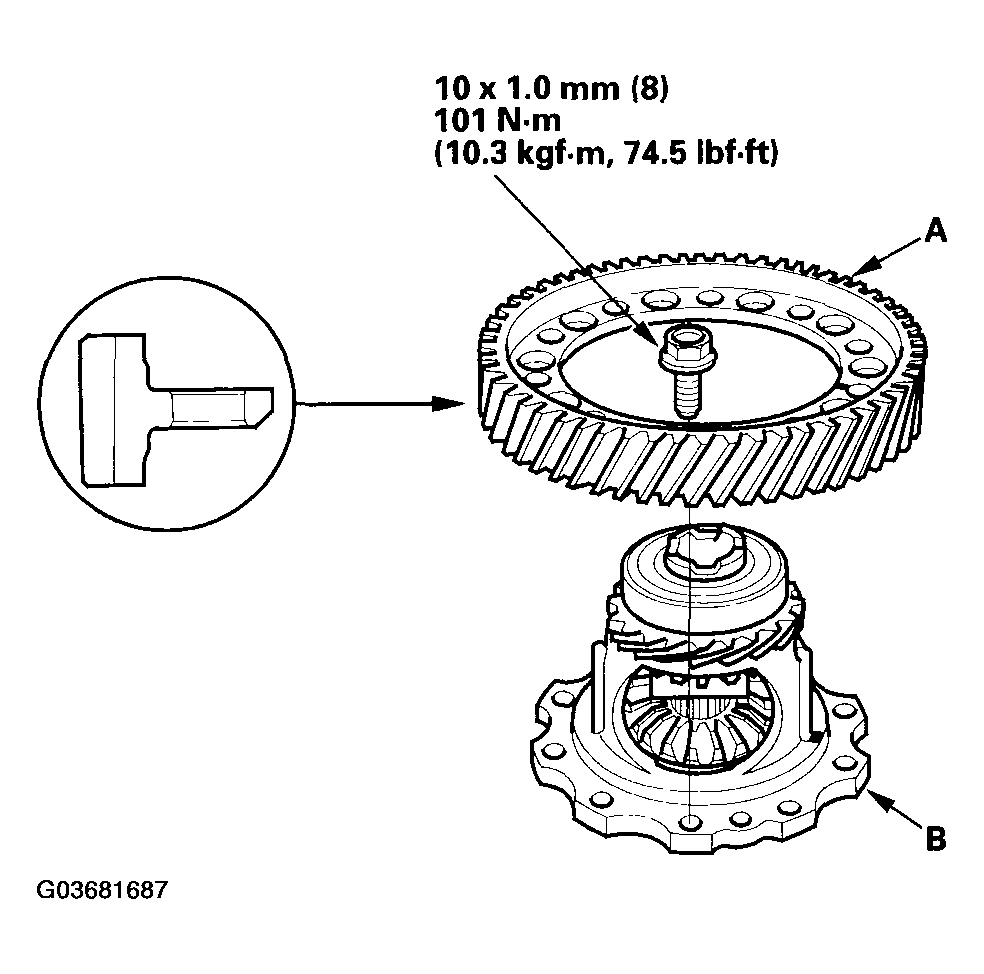

    3. Fig 1: Installing Final Driven Gear Bolt
    G03681687Courtesy of AMERICAN HONDA MOTOR CO., INC.
