Carrier Bearing/Speedometer Drive Gear Replacement

Special Tools Required

Driver, 40 mm I.D. 07746-0030100

1. Check the carrier bearings for wear and rough rotation. If they rotate smoothly and their rollers show no signs of wear, the bearings are OK.
2. Remove the carrier bearings (A) with a commercially available bearing puller (B) and bearing separator (C).

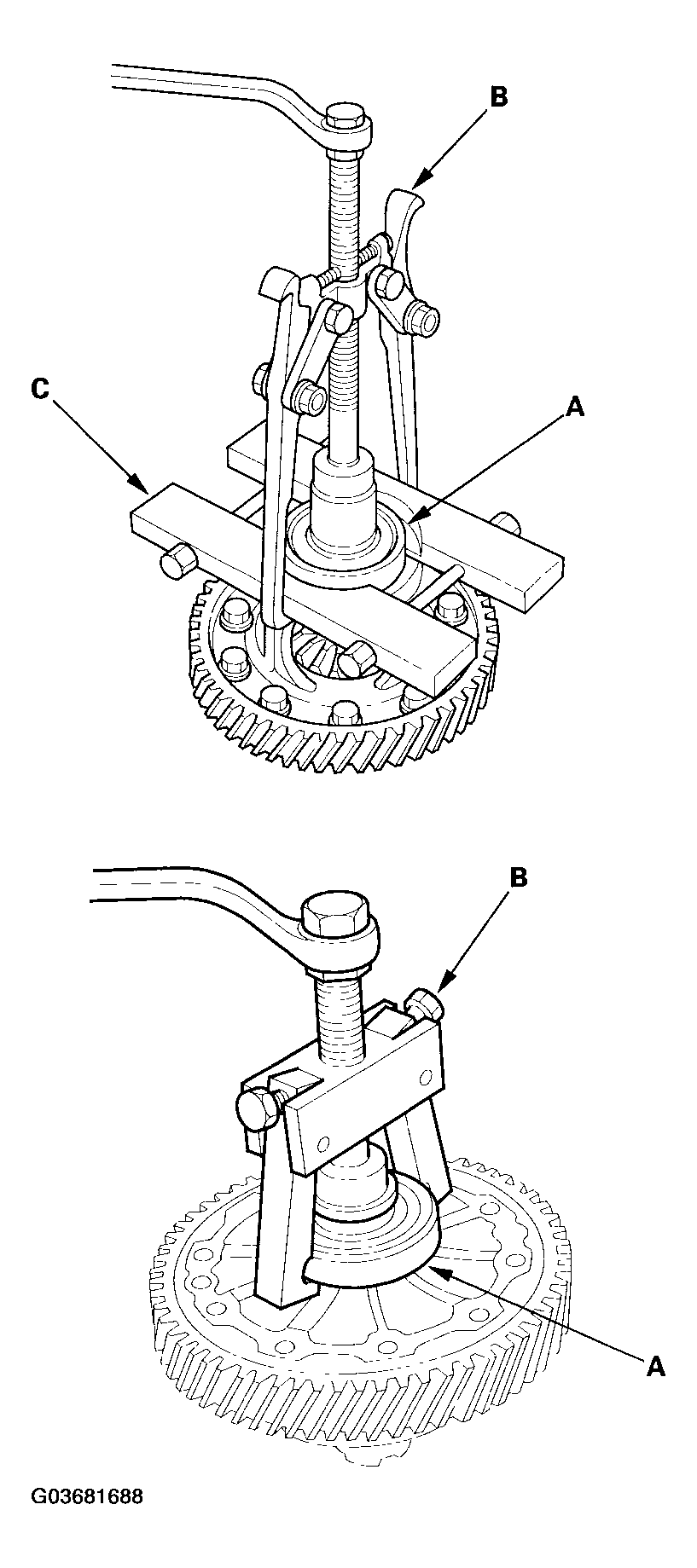

   Fig 1: Removing Carrier Bearings

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Remove the speedometer drive gear (A).

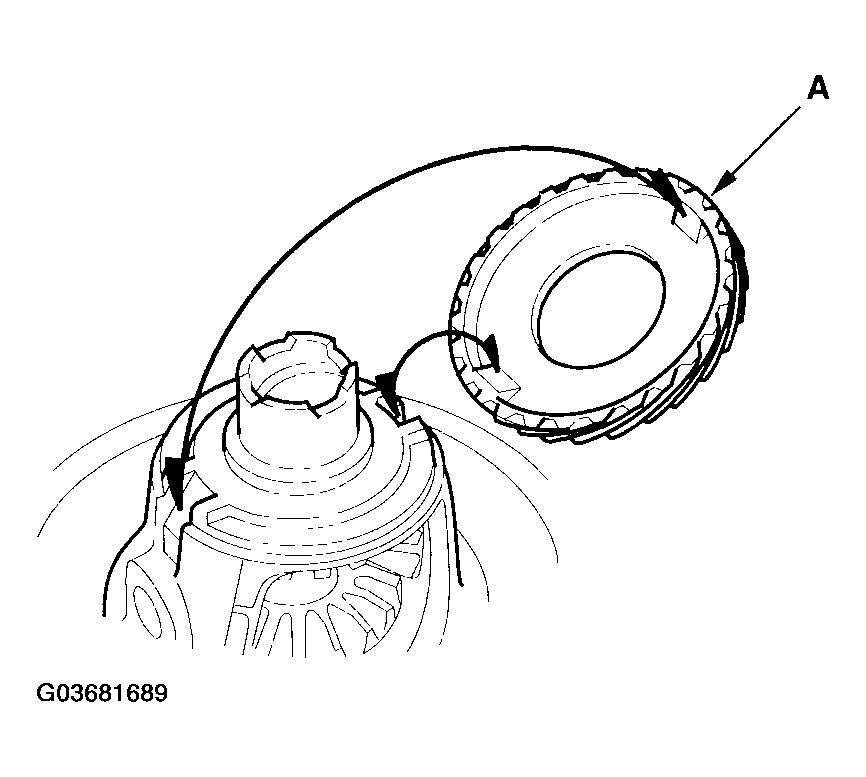

   Fig 2: Removing Speedometer Drive Gear

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Install the speedometer drive gear by aligning the finger of the speedometer drive gear with the groove of the differential carrier.
5. Install the new bearings (A) with the special tool and a press. Press on each bearing until it bottoms. There should be no clearance between the bearings and the carrier.
   Fig 3: Installing Bearings With Special Tool And Press
