Repair and Diagnosis
>>
Heating, Ventilation & A/C (HVAC)
>>
HVAC Control Systems
>>
Heating System
>>
Circuit Diagram
Circuit Diagram

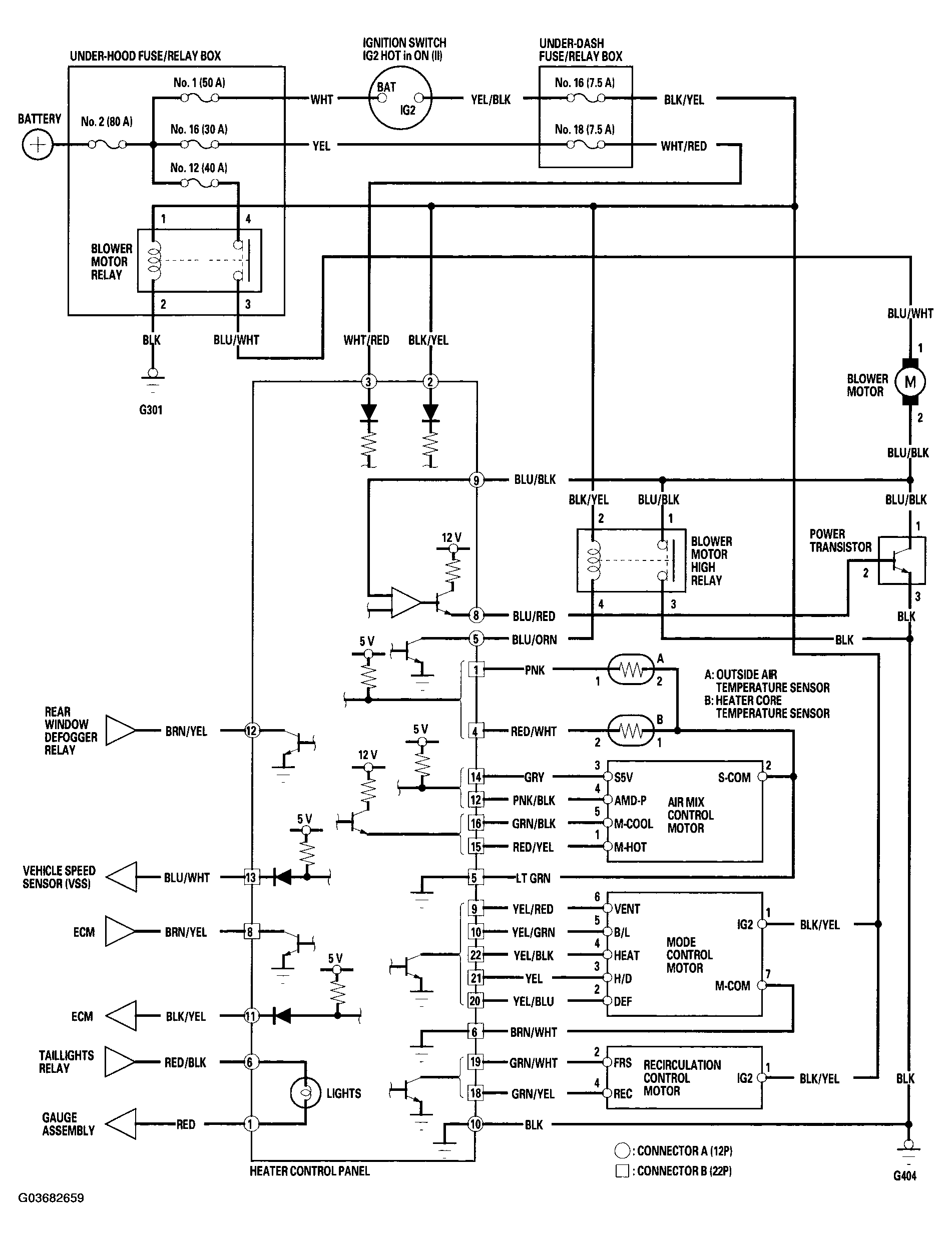

Fig 1: Heating Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
