Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Fuel And Emissions Systems
>>
System Description
>>
Vacuum Hose Routing
>>
CVT model, 2006 M/T model
CVT model, 2006 M/T model

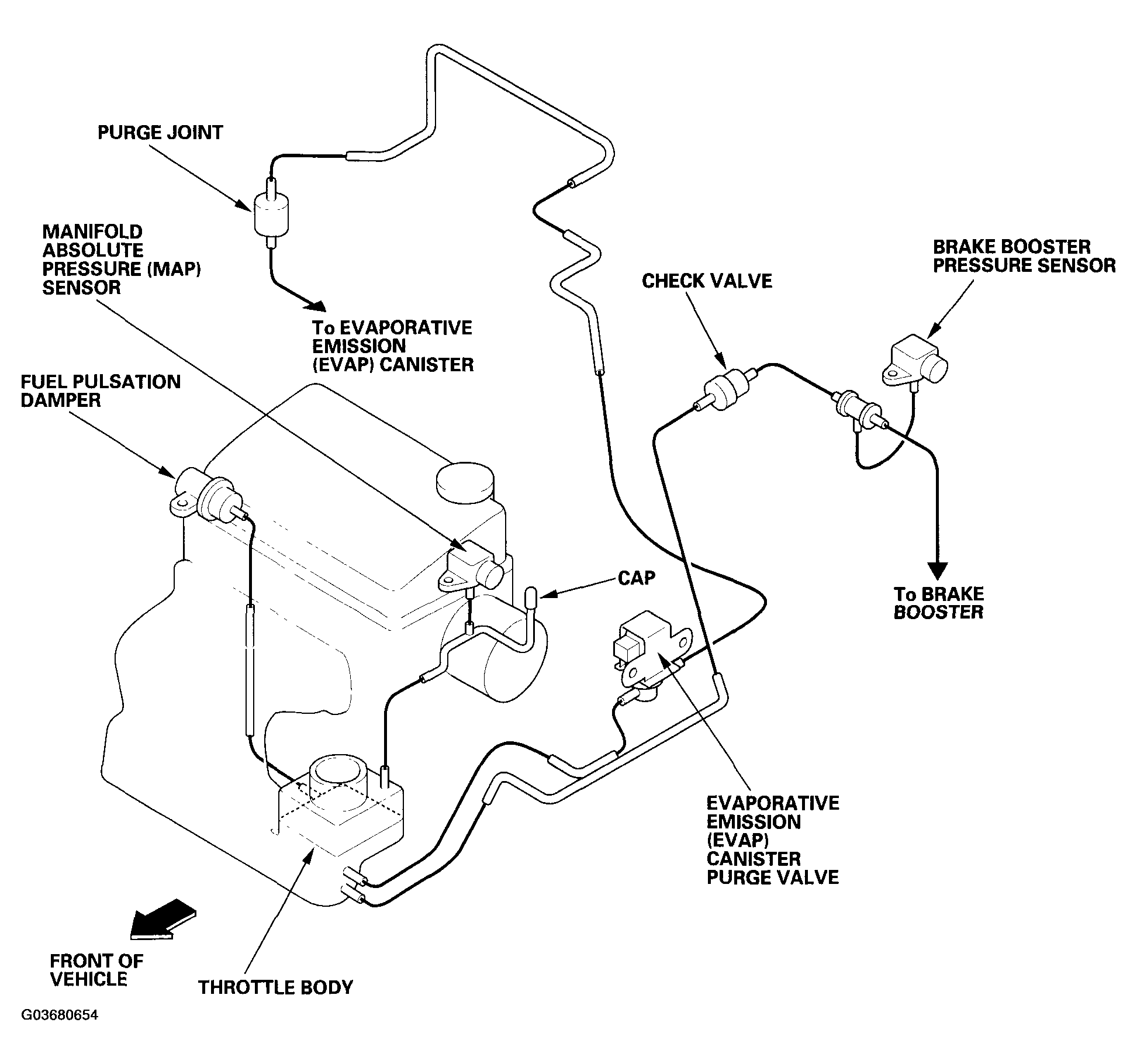

Fig 1: Identifying Vacuum Hose Routing (CVT Model, 2006 M/T Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
