Main Switch

Carefully pry cruise control main switch from instrument panel. Disconnect cruise control main switch electrical connector. Check continuity between specified cruise control main switch terminals, with cruise control main switch in appropriate position. See Fig 1 .

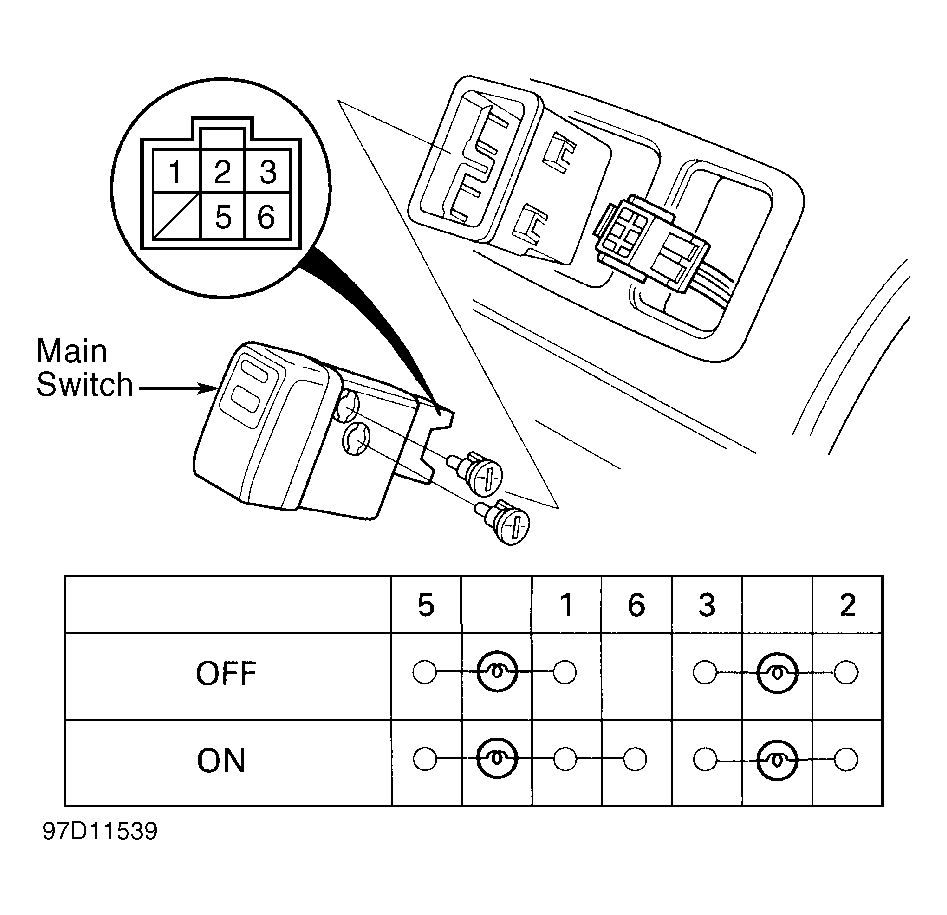

Fig 1: Identifying Terminals Of Main Switch (CR-V)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
