Interior Fuse Box

NOTE: Interior fuse box is located under driver's side of instrument panel. See Fig 1 .

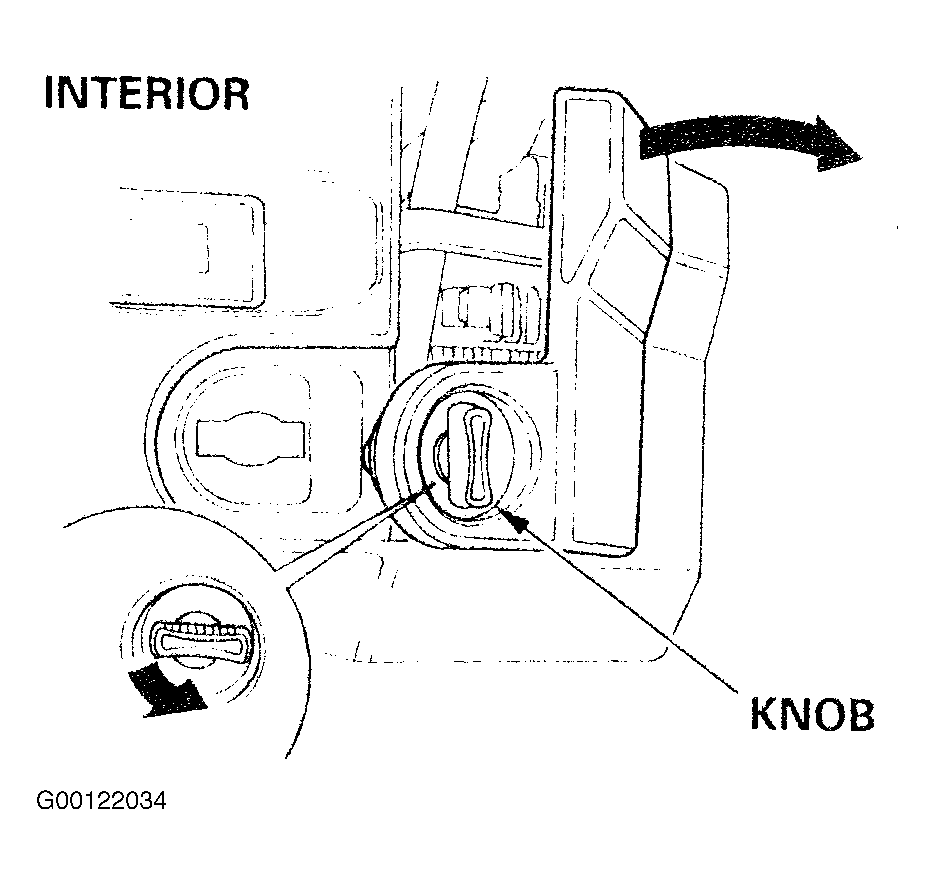

Fig 1: Locating Interior Fuse Box
G00122034Courtesy of AMERICAN HONDA MOTOR CO., INC.

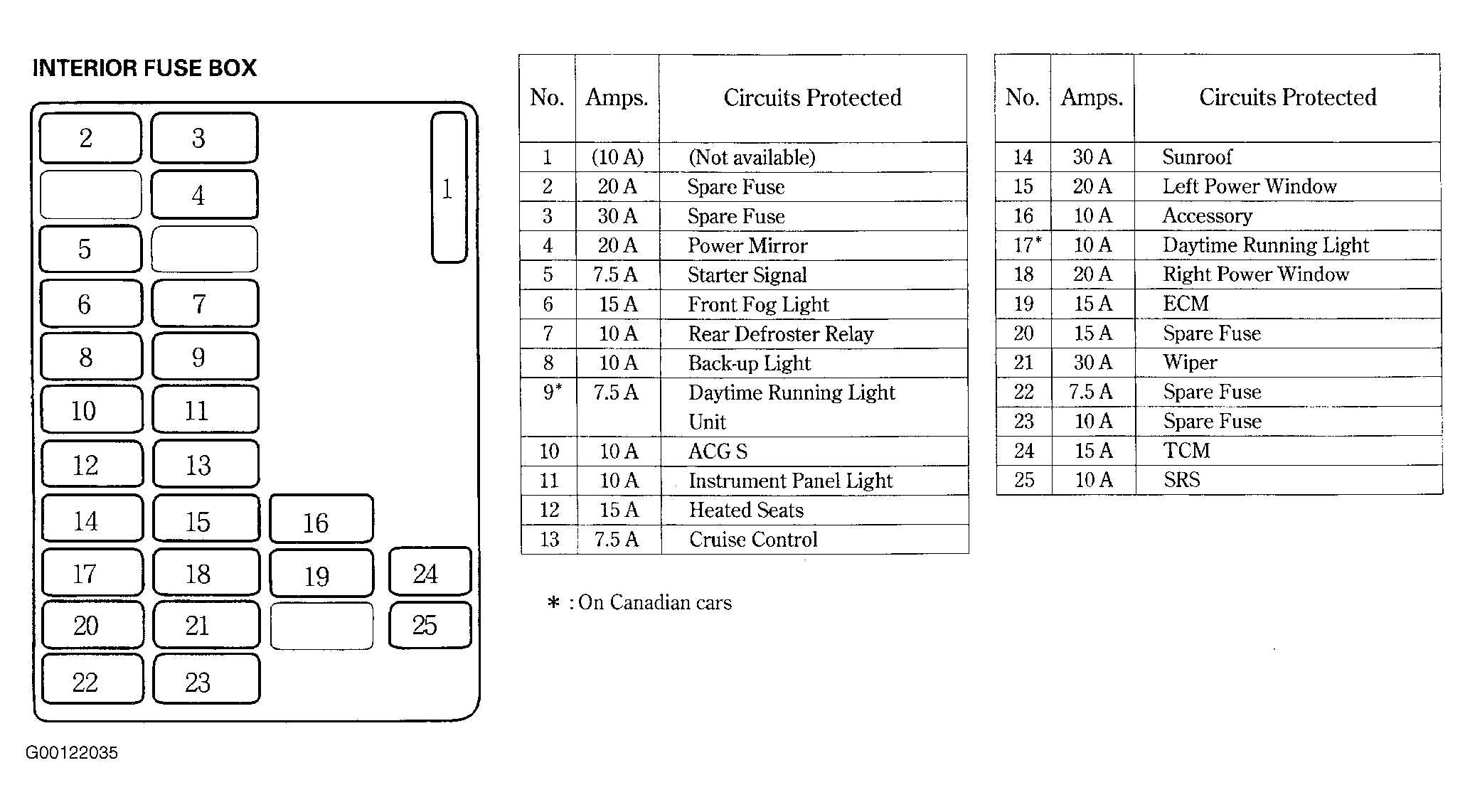

Fig 2: Identifying Interior Fuse Box Components & Legend
G00122035Courtesy of AMERICAN HONDA MOTOR CO., INC.
