Connector Identification

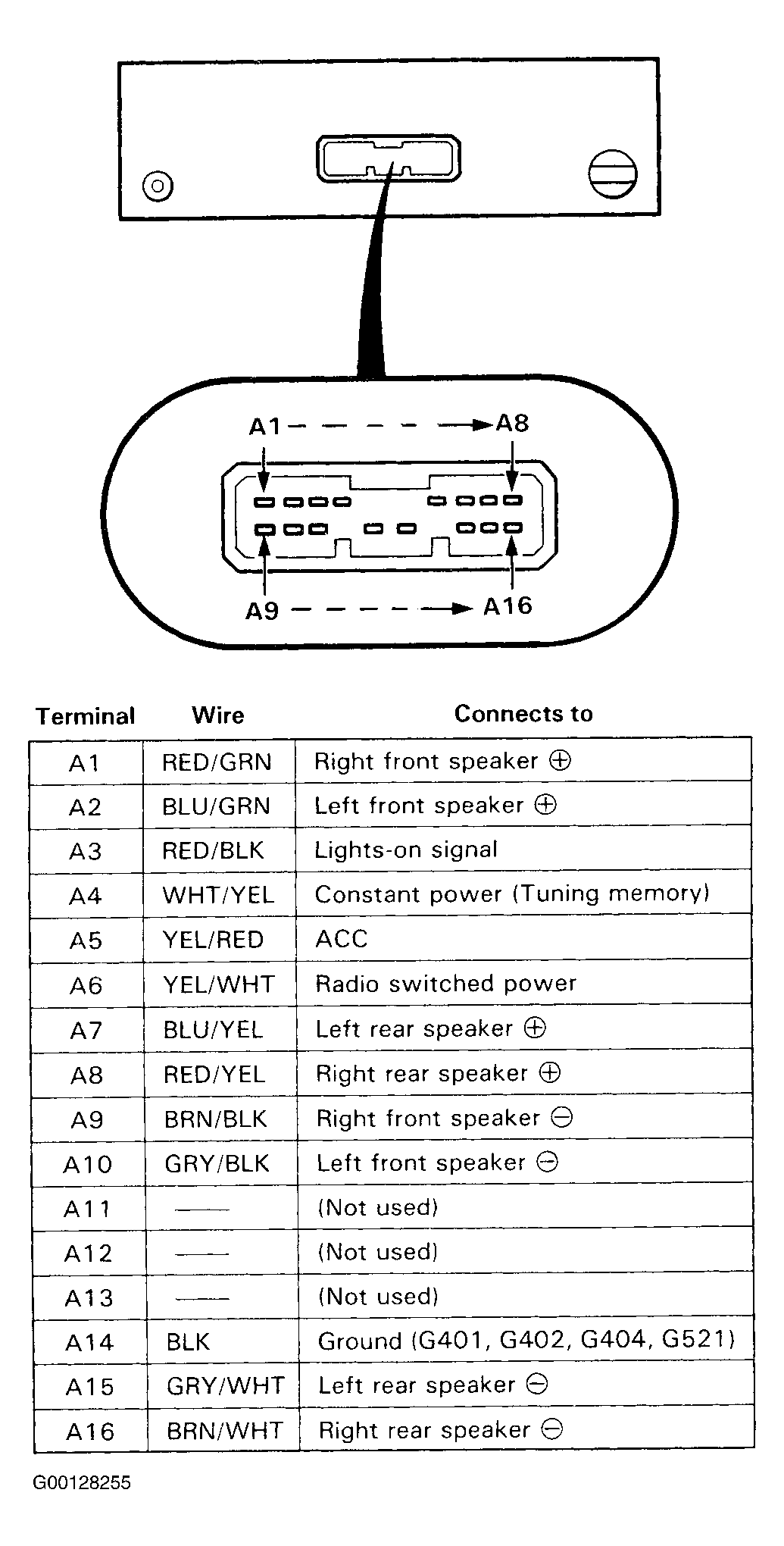

Fig 1: Identifying Stereo Connector Terminals
G00128255Courtesy of AMERICAN HONDA MOTOR CO., INC.

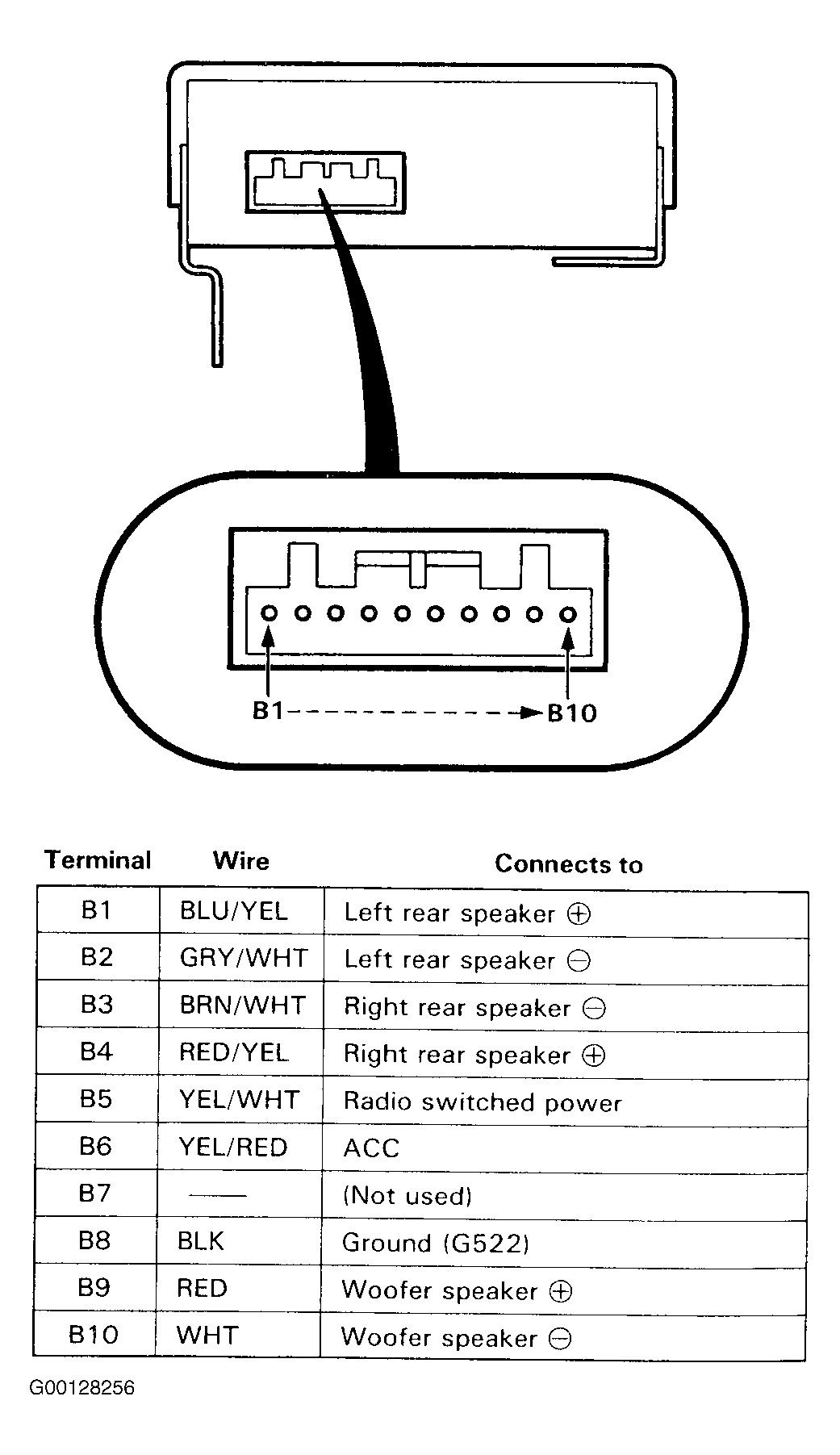

Fig 2: Identifying Woofer Amplifier Connector Terminals
G00128256Courtesy of AMERICAN HONDA MOTOR CO., INC.
