Relieving Accumulator/Line Pressure

Drain brake fluid from master cylinder and modulator reservoir. Remove Red cap from maintenance bleeder screw. See Fig 1 . Using ABS T-Wrench (07HAA-SG00101), loosen maintenance bleeder screw. Turn T-Wrench 1/4 turn to relieve accumulator line pressure. Turn T-Wrench one complete turn to thoroughly drain pressure fluid. Tighten bleeder screw, and install Red cap.

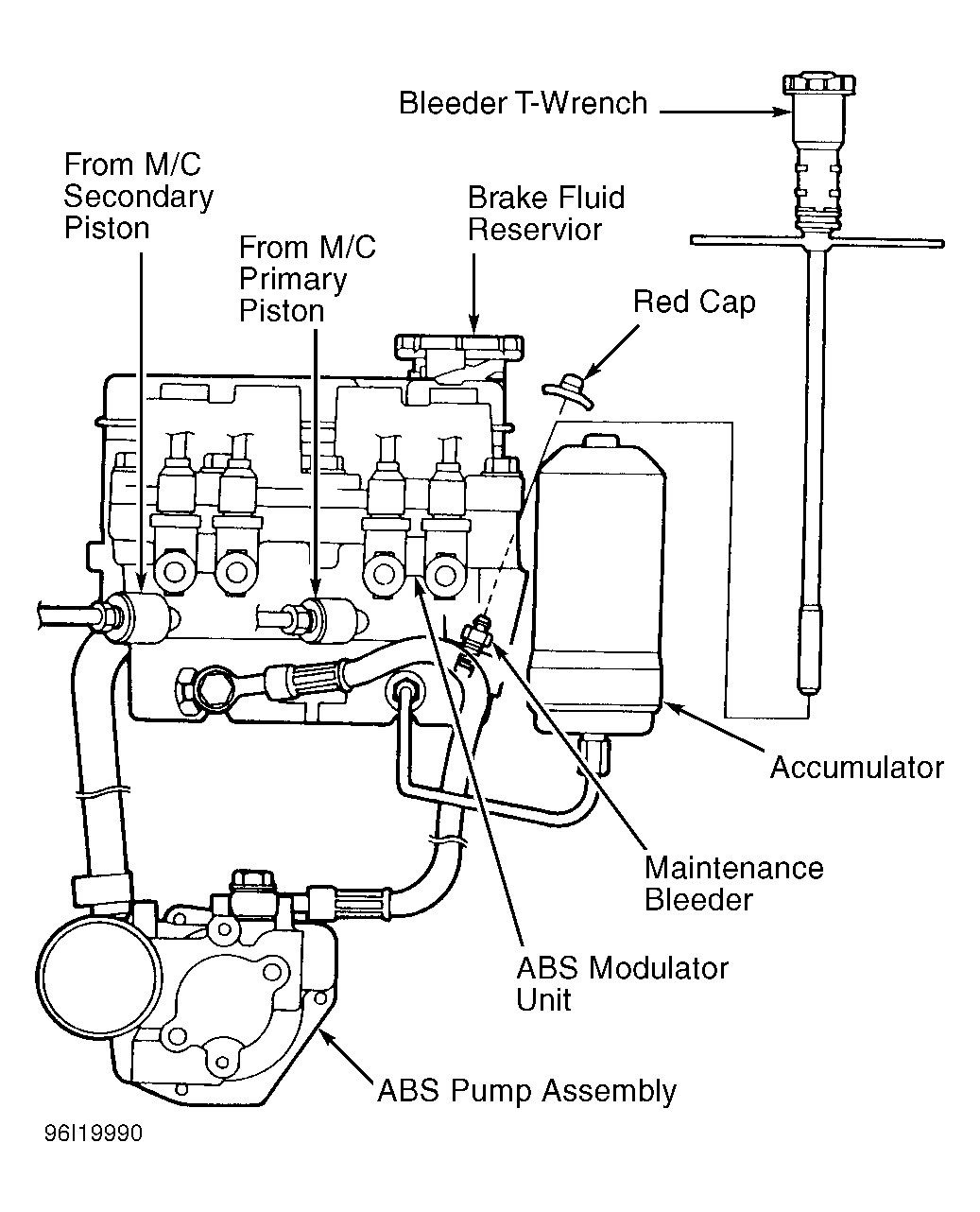

Fig 1: Relieving Accumulator/Line Pressure (Typical)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
