Cruise Control Unit Input
- Turn ignition off. Remove dashboard lower left cover. Cruise control unit is located under left side kick panel. Unplug cruise control unit 14-pin connector.

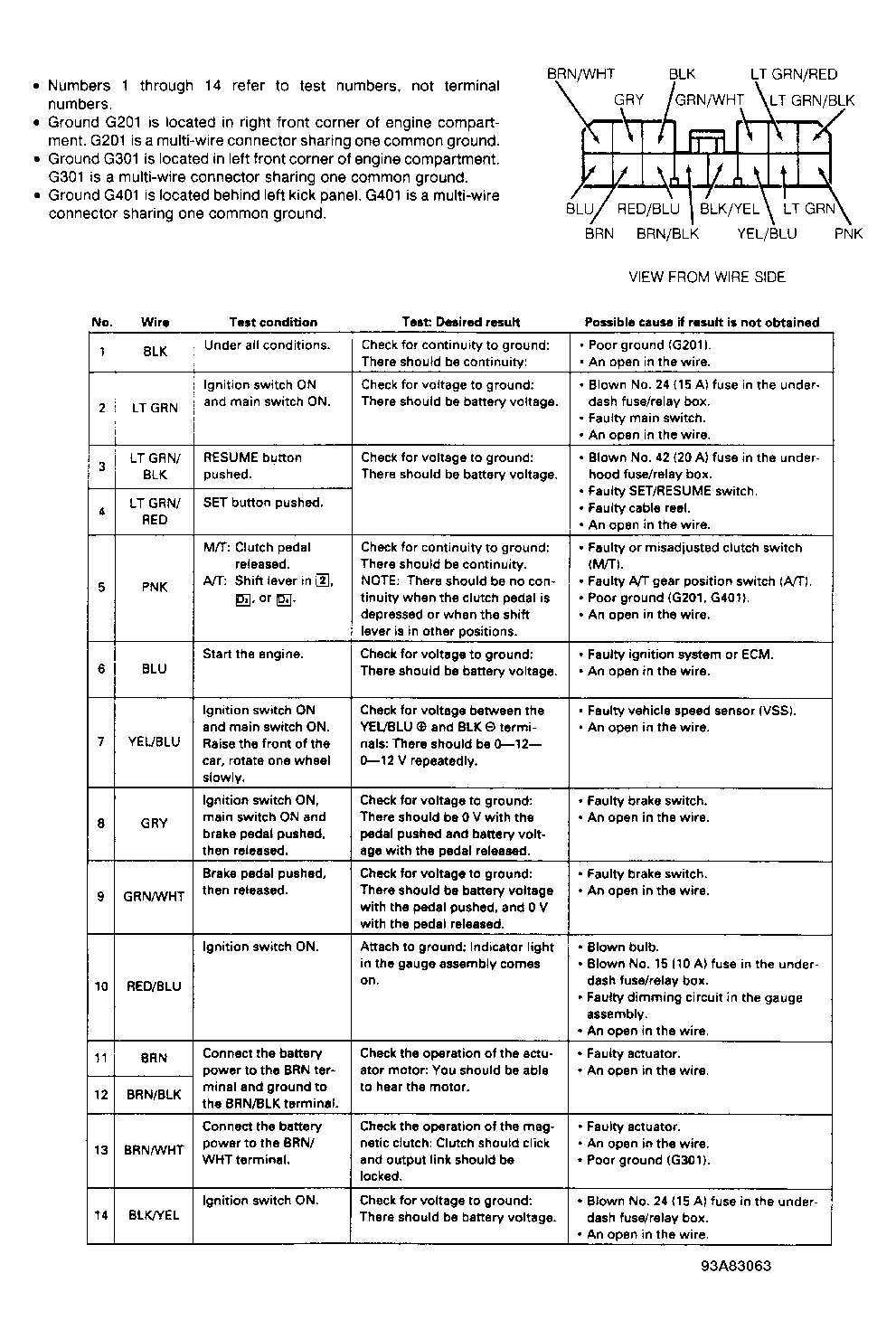

- Using a DVOM, perform cruise control unit input tests. See Fig 1
. If all input test results are okay, check cruise control unit connector for damage and proper fit to cruise control unit. If connector is okay and cruise control is still malfunctioning, replace cruise control unit.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
