System Tests

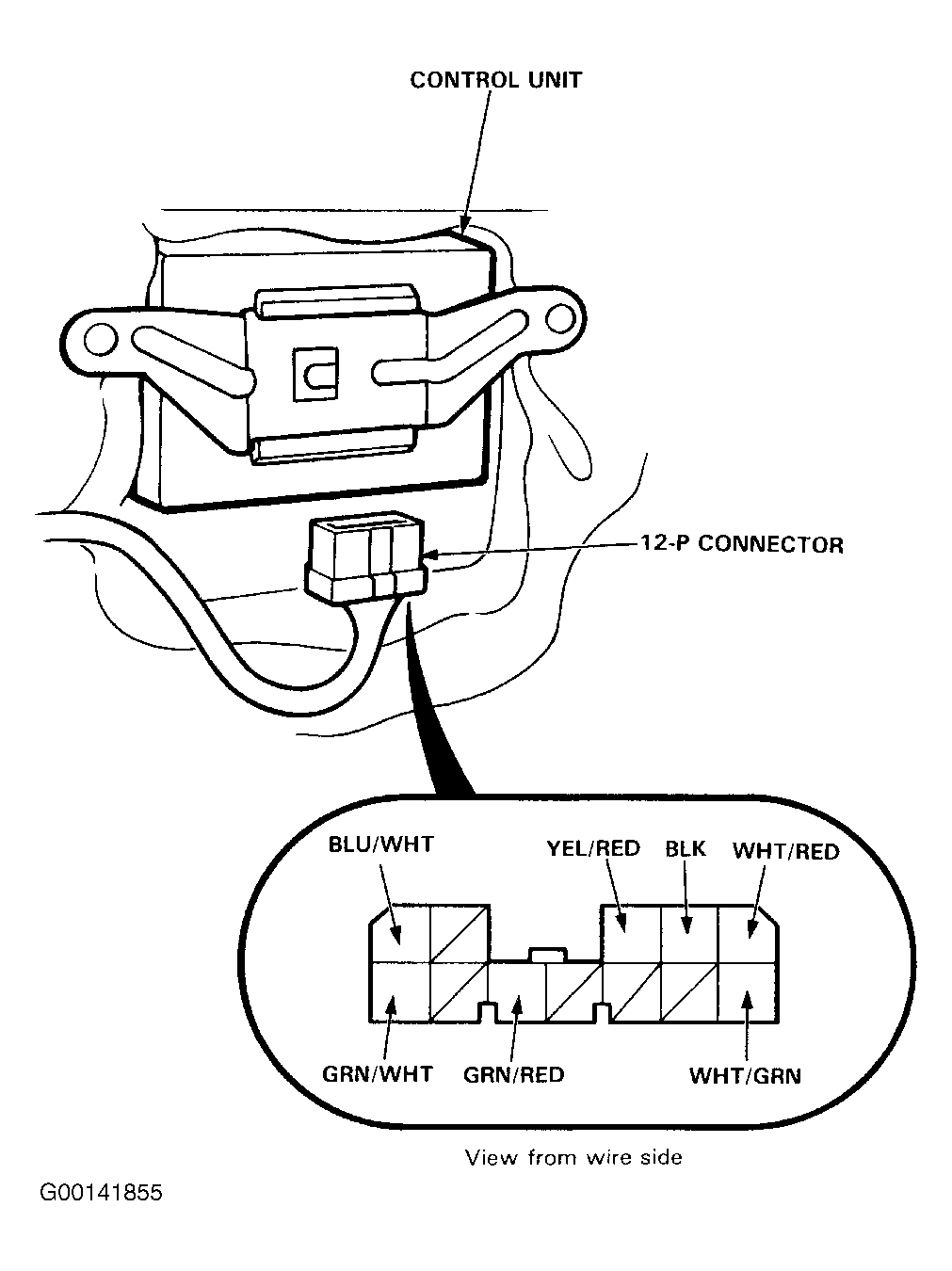

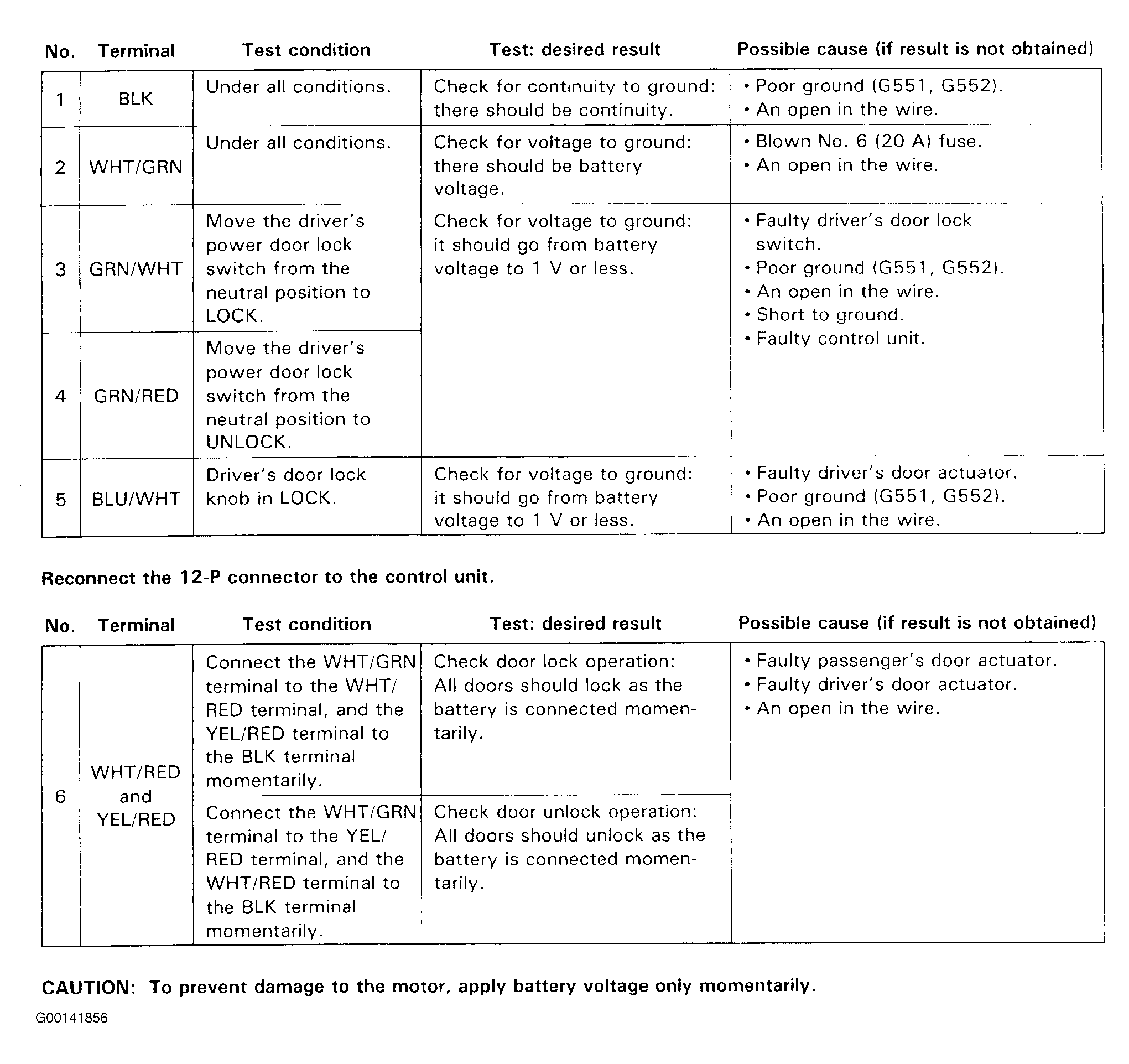

Fig 1: Power Door Lock Control Unit Input Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Power Door Lock System Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
