Control Units

CONTROL UNITS LOCATION

Component Location

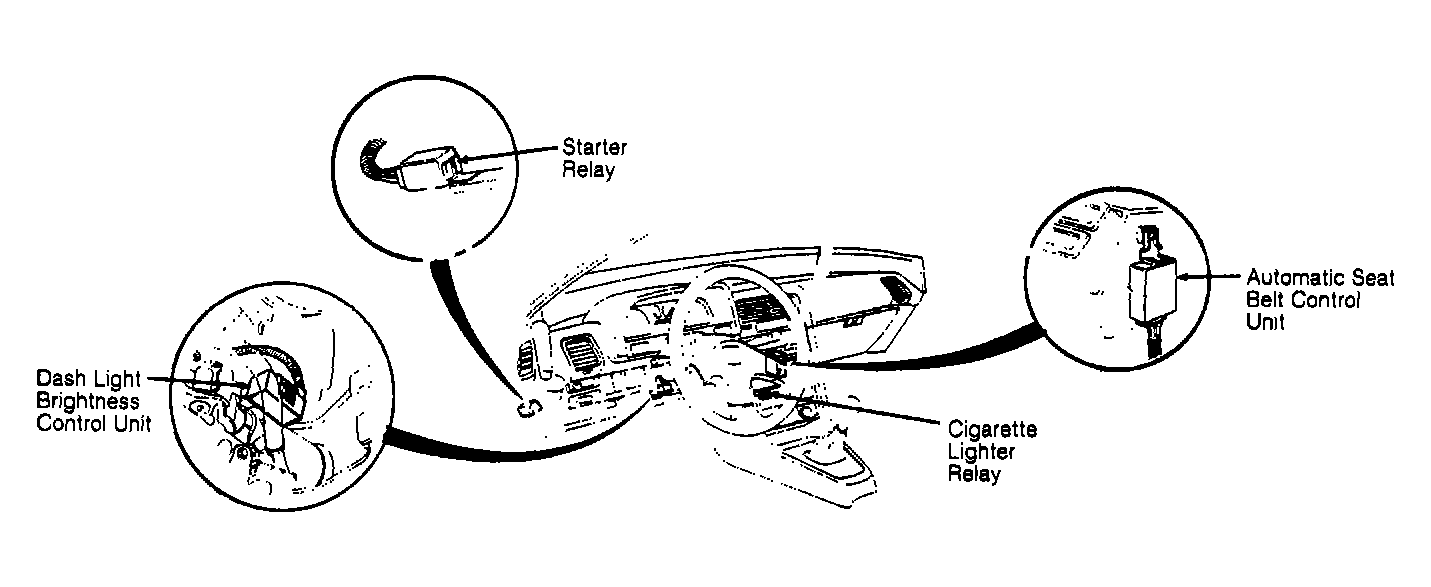

Automatic Shoulder Seat Belt Control Unit Behind center of instrument panel, on heater assembly. See Figure .
Dash Light Brightness Control Unit Behind instrument panel, on right side of steering column. See Figure .
Dash Light Brightness Controller Left side of instrument panel. See Figure .

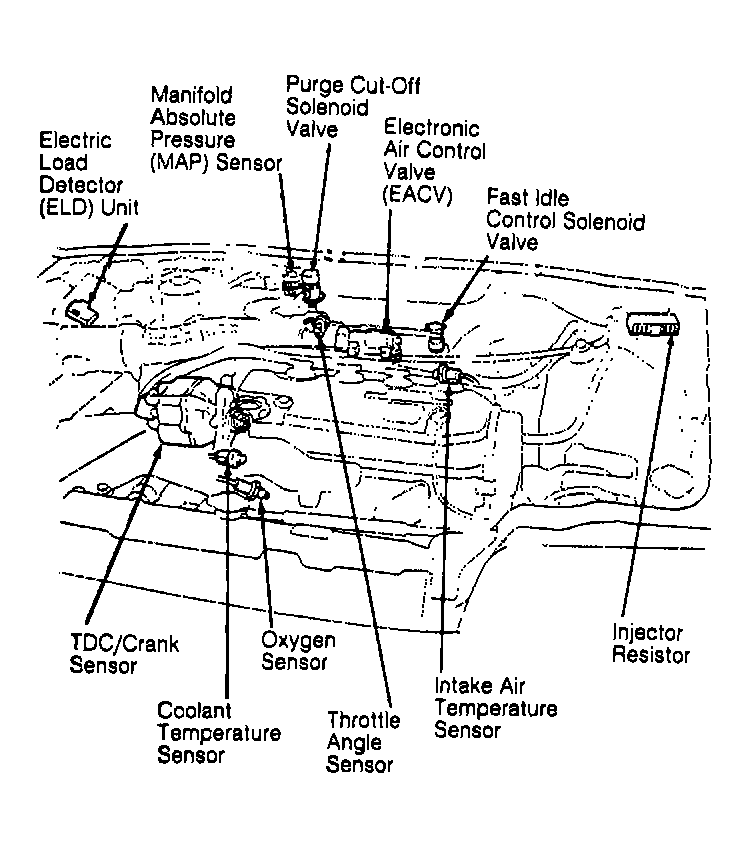

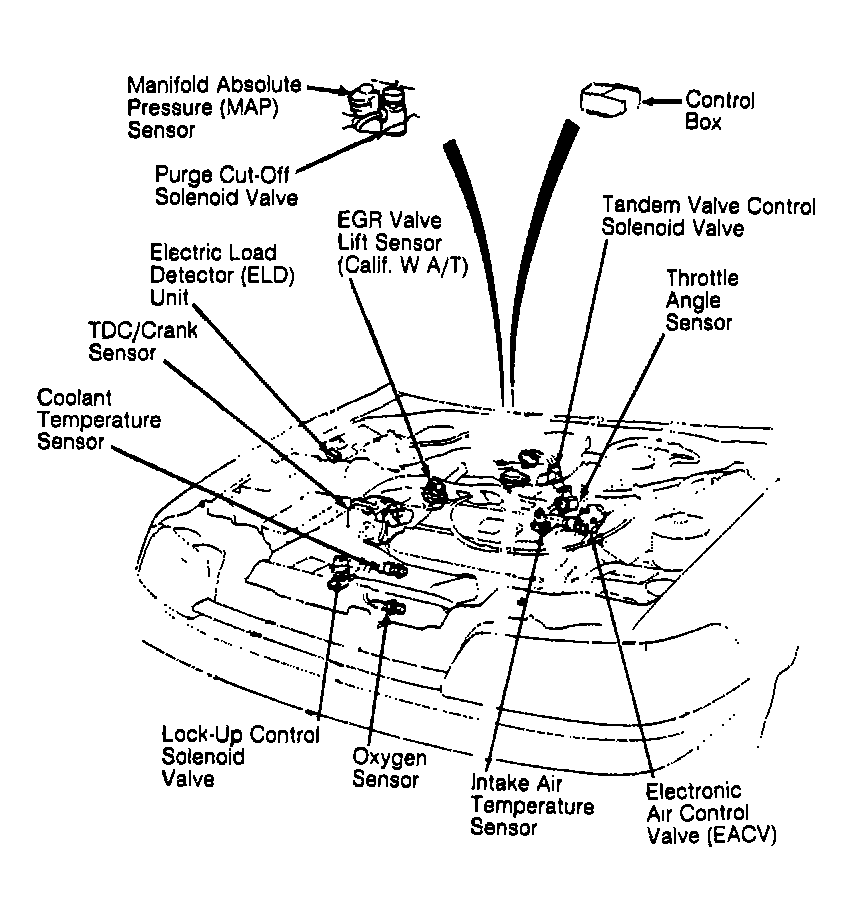

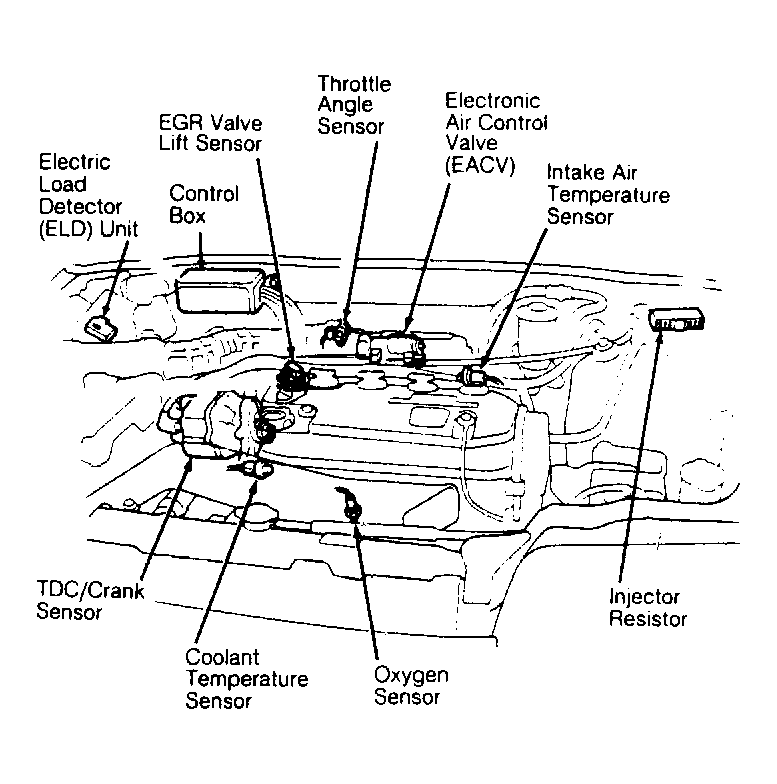

Electric Load Detector (ELD) Unit Incorporated in fuse/relay block at right rear of engine compartment, above shock tower. See Figure , Figure , Figure & Figure .
Integrated Control Unit On fuse/relay block behind left side of instrument panel. See Figure .
Interlock Control Unit Under driver's seat.

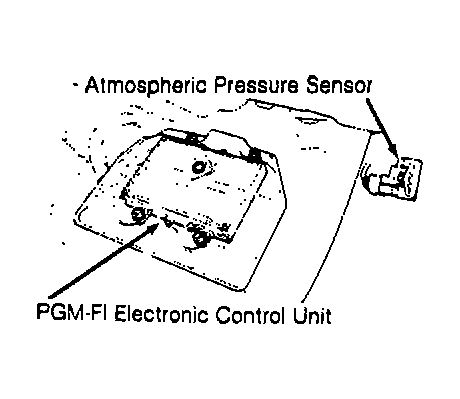

PGM-FI Electronic Control Unit Under front floor panel carpeting on passenger's side. See Figure & Figure .
