Wiper/Washer Switch

Disconnect 7-pin and 8-pin combination switch connectors to fuse box and 13-pin wiper/washer switch connector to main wire harness. Check continuity between specified terminals in each switch position. See Fig 1 .

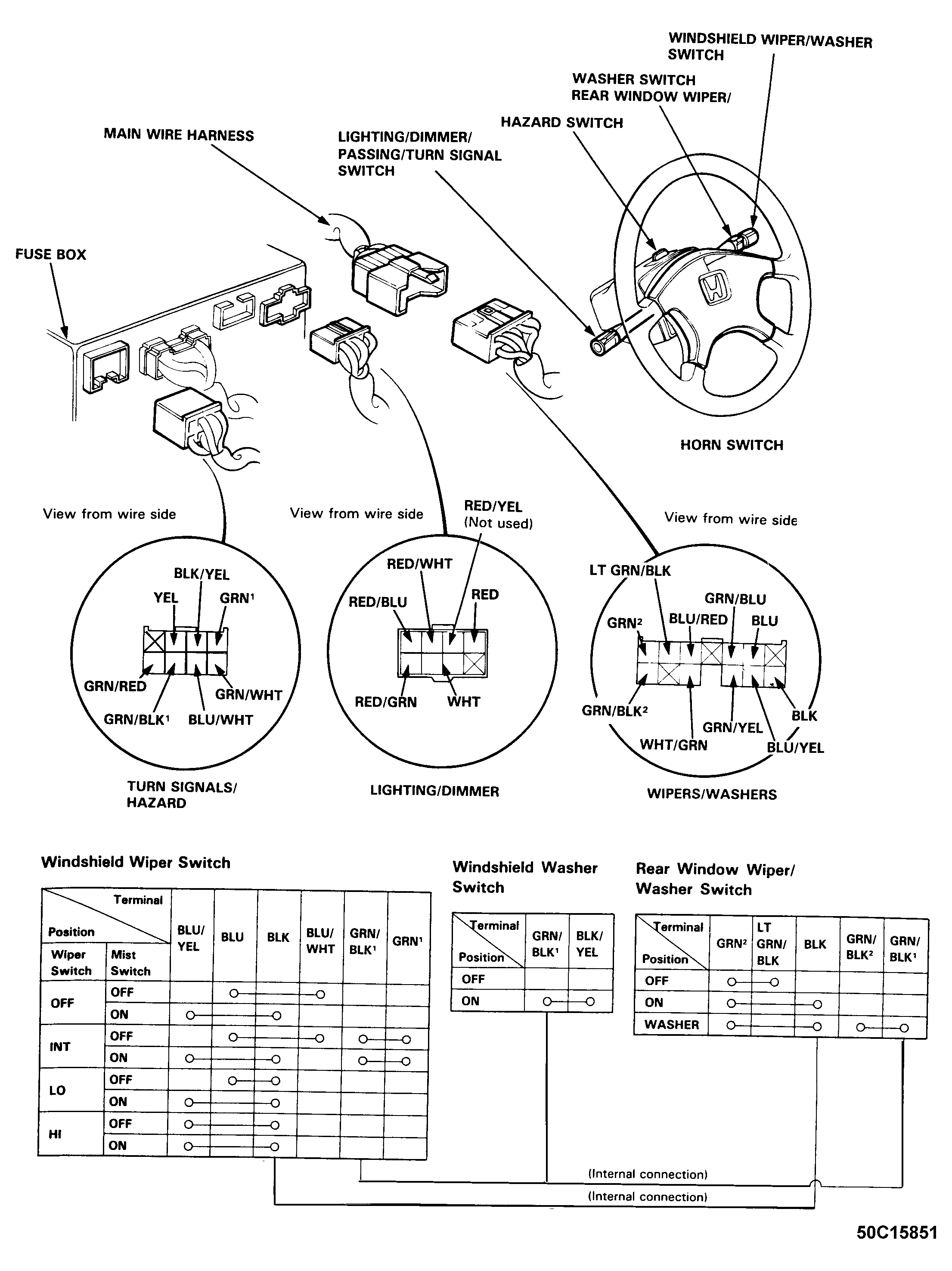

Fig 1: Wiper/Washer Switch Testing & Terminal Identification

Courtesy of AMERICAN HONDA MOTOR CO., INC.
