Passenger-Side Inflator Module: Removal

WARNING: This page is about a different car, the 1997 Geo Prizm. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, read air bag service precautions section. See SERVICE PRECAUTIONS  . Disable the SRS system. See DISABLING & ACTIVATING AIR BAG SYSTEM  .
  2. Passenger inflator module is located on right side of instrument panel. Remove 4 screws and 4 bolts retaining glove box to instrument panel. Remove 4 passenger inflator module-to-instrument panel bolts. Remove connector position assurance (CPA) clip and disconnect electrical connector. Remove inflator module from instrument panel. See Fig 1 .

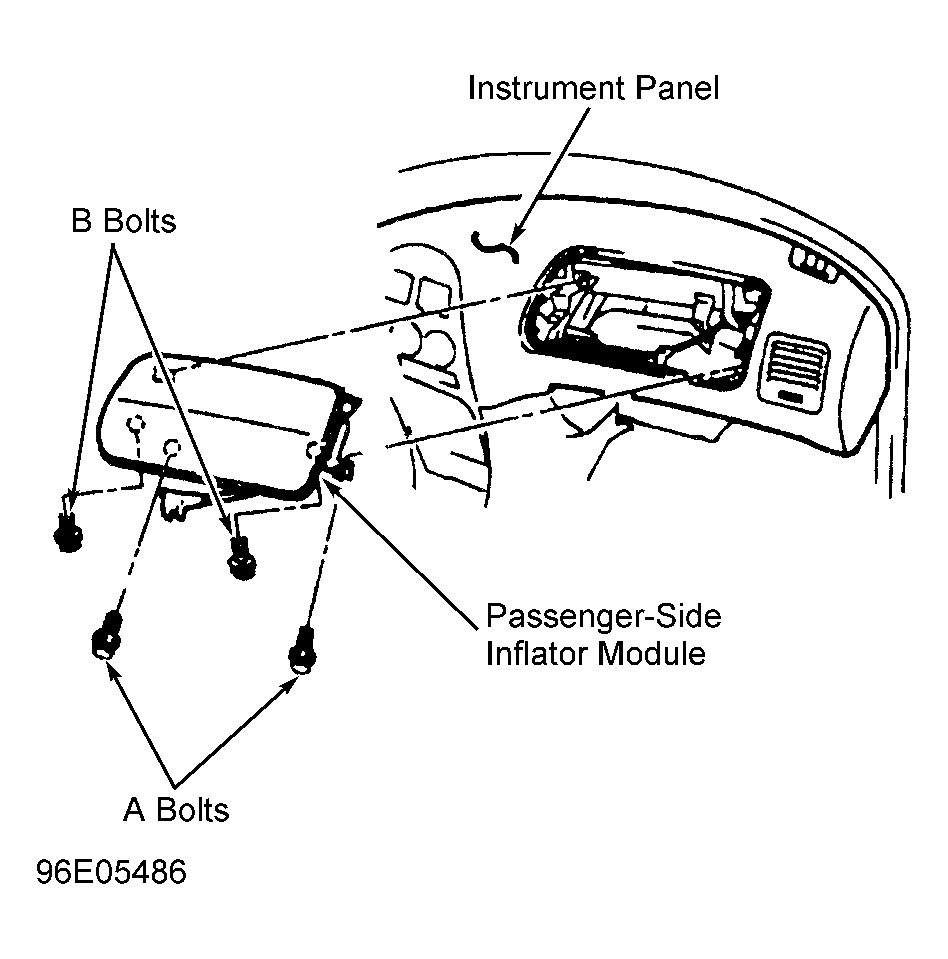

Fig 1: Removing Passenger-Side Inflator Module
G96E05486Courtesy of GENERAL MOTORS CORP.
