Intelligent Front-Lighting System: Removal

  1. Remove the headlamp.

    (Refer to Lighting System - "HEAD LAMP ")

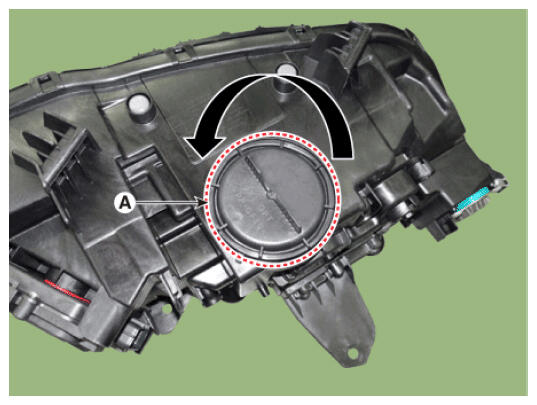

  2. Remove the IFS control unit cover (A).
    G16856191Courtesy of HYUNDAI MOTOR AMERICA

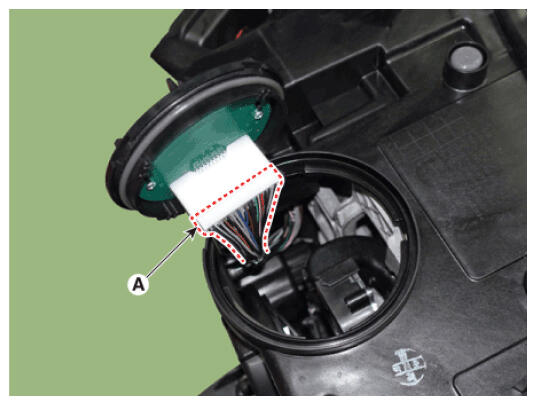

  3. Disconnect the IFS connector (A).
    G16856192Courtesy of HYUNDAI MOTOR AMERICA
