Home >> Genesis >> 2024 >> GV80 3.5T Advanced >> Repair and Diagnosis >> Engine Mechanical >> Intake And Exhaust System - 3.5L >> Surge Tank >> Components And Components Location >> Components

Components And Components Location: Components

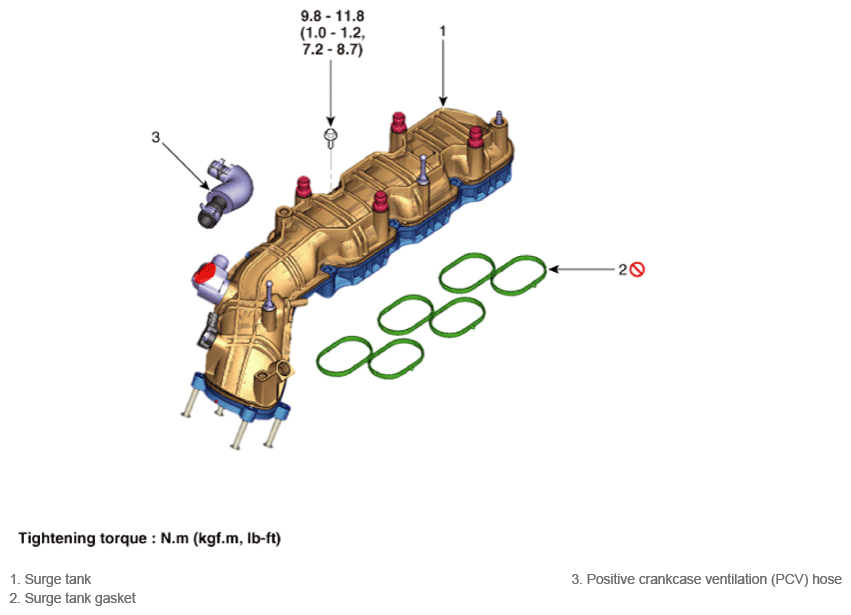

Fig 1: Surge Tank Components Location With Torque Specification

G16776464

Courtesy of HYUNDAI MOTOR AMERICA
