Components And Components Location: Components

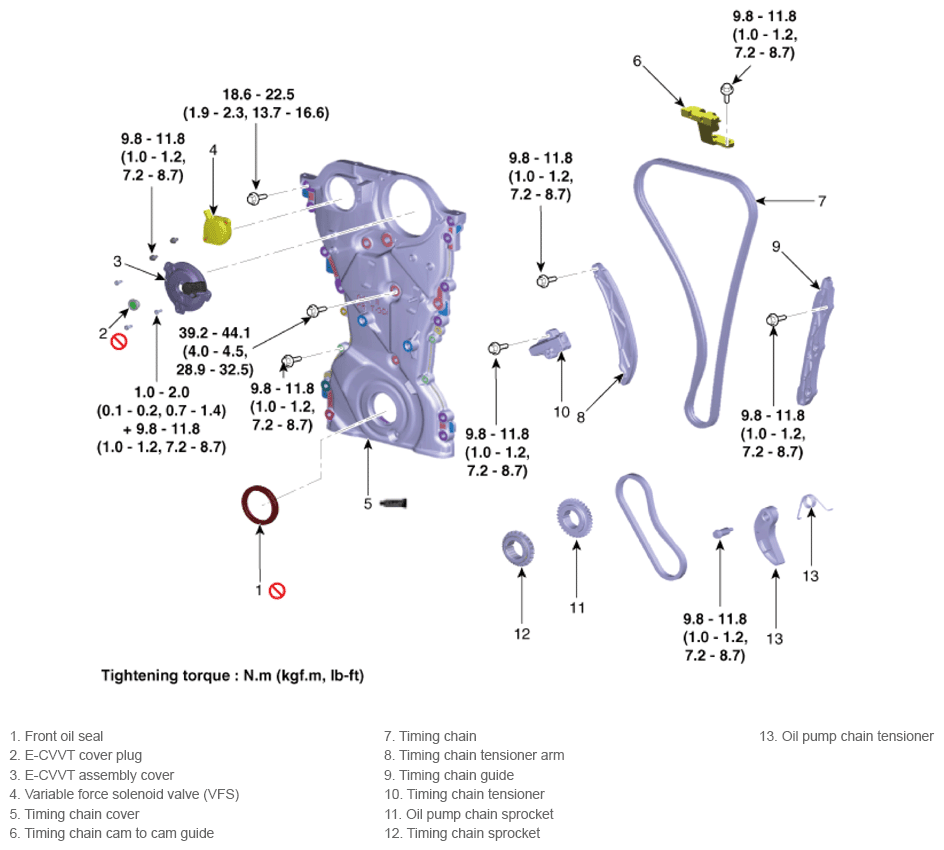

Fig 1: Timing System Components Location With Torque Specification

G16769198

Courtesy of HYUNDAI MOTOR AMERICA
